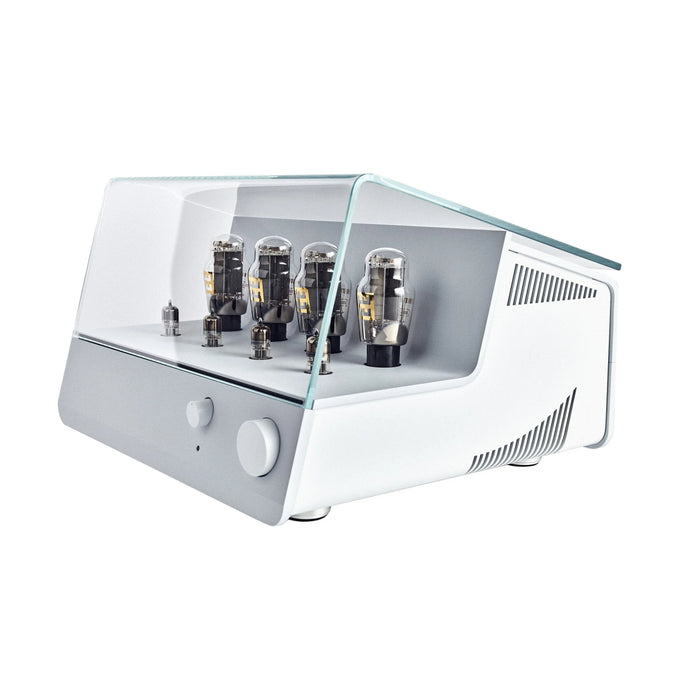

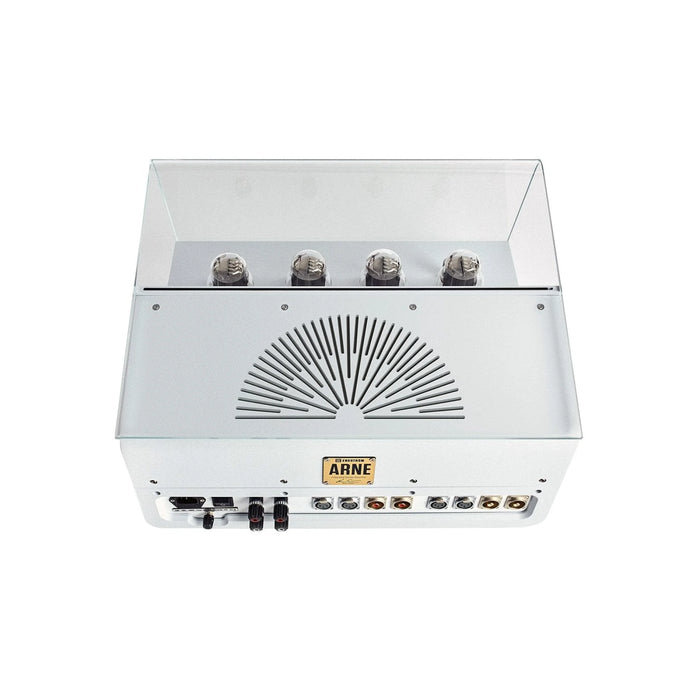

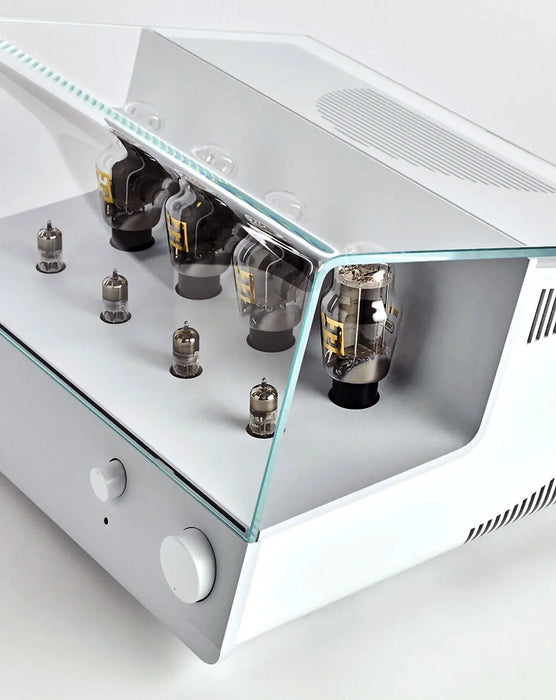

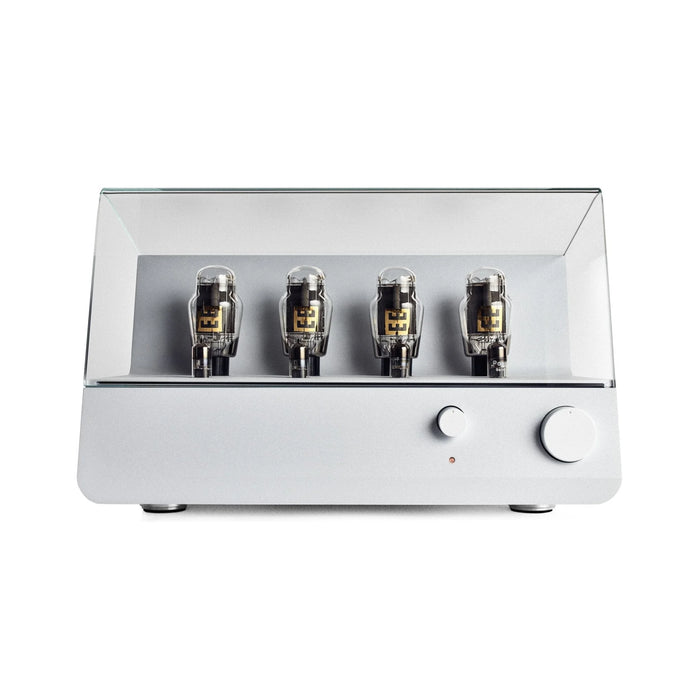

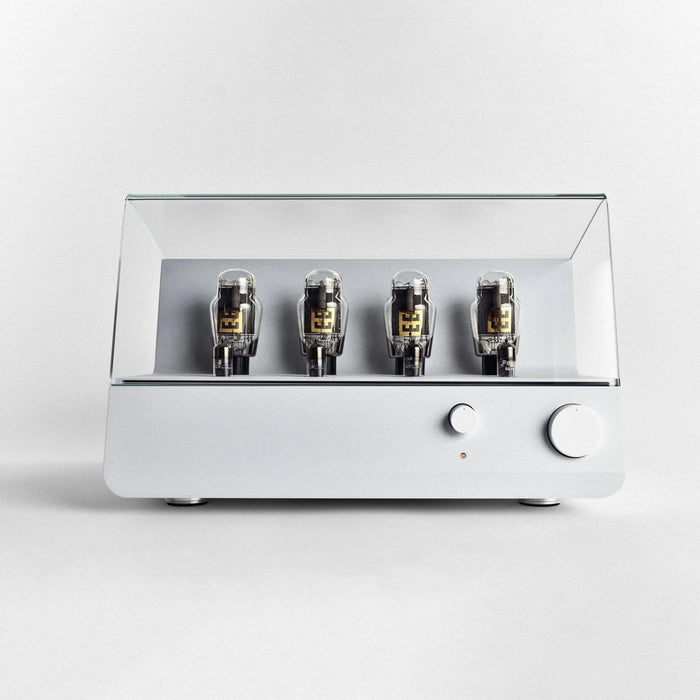

Engstrom ARNE Integrated Tube Amplifier
Taxes & Shipping Included
Named after a famous Swedish jazz musician and born out of a design process akin to a jazz band mentality, ARNE is a fully balanced 300B integrated stereo-amp. The outward design echoes the heritage of a typical integrated tube amp, but elevates it with our distinctive curves and clean surfaces. Four years of intensive R&D since its 2018 launch has seen it evolve into the ARNE Mk2 in production today. We offer a selection of the best 300B tubes on the market to complement its contemporary circuit design. It is available in a classic all-black or all-white finish, with a choice of clear or smoked glass.
ARNE delivers a staggering 30wpc with grip, speed and dynamics not always associated with common 300B amplifiers. A thick aluminum chassis and adjustable feet (with ceramic balls inside) root the amplifier firmly to the supporting surface.
ARNE uses DC coupling between driver and power tubes. The driver stage has symmetrical positive and negative power supply. The DC level on the output of the driver is then zero, making it possible to connect the driver stages directly to the grids of the power tubes which have individual cathode bias.
This unique way to connect driver stages to the power tubes has big headroom, giving low distortion. The symmetrical DC coupled drive of the power tubes also gives very fast transient response. The sound is powerful, fast and clear
Features
- Line-integrated tube amplifier
- 30W output power per channel
- Tube Complement: 4 × 7721/D3a, 4 × 300B
- Output Topology: Push-pull
- Made in Sweden
Specifications
- Power Output @1% THD+N, 1kHz 30W
- Amplification 20dB
- Harmonic Distortion 1% at 30W
- Frequency Response 10Hz to 40kHz +/- 1dB
- Gain 20dB
- Sensitivity 1V for 30W out @ 5Ω load
- Hum & Noise 90dB below full output voltage
- THD (BW 70kHz) 100Hz - 10kHz 20W less than 0.5%

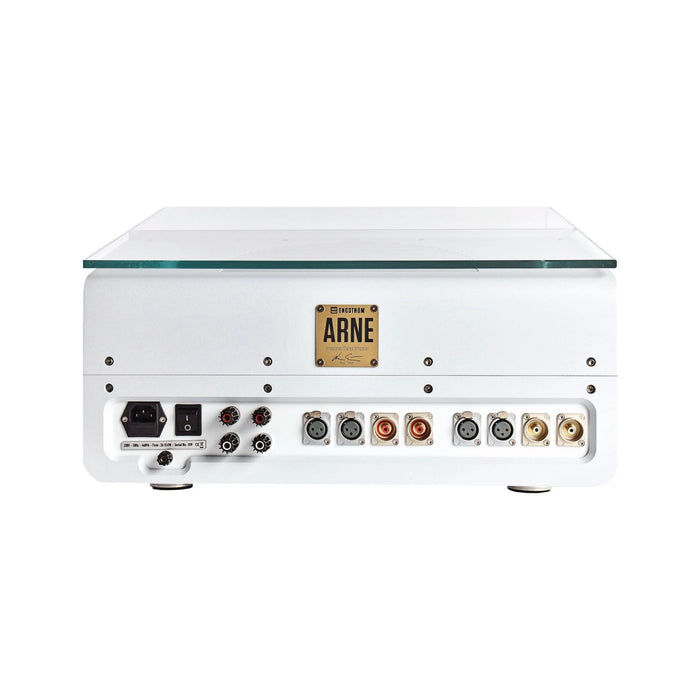

- Inputs 2 balanced XLR, 2 unbalanced RCA
- Input Impedance 12kΩ
- Output Impedance 5Ω
- Tubes 4 x 300B, 4 x D3a
- Mains Power 115V / 230V, 50Hz – 60Hz, 300VA
- Volume Control 48-step control w/ remote
- Dimensions 480 x 450 x 320mm
- Weight 38kg
About Engström
Founded by engineer Lars Engström and industrial designer Timo Engström in 2008, Engström is a small Swedish family company. We believe that music should be enjoyed through pure & natural sound. We think of our amplifiers as musical instruments, rather than tech gadgets.
