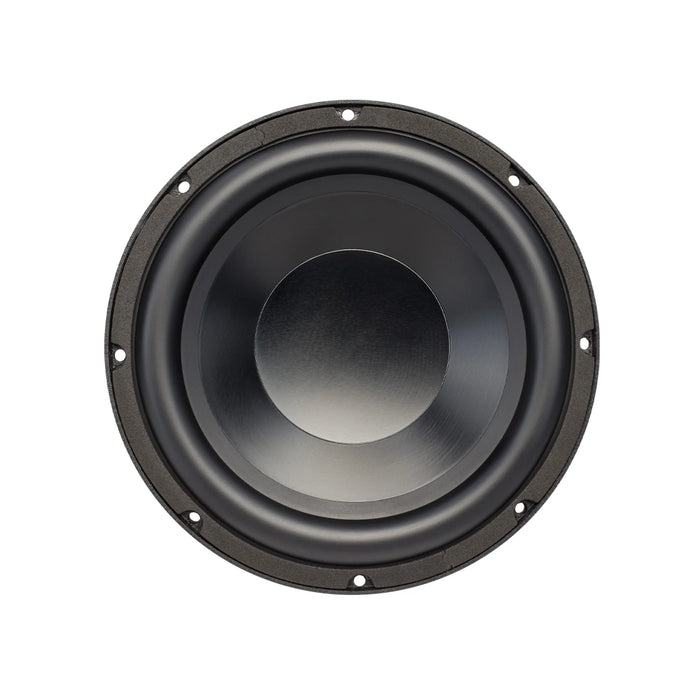

Emphaser ESW-M10 10inch Subwoofer
Taxes & Shipping Included
Bring your car audio to life with the EMPHASER ESW-M10! As part of the EMPHASER Monolith series, this powerful subwoofer delivers impressive sound quality and deep, rich bass. Transform your music into an immersive experience and feel every beat with the ESW-M10 at your disposal. Enhance your driving experience with the superior sound of the EMPHASER ESW-M10 - it's a must-have for any car audio enthusiast!
The ESW-M10 is an ultimate all-rounder that impresses with quality, power and sound. Whether installed in a compact closed box or in a high-level bass reflex cabinet - this 25 cm (10 inch) subwoofer from the EMPHASER Monolith series provides a powerful bass thunderstorm in any car, truck or motorhome.
The components of this bass speaker are specifically selected and optimally matched to each other. For example, the torsion-resistant, robust aluminum cone is perfect for detailed and dynamic reproduction due to its low weight and high rigidity.
The combination of aluminum diaphragm and powerful strontium ferrite double ring magnets is the basis for the good efficiency of this bass driver. In addition, a 4-layer voice coil made of copper wire, wound on a temperature-resistant polyimide carrier, which ensures a high electrical load capacity.
Other product highlights include the sturdy, efficiently vented die-cast aluminum basket, a butyl rubber surround designed for high excursion, the durable Connex centering spider and the solid pressure connection terminal.
Features
- 25 cm subwoofer
- Aluminum diaphragm
- Butyl rubber bead
- Connex centering spider
- Aluminum die casting basket
- Strontium Ferrite Double Magnet
- Polyimide voice coil former
- 4-layer copper wire voice coil
- Deep drawn pole plate hole
- Push terminals
Specifications
- Frequency response*: 25 - 100 Hz
- Rated power*: 200 W RMS
- Impedance: 4 Ohm
- Voice coil diameter: 2″ / 51 mm
- Voice coil winding height: 25.2 mm
- Mounting diameter: 238 mm
- Installation depth: 138 mm
