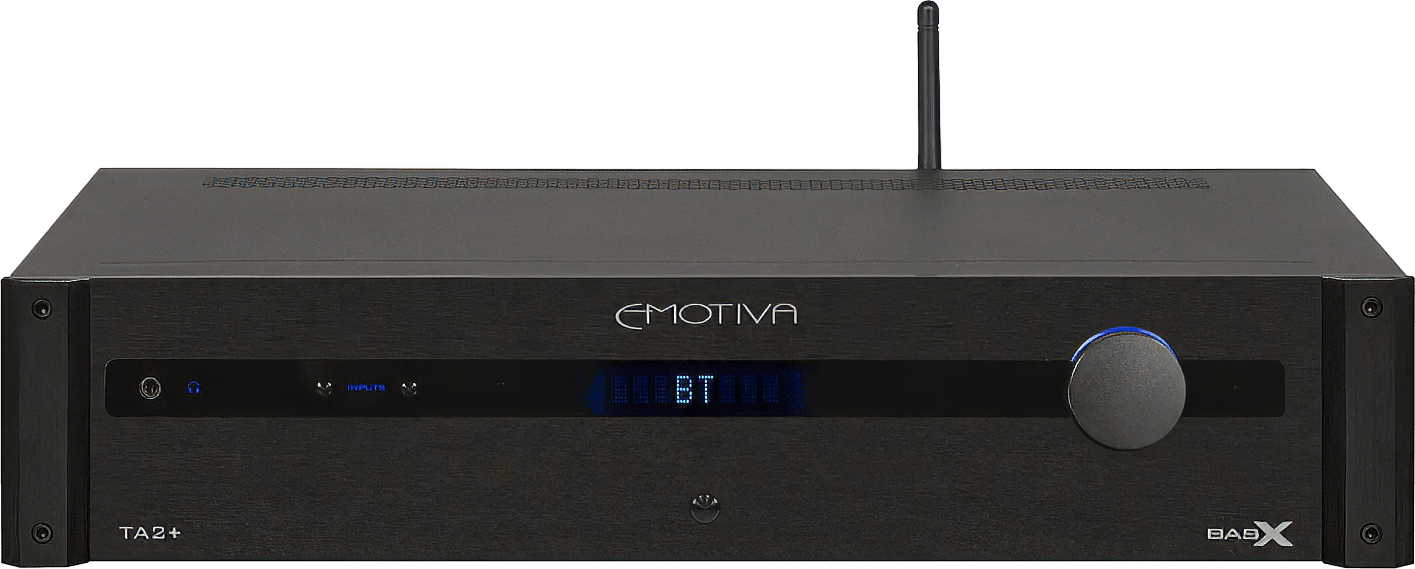

Emotiva BasX TA2+ Stereo Preamp/DAC/Tuner with Integrated Amplifier

The preamp is the heart of the system, this one just happens to have power built in. The BasX TA2+ stereo integrated amplifier with DAC and tuner is the control center of a serious two-channel or 2.1 system, combining a true analog preamp stage, high-current Class A/B power, and expanded balanced connectivity in one thoughtfully engineered chassis.

This new-generation TA2+ adds balanced XLR analog inputs and outputs, a balanced subwoofer output, HDMI ARC for seamless TV integration, USB-C for modern computers, and full analog bass management for precise 2.1 setup. That means quieter connections, better long-cable performance, smarter source integration, and tighter control over how your speakers and sub work together. Add a turntable with the built-in MM/MC phono preamp, stream over Bluetooth, or expand with an external amplifier later.

Common uses:

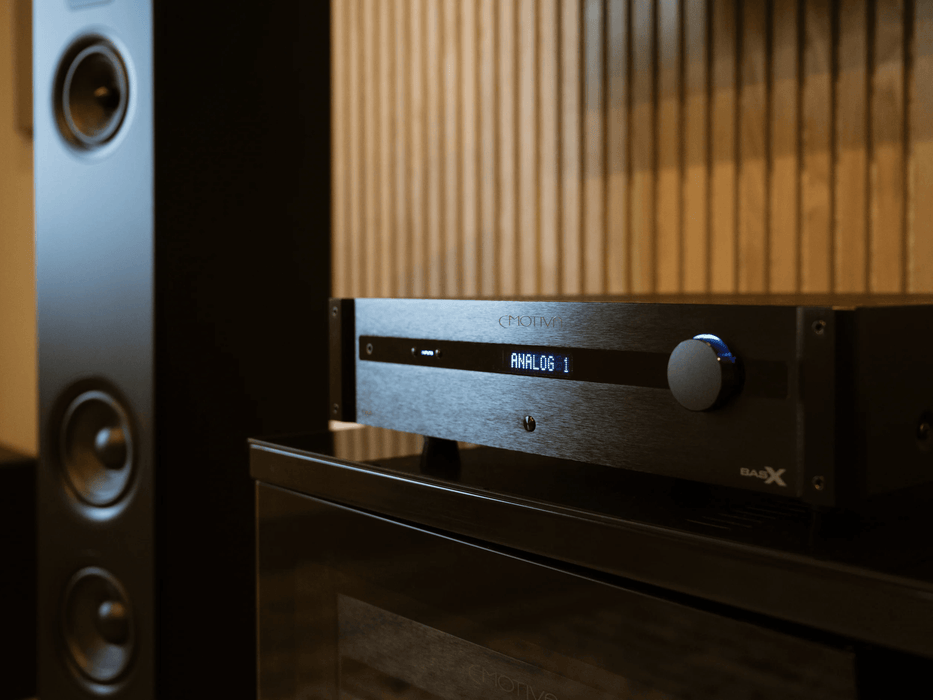

• Build a great-sounding two-channel or 2.1 living-room system
• Upgrade TV audio with HDMI ARC and real speaker power
• Run vinyl, streaming, and computer audio through one control center

Our BasX product line is dedicated to the philosophy that high-quality products that deliver true audiophile sound quality don’t need to be expensive to buy or complicated to configure and enjoy. Every model in the BasX product line offers all of the essential features you need to maximize your listening enjoyment.

The BasX TA2+ is a high performance stereo component that includes an internal stereo FM tuner, plenty of inputs for all of your other analog and digital sources, and a powerful internal audiophile quality Class A/B stereo amplifier. Simply connect a pair of high quality loudspeakers to the TA2+ for a great sounding stereo system, or use the internal Bass Management to add a powered subwoofer, and create an even more powerful 2.1 channel system.

Analog inputs include three pairs of stereo unbalanced line level inputs, and one pair of stereo balanced line level inputs, for sources like CD players, and a high performance phono preamp that supports both moving magnet and moving coil cartridges. Digital audio inputs, which are converted into analog by the high performance internal DAC in the TA2+, include a high-resolution asynchronous USB input, two Toslink optical S/PDIF inputs, one Coax electrical S/PDIF input, one HDMI-ARC input which can accept two-channel PCM audio directly from the ARC-enabled input on a TV, and a built-in AptX capable Bluetooth receiver.

The TA2+ can be controlled by the buttons and knob conveniently located on its front panel, or by the included high-quality, all metal, full function remote control. The intuitive menu system makes the TA2+ simple to configure and operate, and the large bright blue VFD display on the front panel is easy to read, and shows you exactly what’s going on at all times. You can simply connect the speaker outputs on the TA2+ to a pair of high-quality full range speakers, or utilize the built-in Bass Management to add a powered subwoofer, and a full set of balanced and unbalanced preamp outputs are included that can be used to connect the TA2+ to a separate power amp.

Of course, like every product in the BasX series, the BasX TA2+ includes one critical feature that you won’t find in most other components in its price range: really great sound. The BasX TA2+ is a true audiophile component, designed and built by audiophiles, to deliver the kind of great sound quality that both audiophiles and music lovers expect in a high-end audio system.

Features

• Class AB Amplifier with 135W x 2 @ 8Ohms with inbuilt Preamp, DAC, Tuner, Phono Pre and Headphone Out

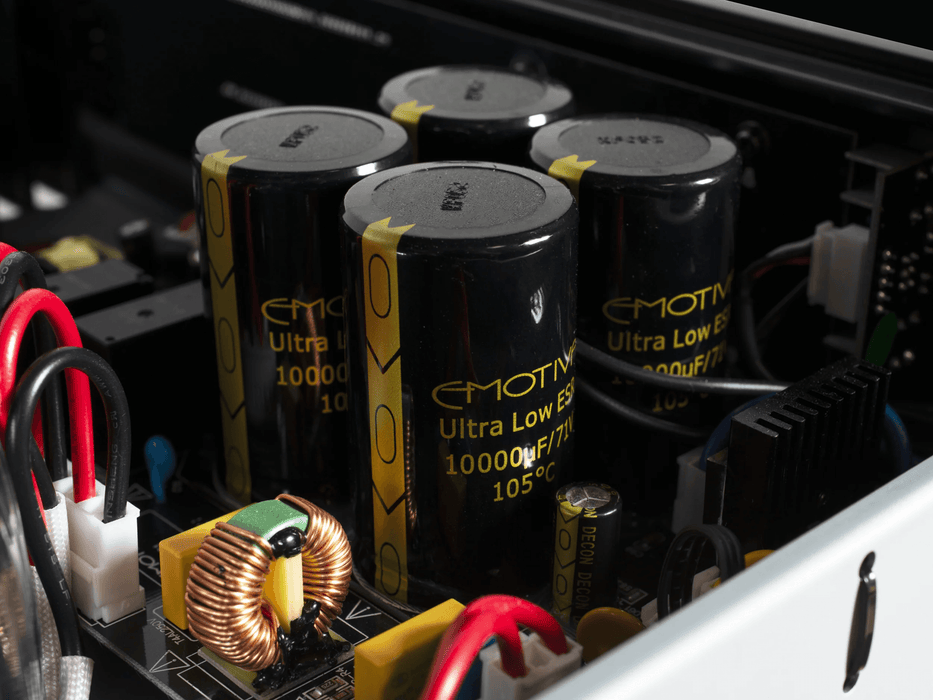

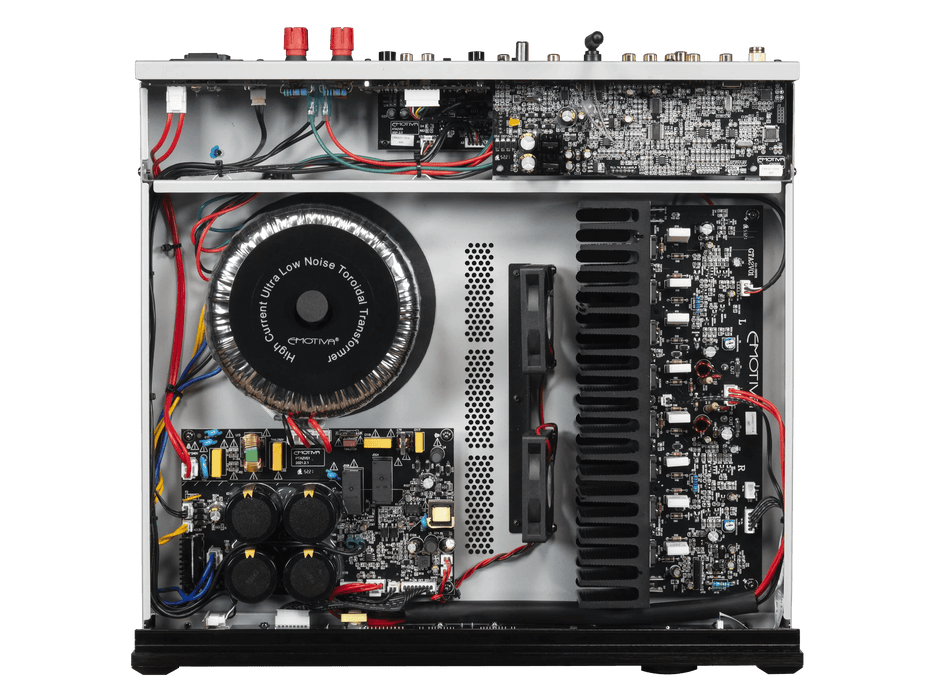

• Top quality parts and construction - Double sided FR4 circuit boards with plated through holes, SMD construction, and high quality parts throughout, ensure that your TA2+ will deliver years of reliable service.
• Highly optimized circuit layout – ensures the best possible sound quality, with low distortion, wide bandwidth, and a virtually silent noise floor.
• Sensitive FM tuner – features 15 station presets, and a Mono mode to help make even weak stations listenable.
• High performance phono preamp – The built-in phono preamp delivers excellent performance, and sounds superb, with both Moving Magnet and Moving Coil cartridges.
• Plenty of line level analog inputs for all of your analog sources – including both balanced (XLR) and unbalanced (RCA) line level inputs, an unbalanced Home Theater Bypass input, and a high performance Phono input that supports both moving magnet (MM) and moving coil (MC) cartridges.
• A full complement of digital inputs – including one 24/192k asynchronous USB input, one 24/192 Coax S/PDIF input, two optical Toslink S/PDIF inputs, one HDMI-ARC input, and a builtin Bluetooth receiver.
• Both balanced (XLR) and unbalanced (RCA) Preamp and Subwoofer outputs – ensure perfect compatibility with the widest possible range of external power amplifiers and powered subwoofers.
• Powerful audiophile quality Class A/B amplifier – The powerful audiophile quality Class A/B amplifier in the BasX TA2+ delivers 135 watts/channel into 8 Ohms, or 250 watts/channel into 4 Ohms, with vanishingly low distortion, flat frequency response, and an excellent S/N ratio.
• Pure analog signal path for analog inputs – Analog inputs on the BasX TA2+ follow a pure analog signal path and are never converted into the digital domain. All switching and Volume and Tone control is accomplished in the analog domain. Bass Management is also done purely in the analog domain.
• Home theater bypass – Relay controlled home theater bypass option allows you to route the left, right, and subwoofer channels from a second audio or home theater system directly to the both the internal amplifiers and the Preamp Outputs.
• Precision digital conversion – Digital inputs are routed through the legendary Analog Devices AD1955 24/192 DAC for conversion into the analog domain for accurate and great sounding digital audio performance.
• Bass, Treble, and Balance Controls – Bass and Treble controls provide a familiar way to adjust your system to sound just the way you like it. And our unique balance control simultaneously adjusts the levels of both channels so the overall sound level in your room remains constant.
• Large blue VFD display and flexible menu system – The large blue VFD display is easy to read, gives you all the information you need about how your TA2+ is configured, and can be fully dimmed for intimate listening. The flexible menu system offers easy access to all important features and makes menu navigation a breeze.
• Mute control – allows you to mute the audio output on your system, and then return precisely to your previous listening level, at the push of a knob or the click of a button.
• Separate headphone output with intelligent headphone level control – A separate, high current, direct coupled headphone amplifier provides a high quality signal to drive your favorite headphones for personal listening. The intelligent level feature independently remembers the levels you set for your headphones and your main outputs.
• Full analog Bass Management – featuring switchable active 12 dB/octave Linkwitz-Riley high-pass and low-pass filters, with independently adjustable frequencies.
• Subwoofer Output level trim – A separate level Trim that enables you to adjust the level of the Subwoofer Output relative to the main speaker output by +/- 10 dB.
• High-quality, all metal. full function remote control – lets you operate all of the controls on the TA2+ without getting out of your favorite listening seat. Quick access buttons allow you to quickly switch between the FM Tuner and your last used digital and analog inputs.
• Heavy steel 2RU chassis with milled aluminum face plate - provides strength and rugged good looks.

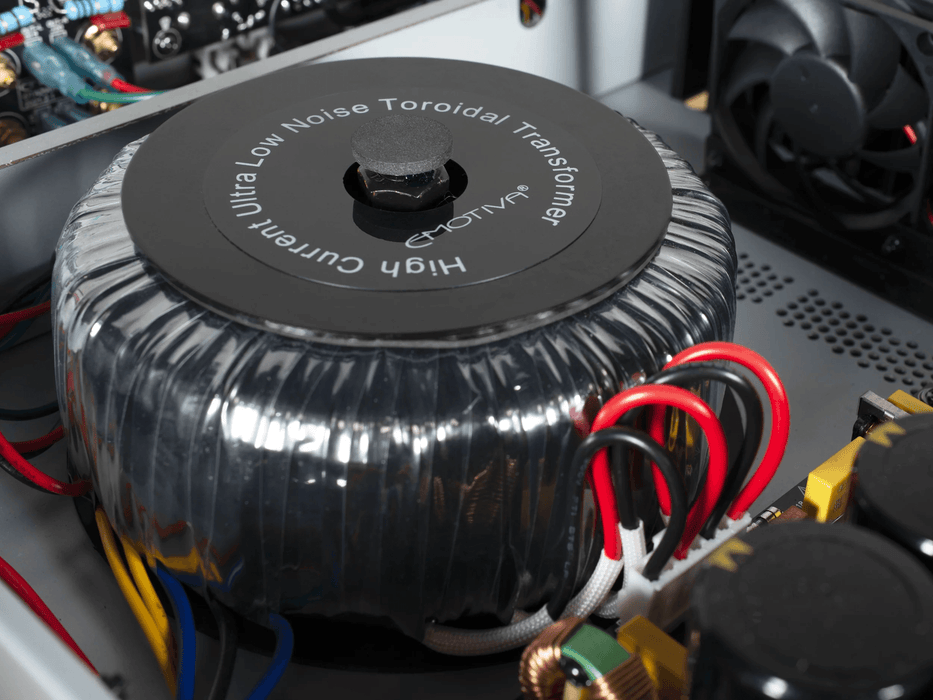

• Universal AC line voltage operation - The BasX TA-2+ has a powerful linear main power supply, which is designed to operate on either 115 VAC or 230 VAC at 50/60 Hz, and automatically detects and configures itself to operate with your local line voltage.

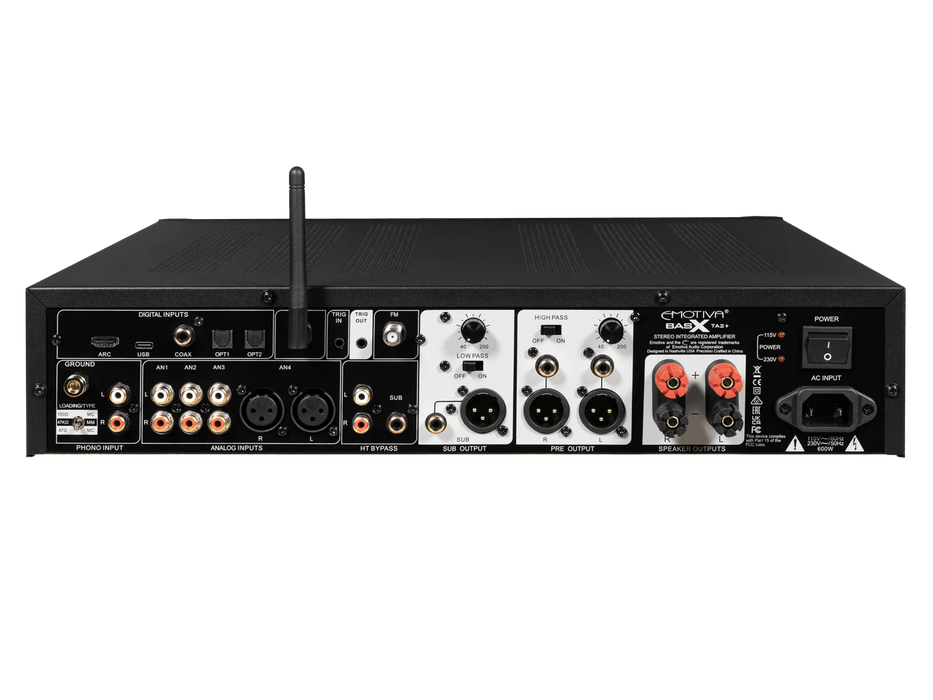

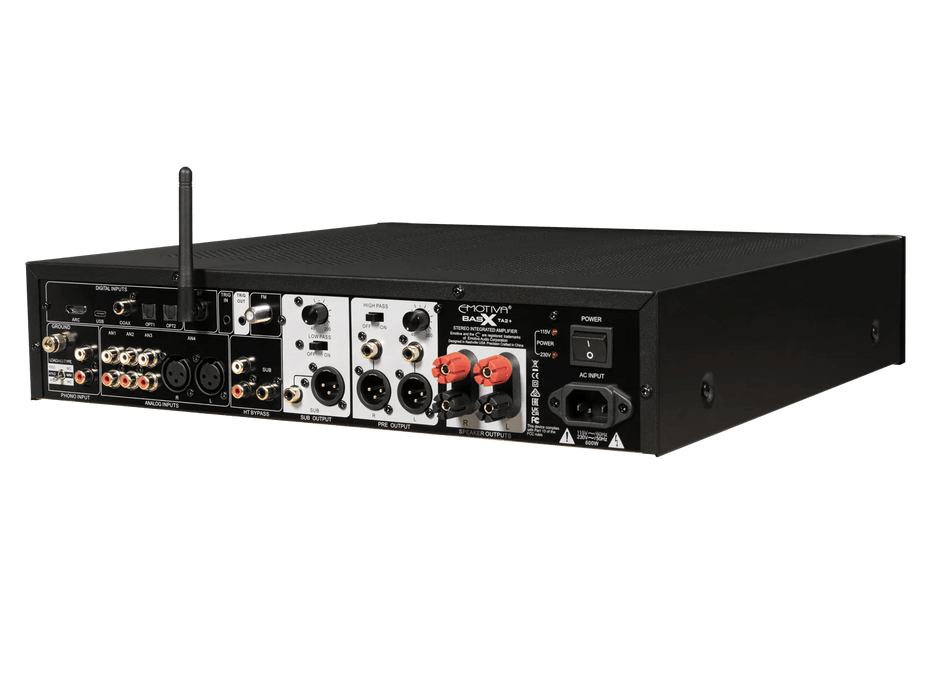

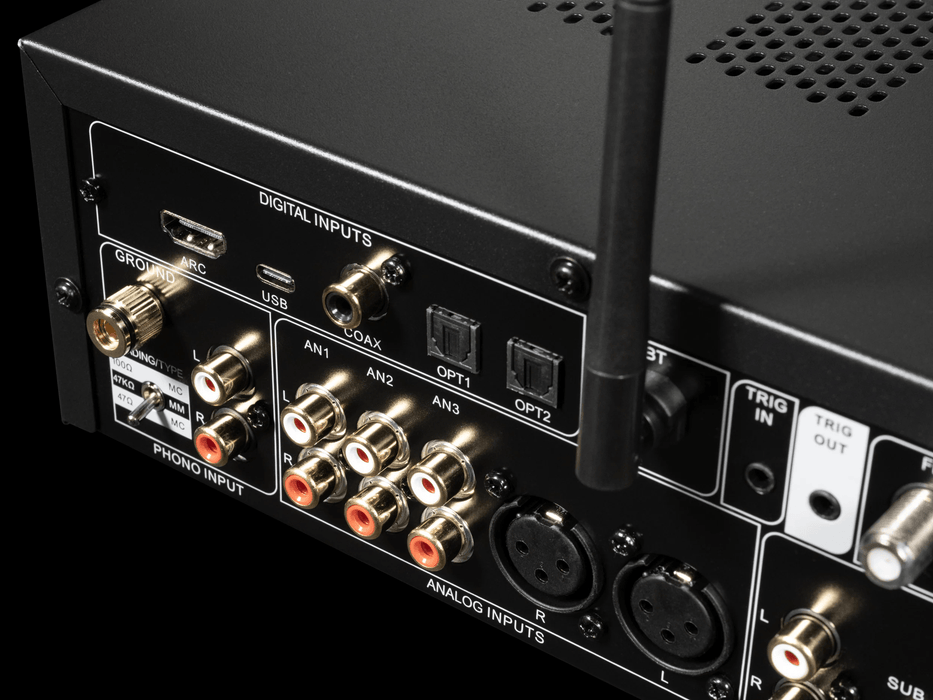

Analog Inputs

• 3 pairs – unbalanced (RCA) stereo analog line level inputs (Analog 1 thru Analog 3).
• 1 pair – balanced (XLR) stereo analog line level inputs (Bal).
• 1 pair – stereo phono inputs (switchable; moving magnet or moving coil).
• 1 tuner – FM (with external antenna input; 15 station presets).

Digital Inputs

• 1 - digital coax (S/PDIF); 24/192k.
• 2 - digital optical (Toslink); 24/192k.
• 1 - digital USB (DAC input); 24/192k.
• 1 - Bluetooth receiver up to 96k (Bluetooth 5, with AptX, AptX HD, and AAC support, antenna included).
• 1 - HDMI-ARC input; stereo (PCM 2.0)

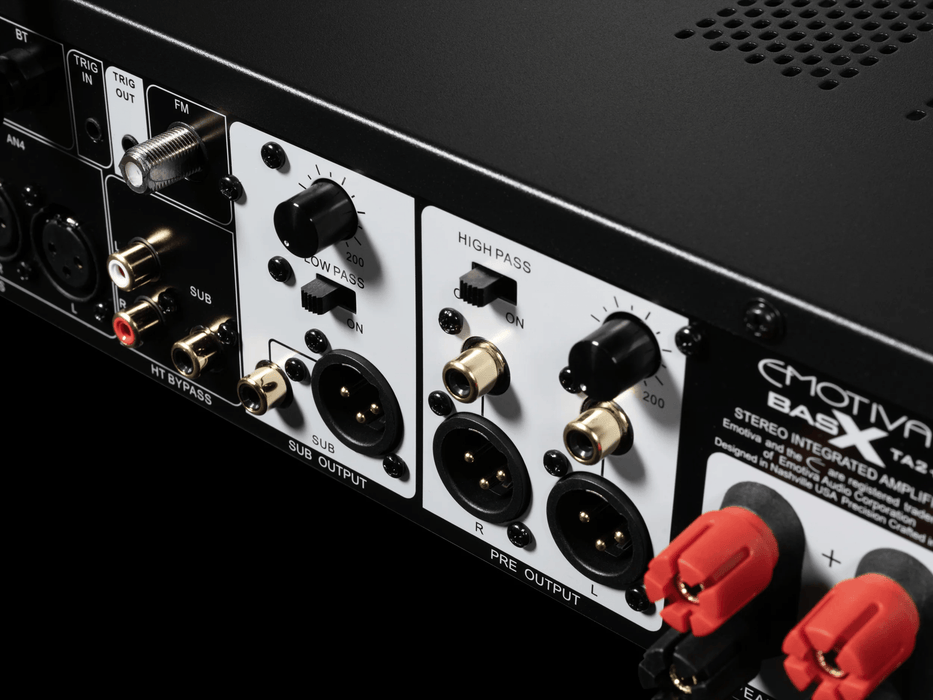

Preamp Outputs

• 1 pair – unbalanced (RCA) stereo line level Preamp Outputs.
• 1 pair – balanced (XLR) stereo line level Preamp Outputs. (Both outputs are fed by a switchable analog 12 dB/octave high-pass filter, whose cutoff frequency can be set to anywhere between 40 Hz and 200 Hz.)
• 1 – unbalanced (RCA) line level summed Subwoofer Output.
• 1 – balanced (XLR) line level summed Subwoofer Output. (Both outputs are fed by a switchable analog 12 dB/octave low-pass filter, whose cutoff frequency can be set to anywhere between 40 Hz and 200 Hz.)
• 1 – 1/8” (3.5mm) front panel stereo headphone output.

Speaker Outputs

• 1 pair - audiophile grade five way binding posts which accept banana plugs, spade lugs, or bare wires. To enable Bass Management on the Speaker Outputs, set the High Pass filter to On, and choose the filter cutoff frequency with the associated adjustment knob. These controls affect both the Preamp Outputs and the signal that is routed to the internal amplifiers in the TA2+ equally. Bass Management is implemented via analog 12 dB/octave high-pass filters, whose cutoffoff frequency can be set to anywhere between 40 Hz and 200 Hz.

Analog Performance (line level)

• Maximum output level (balanced and unbalanced outputs): 4 VRMS.
• Frequency response: 20 Hz to 50 kHz +/- 0.25 dB.
• THD+noise: < 0.005% (A-weighted).
• IMD: < 0.004% (SMPTE).
• S/N ratio: > 120 dB.
• Crosstalk: < 88 dB.

Analog Performance (phono)

• Frequency response (moving magnet and moving coil): 20 Hz to 20 kHz; ref standard RIAA curve.
• THD+noise: < 0.010% (moving magnet; A-weighted); < 0.04% (moving coil; A-weighted).
• Gain (ref unity gain on main inputs; at 1 kHz): 44 dB (moving magnet); 55 dB (moving coil)
• S/N ratio: > 78 dB (ref 5 mV; moving magnet); > 58 dB (ref 0.5 mV; moving coil).
• Load Impedance: 47 kOhms (moving magnet); 47 Ohms or 100 Ohms (moving coil)

Trigger Input and Output

• 1 - 12 VDC Trigger Output – delivers 12VDC trigger signal when unit is On.
• 1 - Trigger Input – accepts inputs between 5V and 12V AC or DC.

Digital Performance

• Frequency response: 20 Hz to 20 kHz +/- 0.1 dB (44k sample rate).
• Frequency response: 20 Hz to 80 kHz + 0 /- 1 dB (192k sample rate).
• THD+noise: < 0.003% (A-weighted; all sample rates).
• IMD: < 0.007% (SMPTE).
• S/N ratio: > 110 dB.

Amplifier Performance

• 135 watts RMS / channel; into 8 Ohms, both channels driven, 20 Hz - 20 kHz, THD < 0.02%.
• 250 watts RMS / channel; into 4 Ohms, both channels driven, at 1 kHz, THD < 1%.
• Minimum load impedance: 4 Ohms; Rated impedance: 8 Ohms.
• Frequency response: 20 Hz to 20 kHz +/- 0.15 dB; 5 Hz to 80 kHz +0 / -2.1 dB.
• S/N ratio: 116 dB.
• Gain: 29 dB.

Power Requirements

• The BasX TA2+ has a linear main power supply that accepts either 115 VAC or 230 VAC.

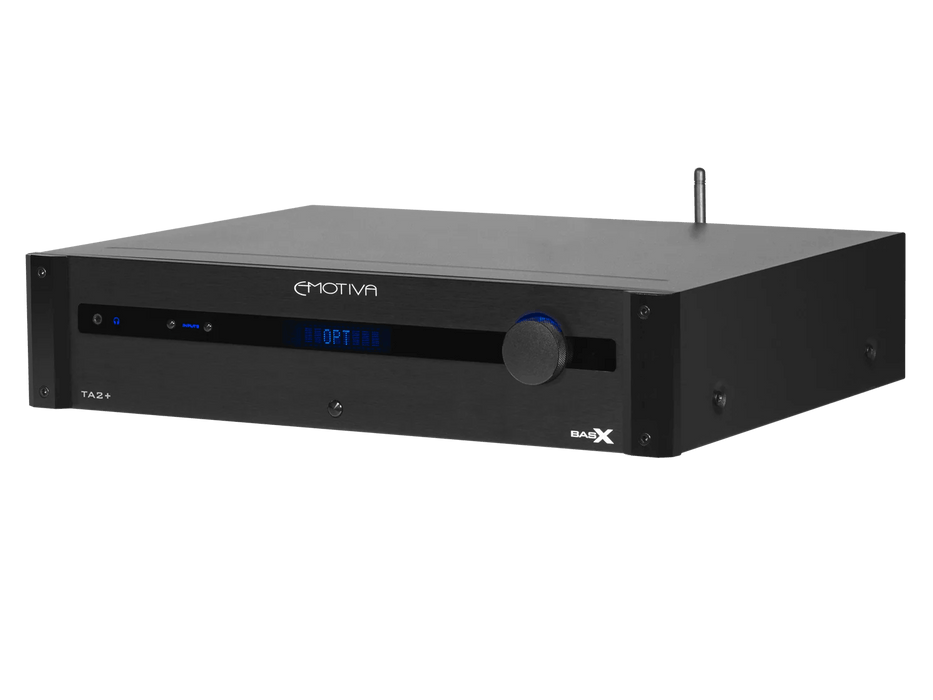

Controls and Indicators

• Power – rocker switch; rear panel.
• Standby – front panel push button.
• Two front panel push-buttons – Input Select; menu operation.

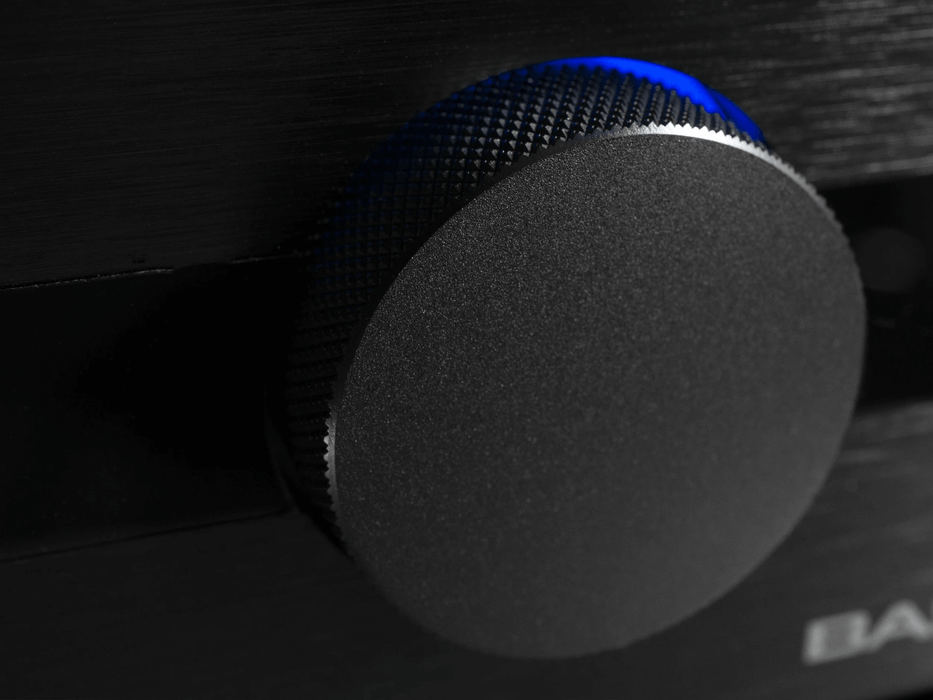

• Front panel digital encoder knob – Volume; Tuning; menu operation.
• VFD Display – high visibility blue alphanumeric VFD display (dimmable).
• LEDs – amber Standby LED; blue illuminated legend for Input buttons.

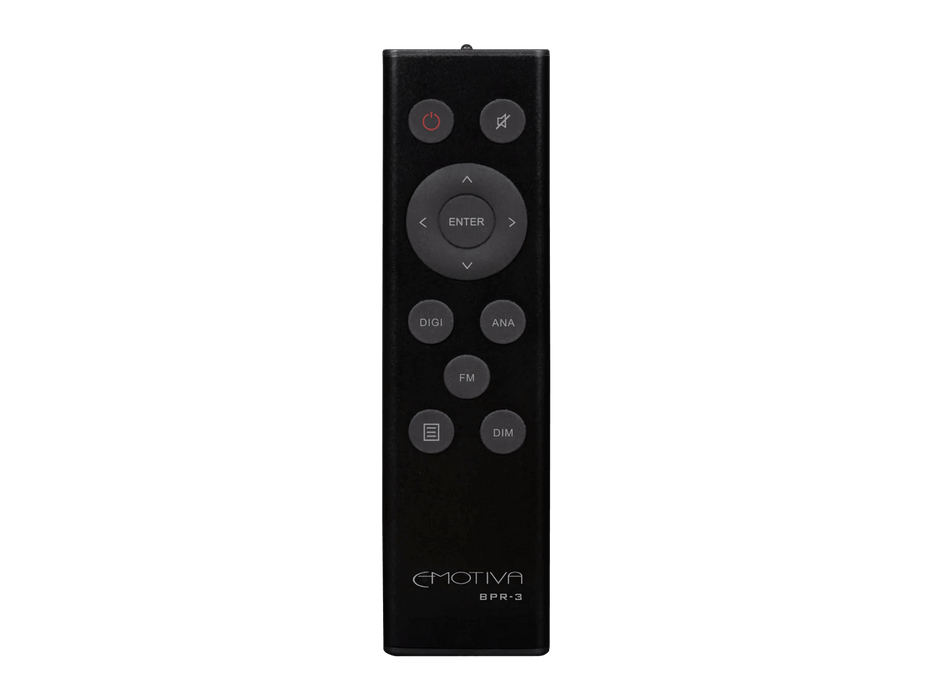

Remote Control

• Compact, all metal, full-function infrared remote control (which is powered by a single CR2025 button-cell battery).

Mechanical

• TA2+: 17” wide x 3-3/8” high (without feet) x 15-1/2” deep (without connectors).
• TA2+: 17” wide x 4” high (including feet) x 15-1/2” deep (without connectors).
• TA2+: 25 lbs (unboxed). Add 6 lbs for boxed weight.
