Emotiva Airmotiv XC1 Center Speaker
Taxes & Shipping Included

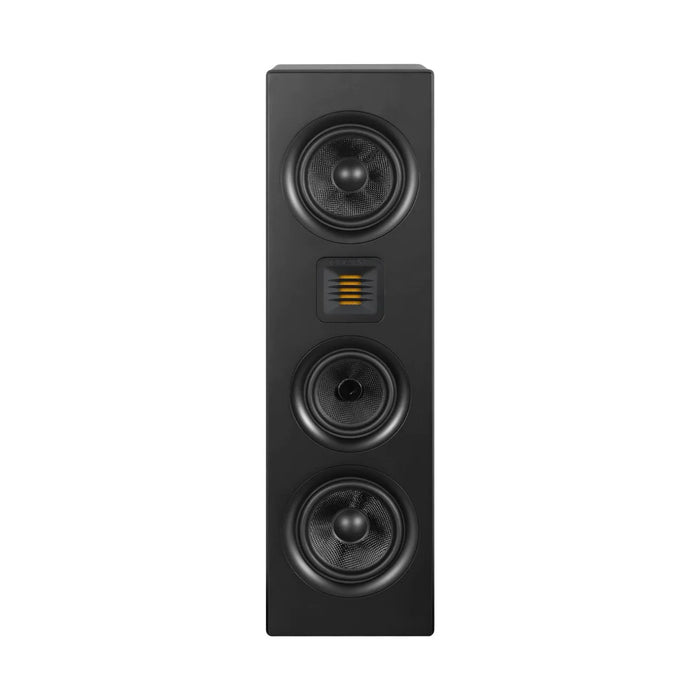

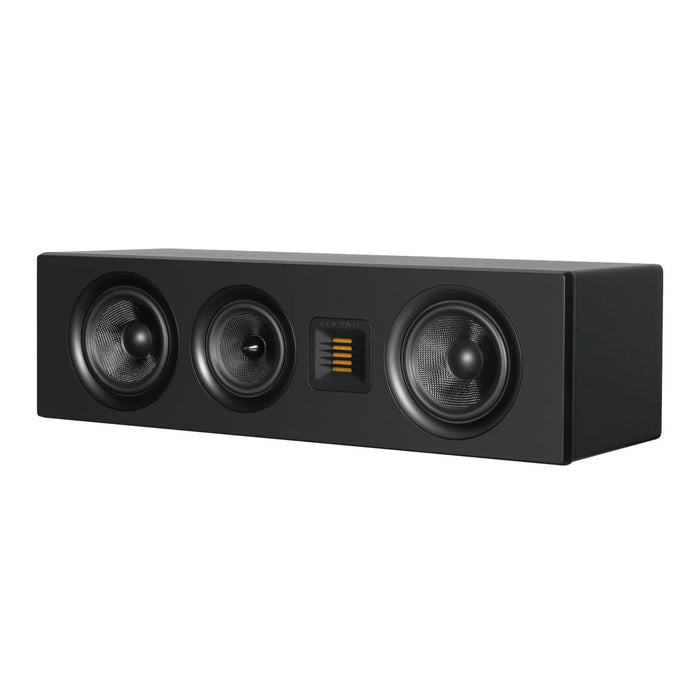

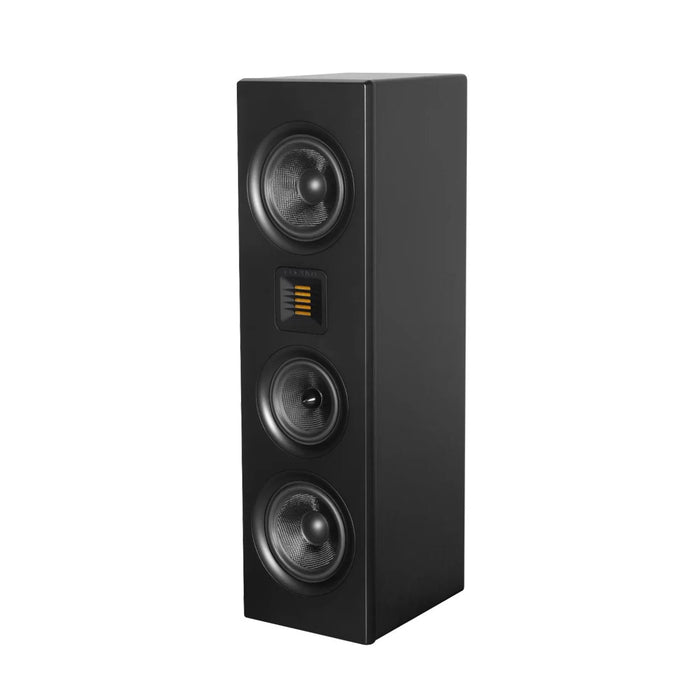

The Emotiva Airmotiv XC1: A Compact Yet Powerful Three-Way Center Channel Speaker. It features a 25mm x 32mm folded ribbon tweeter, a 4.5” woven fiber midrange, and dual 5.25” woofers, making it an ideal centerpiece for any high-performance home theater. Its compact design perfectly matches all Airmotiv speakers, ensuring it's the go-to choice for quality sound in smaller spaces. The XC1's versatile design allows for vertical placement or as part of an L-C-R speaker set, with a rotatable tweeter for optimal sound in any setup.
Introducing the Airmotiv X Loudspeakers - a blend of our best of product design and high performance. These speakers are crafted for the ultimate audio goal: to convey the full sound spectrum with minimal distortion to bring out the best in any audio, from classical tunes, to rock anthems, and even blockbuster movies.
Transforming a basic electrical signal into a rich musical experience, your loudspeakers are crucial in any audio setup. They are the heart of music's emotional impact. Quality speakers don't just play sound; they create an immersive listening adventure.
Whether you're an audiophile with a stereo system or seeking a top-tier home theater experience, Airmotiv X fits perfectly. We've meticulously merged superior technical prowess, exceptional sound clarity, stylish design, and value in Airmotiv X to create our best speakers yet.
Our new Airmotiv X loudspeakers feature a new modern design aesthetic. The cabinets on the towers are slender and graceful. The front panels feature a very gentle edge bevel, which is attractive and helps reduce diffraction. The magnetically attached grills, with their rounded corner details finish the presentation. In addition to the elegant satin lacquer finish on the front panels, we’ve added smooth trim rings that conceal the driver mounting hardware and help control diffraction, while giving the new Airmotiv X loudspeakers a more sophisticated and finished appearance.
The new Airmotiv X loudspeakers also feature new and improved touches taking them to a higher level than ever before for Airmotiv. All of the new Airmotiv X Loudspeakers feature a rotatable folded ribbon tweeter with improved waveguide allowing the user to configure the speaker to fit their specific system layout. The towers are structurally reinforced with internal window bracing and lined with thick Dacron for optimal sound dampening. Every speaker includes an internal-mounted crossover and efficient wire routing, ensuring both efficient performance and serviceability. The robust, over-one-inch thick multi-layer front panel enhances rigidity. The driver layout is optimized for superior sound quality, complemented by non-parallel midrange walls to reduce internal reflections, delivering an exceptional acoustic experience.
Features
- 3-Way Center or LCR loudspeaker

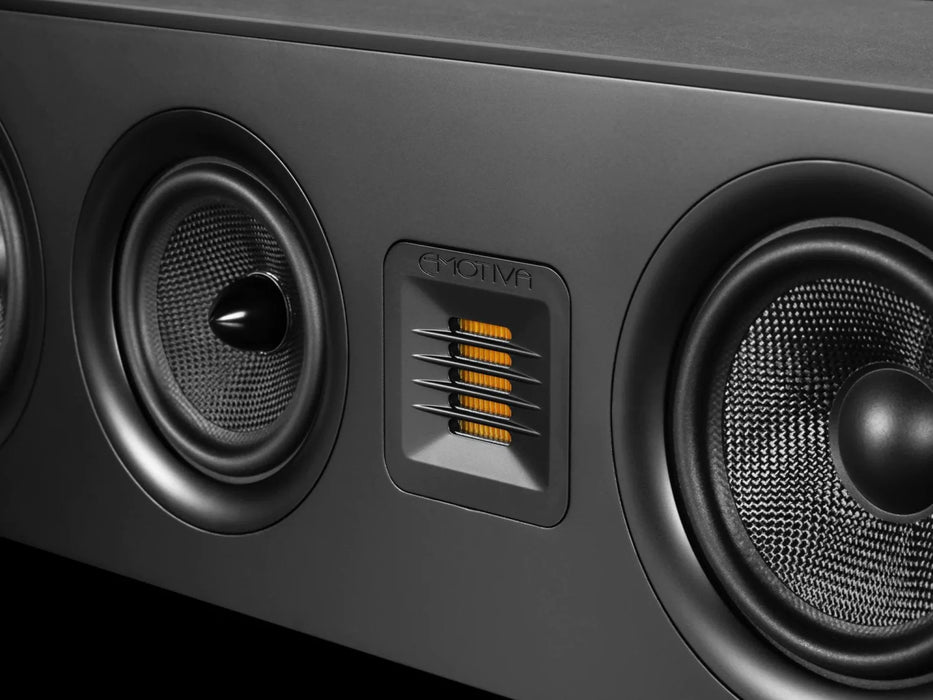

- Airmotiv folded Ribbon Tweeter with Neo magnet system
- 4.5” woven cone Midrange
- 2 x 5.25” woven cone Woofers

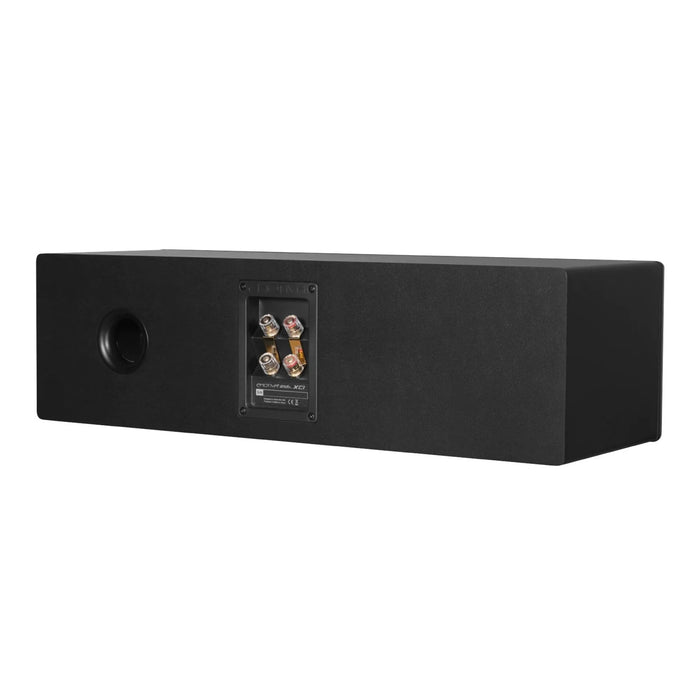

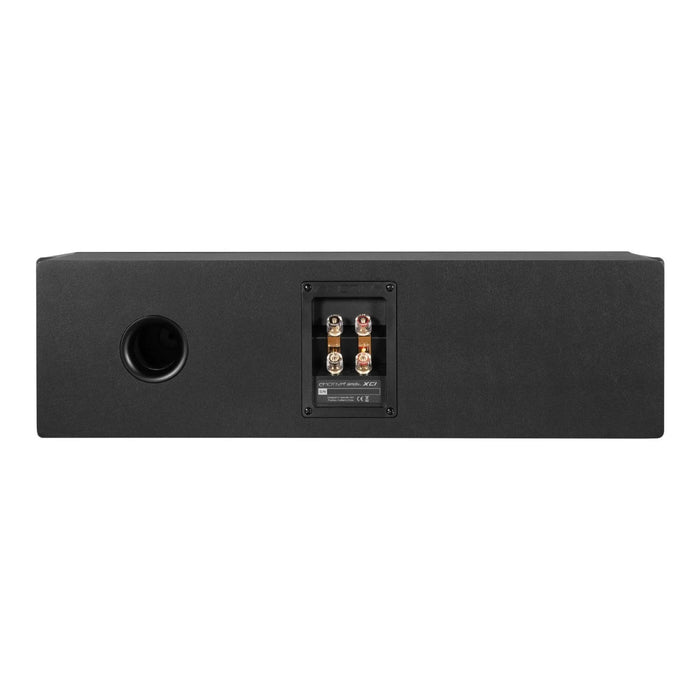

- Dual 5-way speaker terminals for bi-amping or bi-wiring
Specifications
- Configuration: Three-way center channel loudspeaker. Painted HDF baffle, PVC laminated HDF enclosure. 25mm baffle, double window braced, extensively damped, with asymmetric midrange sub-enclosure
- Cabinet tuning: Rear ported
Driver Compliment
- High frequency driver: 1ea. - 25mm x 32mm Airmotiv folded ribbon tweeter with Neo magnet system

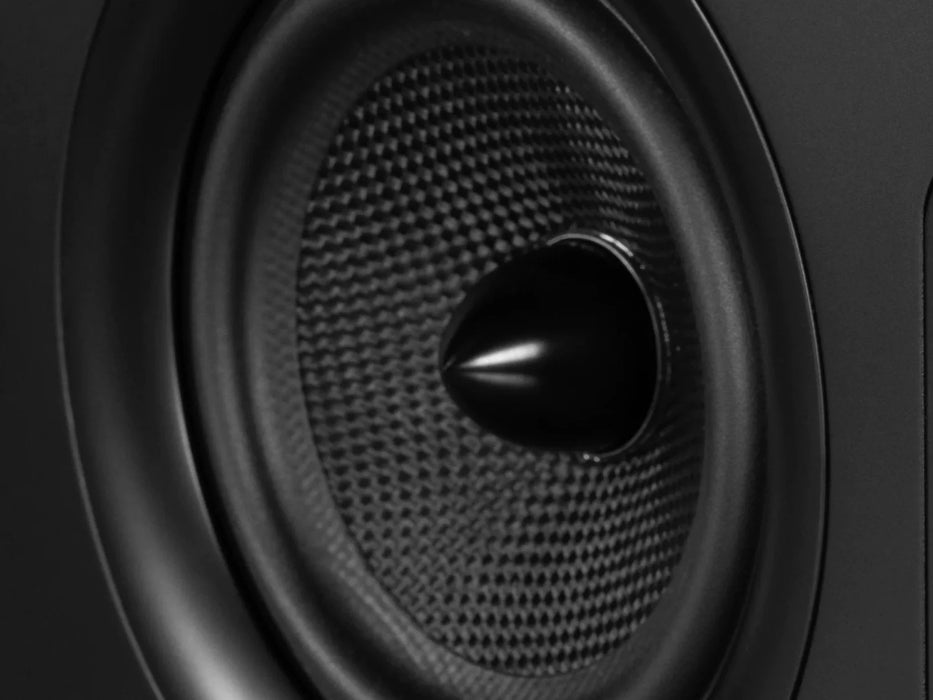

- Midrange driver: 1 ea. - 4.5” woven cone diaphragm, aluminum voice coil, milled aluminum phase plug, copper shorting ring, and NBR surround
- Low frequency driver: 2 ea. 5.25” woven cone diaphragm, aluminum voice coil, long throw motor, progressive rate spider, copper shorting ring, and NBR surround
Electrical Specifications
- Efficiency: 88 dB (2.83V/1m)
- Power handling: 120W continuous / 250W peak
- Recommended amplifier power: 60W or more
- Nominal impedance: 4-ohms, safe with amplifiers rated for 8-ohm loads
- Frequency response: 50 Hz – 27 kHz (+3/-3 dB)
- Crossover Freq: midrange/tweeter - 3.1 kHz
- Crossover Freq: woofer/midrange - 620 Hz
- Dual 5-way speaker terminals for bi-amping or bi-wiring
Mechanical
- Dimensions: 7.5” high x 26” wide x 9.5” deep - Add 0.25” for grill (unboxed)
- 31" x 14" x 13" (boxed)
- Weight: 25 pounds (unboxed)
- 32 pounds (boxed)
- Mounting: Shelf or stand mounted

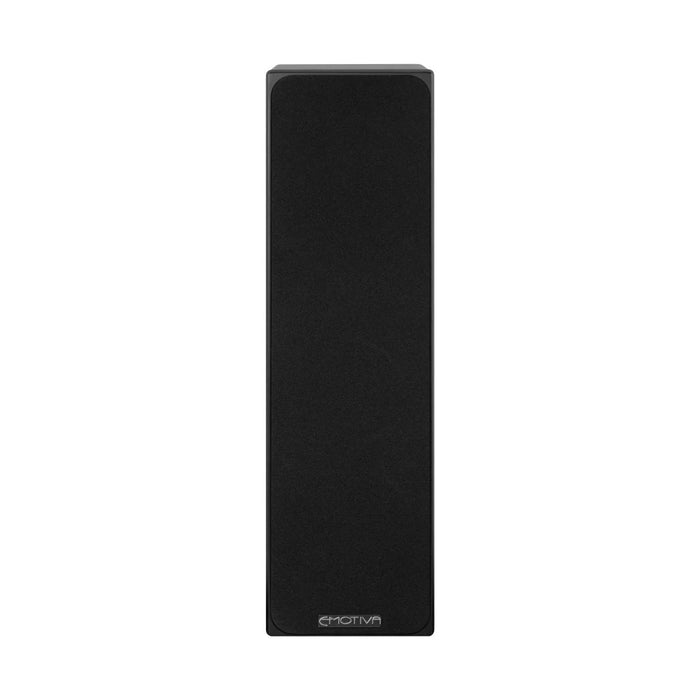

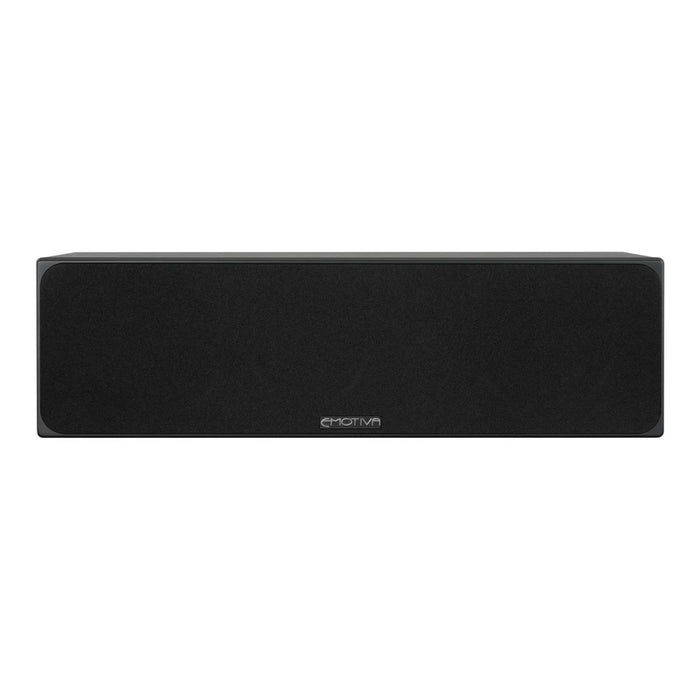

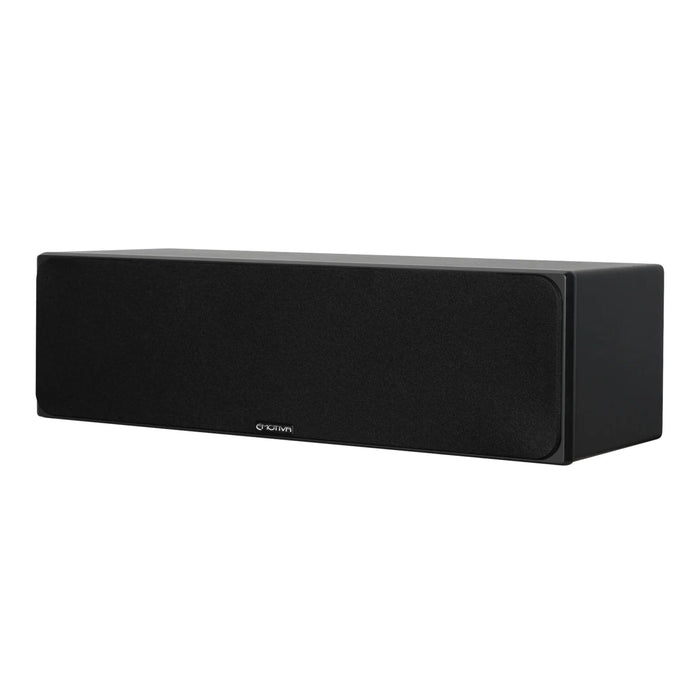

- Grille: Black cloth over a rigid frame; attaches securely with powerful magnets for easy removal

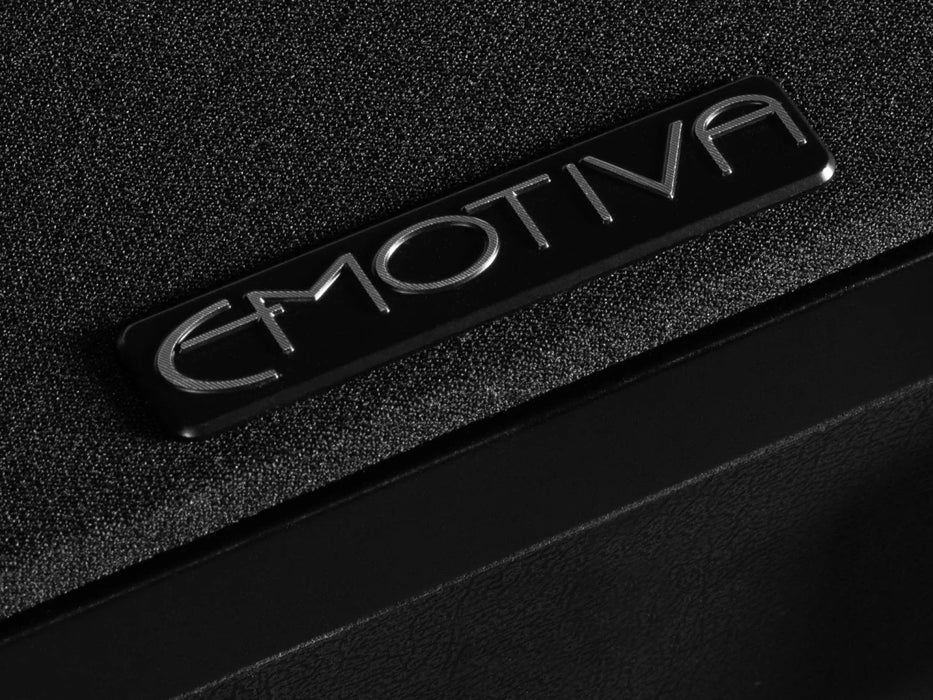

- Badge can be mounted to match speaker orientation
