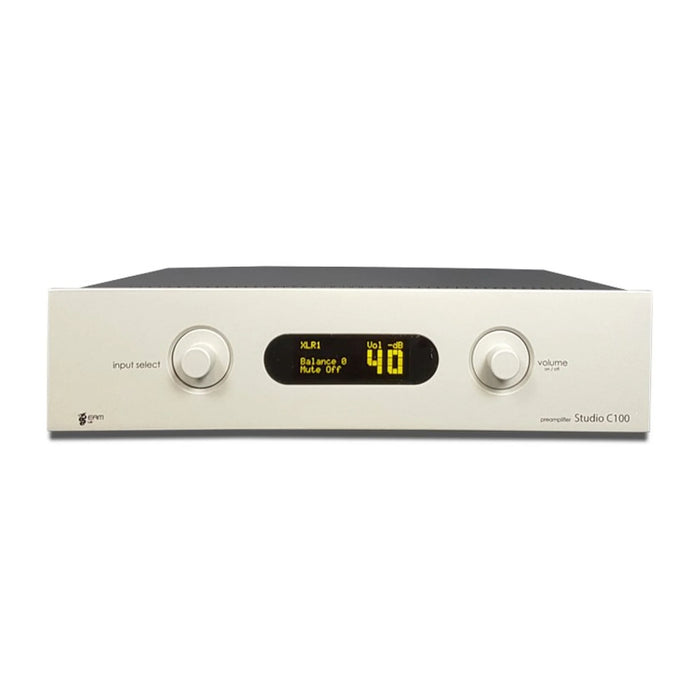

EAM Lab Studio C100 Stereo Preamplifier

by EAM Lab
Rs. 145,000.00

The STUDIO C100 preamp is designed for performance by bringing you direct music from the source in the most realistic, colorless and truthful way we know. This preamp is packed with features to give you ultimate control over all audio and video sources on your system. With 4 line inputs and a balanced XLR input, a fully discrete output stage operating in class A and a direct output for Audio / video processors (for home theater), you can rest assured that this preamp will plug and play in your system.

In this new and improved version of our long-lasting C100 preamp they have been sonically upgraded with instrumentation and higher-level components such as Element and Reference, resulting in better resolution, greater harmonic richness and with the speed and dynamics that have become the hallmark of the EamLab family sound

In the STUDIO C100 preamp we have developed the renowned HDCA technology with our most advanced amplifier circuits to date. Utilizing the recent revolutionary understanding in the behavior of high-speed transistors, Eamlab's unique new designs address historical limitations in the linearity of amplifier stages by conceiving products with low distortion at previously unattainable levels. These devices and a new family of bespoke passive components are used in the new generation of high-speed, extended bandwidth input stage achieving unprecedented performance

Built with balanced circuitry from input to output, each channel is powered separately and all power supplies are stabilized and optimally filtered.

The engineering of PCBs in SMD technology allows a high rejection to vibrations induced by external causes with a notable reduction of the sound "microphonics". The result is greater detail and focus of the scene and instruments.
The transformers are also resin coated to minimize magnetic induction in the delicate amplification circuits to the advantage of sound contrast and the reduction of background noise.

In our approach to the native balanced philosophy, the single-ended signals of the RCA inputs are also internally converted. The special HDCA sections serve this delicate task by increasing the dynamic crest factor by almost 3 db compared to traditional preamps that do not use this circuit approach. The volume adjustment is entrusted to a digital section that controls two chips (one per channel as proof of the dual mono philosophy) armored in a ceramic container where inside there is an array of resistors that allow the variation of the signal amplitude. the input and output signal remains in fact always analog and only the sweeper control is controlled in the digital domain

With this technology we have eliminated forever those annoying rubbing rustles present in every traditional potentiometer to the advantage of the accuracy of the signal amplitude without disturbances while remaining immune and constant over time.


Features

  • Discrete solid state preamplifier
  • Native Balanced Circuit
  • Volume control in the digital domain
  • EamLab transformers
  • HDCA input / output modules
  • Very low output resistance
  • GAIN selectable
  • Made in Italy

Specifications

  • 1 pair XLR input (XLR 1)
  • 4 pair line input via RCA (CD / MM / TUNER / AUX1)
  • 1 pair XLR BALANCED output
  • 1 pair RCA Single-ended output
  • 1 pair RCA direct / Tape output
  • THD + N Balanced Output: <0.003%, 20 Hz to 20 kHz, @ 4 Vrms
  • Input impedance / Vrms 47Kohm XLR / 4 Vrms max 22Kohm RCA / 2.8 Vrms max
  • Setting input GAIN 0 db / +10 db / + 20 db - 10 db / -20 db / -26 db
  • Voltage Output XLR: max 10 Vrms, RCA: max 5 Vrms
  • Signal to noise ratio > 110 db "A" weighted
  • Frequency response 5 Hz to 120 Khz + / - 0.5db
  • Dimensions 420 * 330 * 85 mm - Weight 10 Kg
