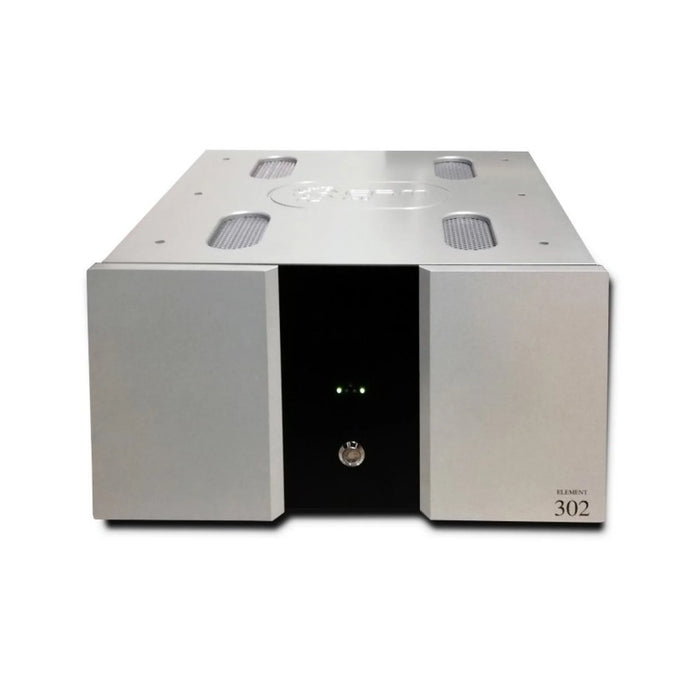

EAM Lab Element 302 Stereo Power Amplifier

by EAM Lab
Rs. 530,000.00

High power combined with a disarming musical quality are the first impressions you have when listening to Element 302. This amplifier, in its new version, adopts circuit solutions and latest generation components and makes the difference when it is connected to complex and demanding acoustic systems, being able to return the sound message without exacerbation even at high powers and with limit load situations.

The current driving grants high dynamics both at low and high volumes and the powerful dimensioning of the power supply stage favors total control over the loudspeakers to the advantage of a crystalline and deep sound message.

Element 302 currently remains the best solution globally for the amplification of complex and high-end high-end systems.
Preserving the naturalness of an instrument in its entirety is a challenge that every component must achieve high fidelity. During the development of our products at EAM Lab we never wanted to leave this challenge outside of our point of view
The Element series was created to allow modern acoustic systems to better express their full potential by qualifying only and exclusively the music without affecting in any way the initial sound message. Each component that is the Element series is carefully chosen based on electrical and mechanical characteristics of excellence with the reliability in the time for us Eam Lab, is of primary importance. New materials and finishes of the chassis has allowed a significant improvement of the aesthetic factor considering getting a staple of the design philosophy Eam Lab The mechanical robustness is guaranteed by 3mm thick steel panels attached directly to the heat sinks that make shoulder -bearing considerably reducing vibrations and vibrations . Are linear amplifiers , extremely powerful and reliable while maintaining a compact design that can be installed in any environment.

Features

  • Solid state amplifier
  • Dual Mono
  • Class A up to 20 W
  • Eam Lab transformers
  • 16 Sanken transistors per channel
  • filter capacity > 100,000uf
  • HDCA preamplifier stage input
  • Made in Italy

Specifications

  • Dual mono amplifier operating in class A up to 20 Watts
  • RMS power output per channel 300w @ 8 ohm, 600w @ 4 ohm, 1000w @ 2 ohm
  • Damping Factor >200 @ 250hz 8ohm
  • Frequency response 5Hz – 100Khz +/- 0.8db
  • Input impedance 47Kohm xlr – 22Kohm single ended
  • Dimension 402 * 420 * 250 mm ( W x L x H )
  • Weight 41 kg
