Clearaudio Nano Phono v2 Preamplifier

Clearaudio Nano Phono v2 Preamplifier

by Clearaudio
₹ 67,500 - ₹ 67,500
₹ 67,500
₹ 67,500
₹ 67,500 - ₹ 67,500
₹ 67,500

Taxes & Shipping Included

The Clearaudio nano phono V2 remains composed even when subjected to external interference. The compact phono preamplifier is designed for low-noise signal processing and is suitable for both moving-magnet and moving-coil cartridges.

The meticulously selected SMD components are hand-assembled in Erlangen and tested multiple times. The effort pays off: the nano phono V2 achieves a signal-to-noise ratio of up to 80 decibels.

The input impedance can be adapted to the cartridge being used. This allows different MM and MC systems to deliver their sonic potential without unnecessary compromise.

Features
  • Resonance-Free Construction: The printed circuit board is housed inside a CNC-machined, solid aluminum chassis designed to reject external mechanical and electrical interference
  • Premium Electronics: It utilizes precision Burr-Brown (Texas Instruments) integrated circuits alongside hand-assembled surface-mount device (SMD) components
  • Ultra-Short Signal Paths: This engineering layout ensures pure, virtually noise-free music reproduction

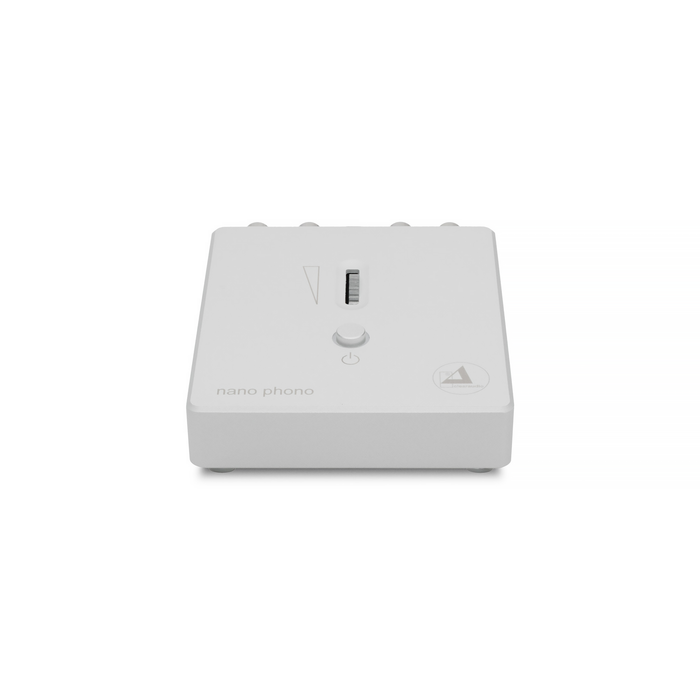

  • Physical Control Layout: Features a top-mounted power on/off button and a built-in volume level control wheel for precise line-level matching
  • Made in Germany
      Specifications
      MODE:

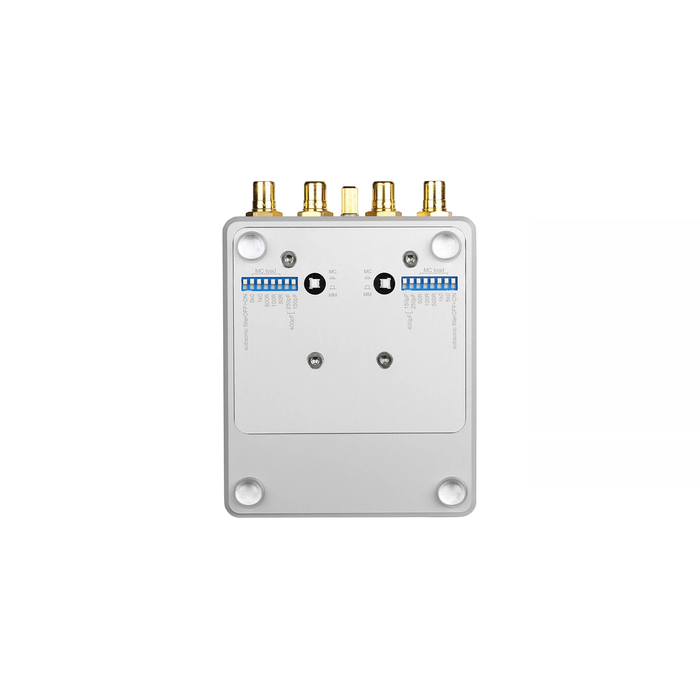

      • MM / MC switchable with jumper (on underside)
      • Subsonic filter switchable with jumper (on underside)
      GAIN AT 1 kHz:
      • 34 dB (MM operation)
      • 54 dB (MC operation)
      INPUT IMPEDANCE:
      • 47 kΩ / 220 pF / MM operation
      • Individual / MC operation
      RIAA ACCURACY:

      ± 0.4 dB @ 20 Hz – 50 kHz
      DISTORTION:

      < 0.04 %
      SIGNAL-TO-NOISE RATIO:
      • 81 dB (A) (MM operation)
      • 70 dB (A) (MC operation)
      OVERLOAD MARGIN:

      18 dB / MC
      MAXIMUM OUTPUT VOLTAGE: 10 V RMS (1 kHz)
      CUTTING CHARACTERISTIC EQUALISATION:

      According to RIAA (time const.: 75 μs / 318 μs / 3180 μs)
      CHANNEL SEPARATION: > 80 dB at 1 kHz, opposite channel short-circuited
      OUTPUT IMPEDANCE: 75 Ω

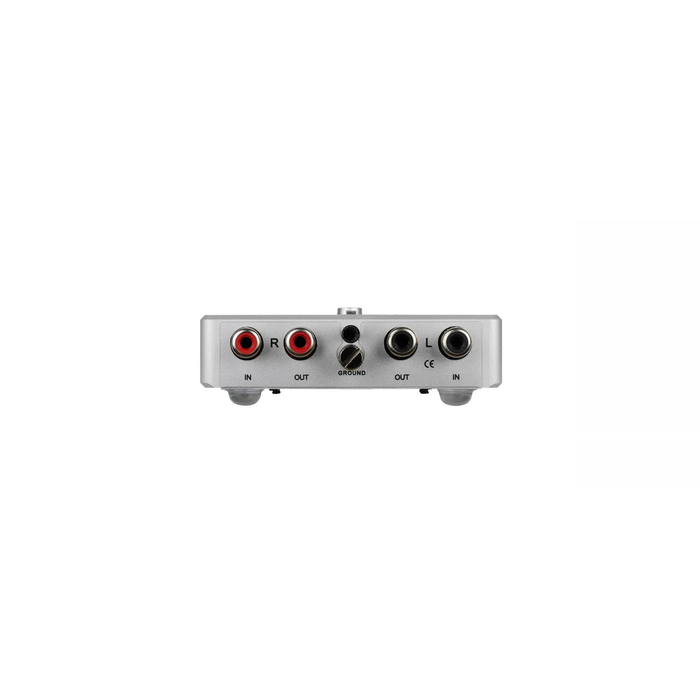

      INPUTS: unbalanced (RCA)
      OUTPUTS: unbalanced (RCA)
      optional headphone output (jack: 3.5 mm)
      POWER CONSUMPTION:
      • Max. power consumption: 2.3 watts
      • In operation: 2.3 watts
      • Standby mode: < 0.3 watts
      • Switched off: 0.0 watts
      POWER SUPPLY: ± 18 V DC / 300 mA (external plug-in power supply, plastic housing)
      WEIGHT: approx. 500 g (preamplifier and power supply)
      DIMENSIONS (W/D/H): approx. 85 × 106 × 25 mm
