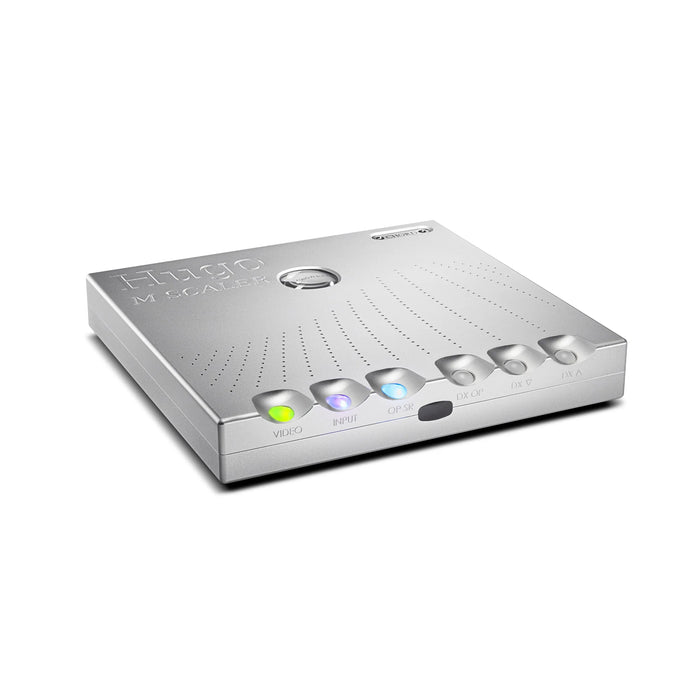

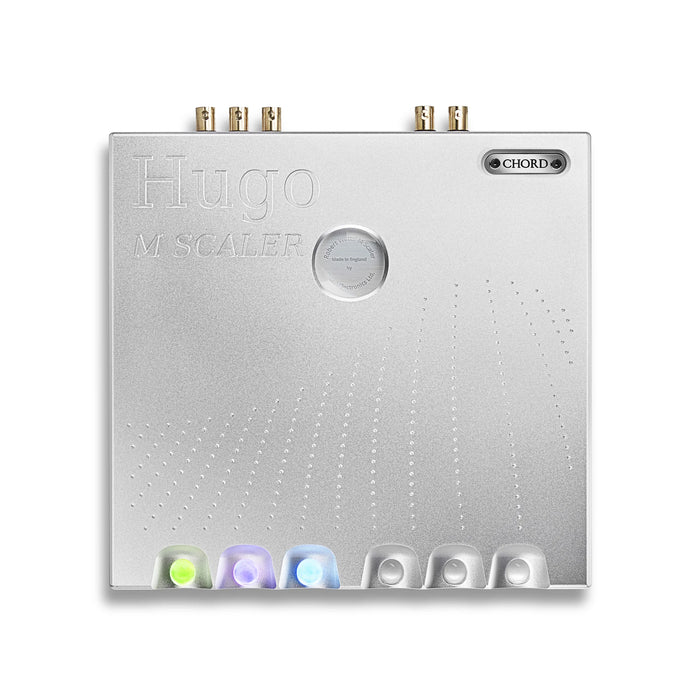

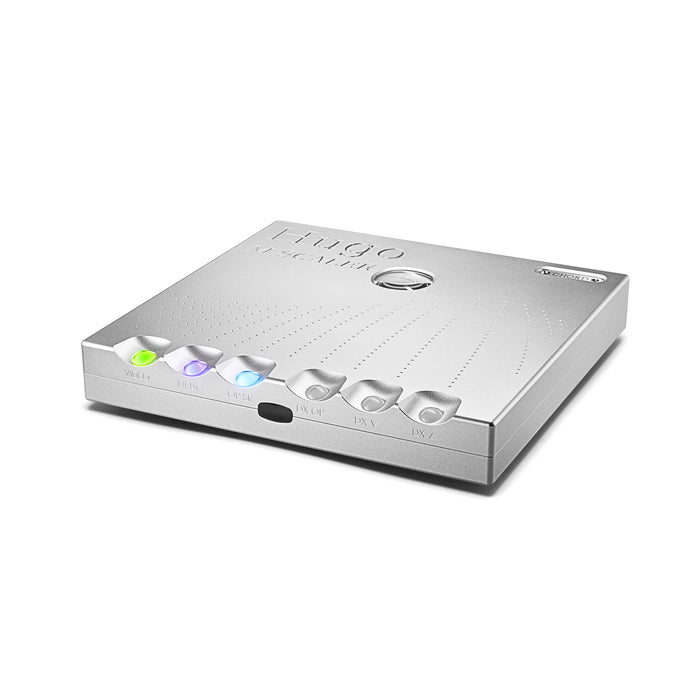

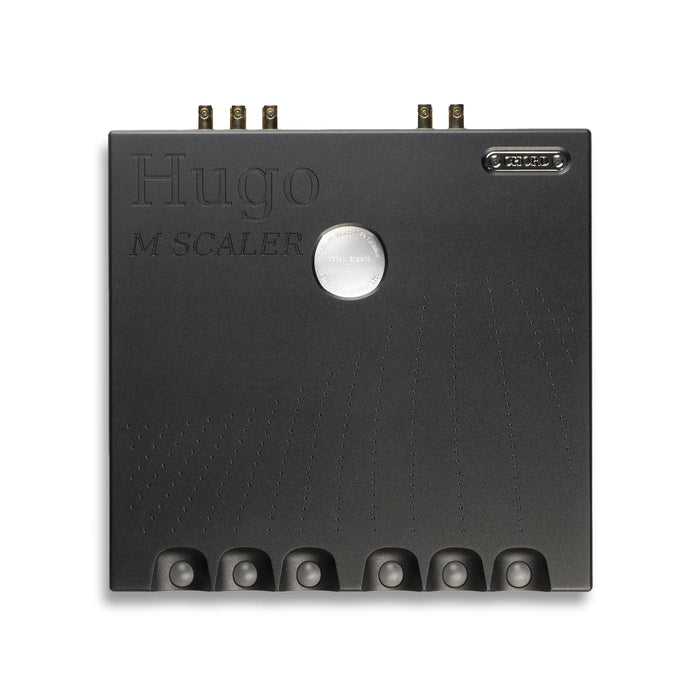

Chord M Scaler Digital Audio Up-Scaler

Chord M Scaler Digital Audio Up-Scaler

The Chord M Scaler represents the cutting edge of digital audio processing, featuring the world's most advanced digital filter technology to maximize resolution and musicality from your digital sources. With a proprietary 1,015,808-tap WTA (Watts Transient Alignment) filter and powerful Xilinx FPGA processing, the M Scaler upscales standard audio to 768kHz, transforming compressed and lower-resolution signals into audiophile-grade material. When paired with compatible Chord DACs, the M Scaler unlocks previously hidden details and dimensionality in your music collection.

Features

• Most advanced digital filter in the world: 1,015,808-tap WTA filter design
• Xilinx XC7A200T FPGA with 420 million transistors for uncompromising audio processing
• Upscales standard audio to 705.6kHz (16x CD resolution)
• Dual BNC inputs support 96kHz upscaling to maximum 768kHz output

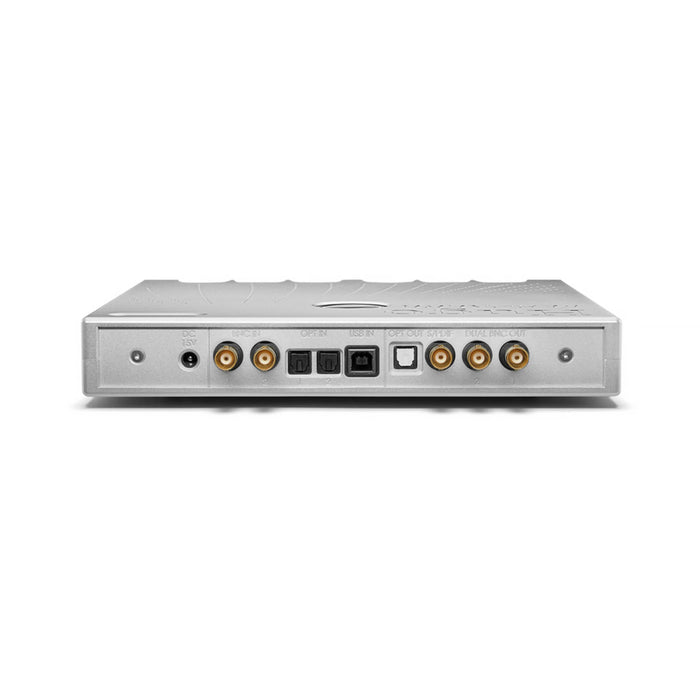

• Multiple input options: USB, 2x BNC Coaxial, 2x Optical S/PDIF
• Multiple output formats: Dual BNC (768kHz max), BNC S/PDIF, Optical
• Video mode for lower-latency streaming applications
• IR remote control included for convenient operation

Specifications

• Maximum Input Resolution: 96kHz (BNC), 48kHz (Optical)
• Maximum Output Resolution: 768kHz (via dual BNC)
• FPGA Cores: 420 million transistors
• Filter Design: 1,015,808-tap WTA (Watts Transient Alignment)
• Power Consumption: 30W (full operation), 10W (standby)
• Frequency Response: 20Hz-20kHz (flat output)
• Jitter Suppression: <0.1ps (essentially jitter-free)
• Dimensions: 183mm (W) x 109mm (D) x 67mm (H)
• Weight: 2.0kg
