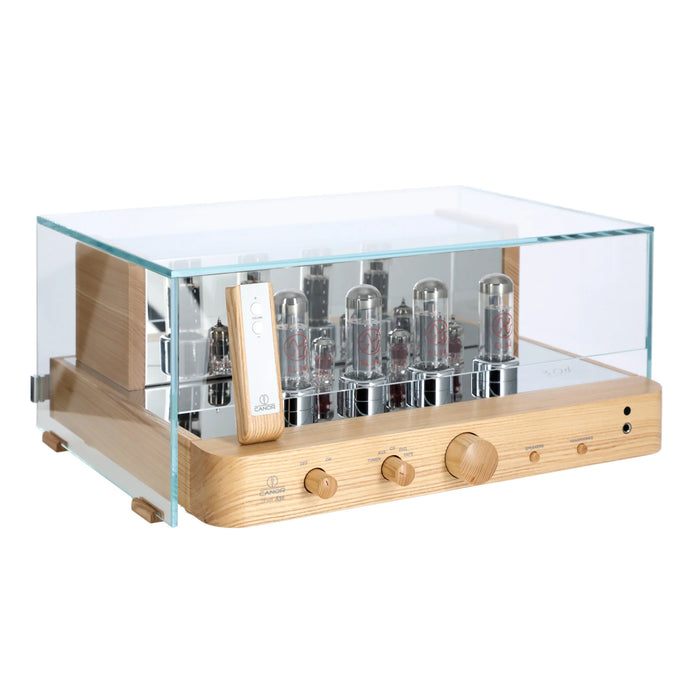

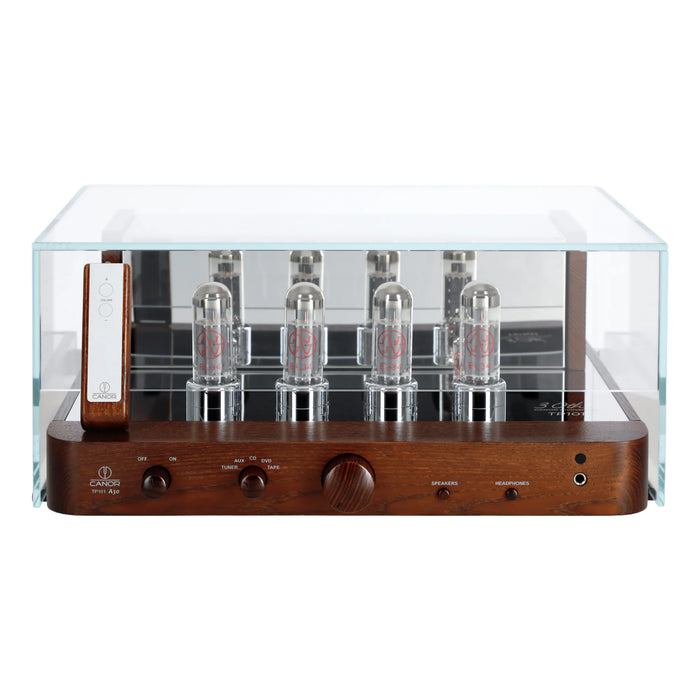

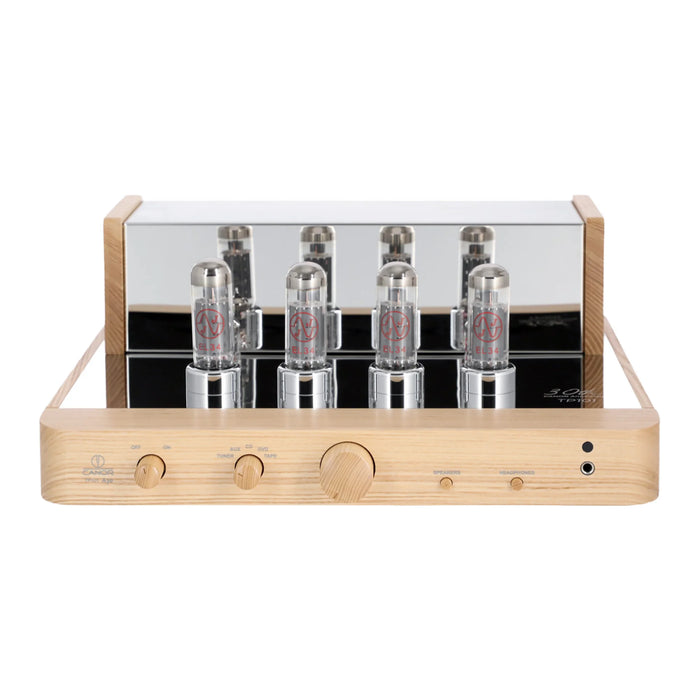

Canor TP101 A30 Integrated Tube Amplifier
Taxes & Shipping Included
Honoring three decades of sonic heritage, the Canor TP101 A30 resurrects the brand's founding vision of authentic sound through meticulous engineering. This integrated tube amplifier marries vintage tonal character with contemporary refinement, delivering a listening experience grounded in tradition yet shaped for modern sensibilities. A precision-engineered push-pull ultralinear class AB circuit forms the sonic foundation, complemented by bespoke permalloy output transformers that define its distinctive acoustic signature. The proprietary CMT innovation elevates performance parameters, ensuring the amplifier transcends conventional expectations. Each element reflects an unwavering commitment to natural reproduction and uncompromising build quality.
Headphone output
The TP101 A30 features a high-quality headphone output that delivers excellent technical performance and a rich, dynamic sound. It offers clean detail, strong control, and a natural listening character, making it an engaging choice even with demanding headphones.
Wood & Stainless Steel Design
A carefully balanced composition of real wood and stainless steel gives the amplifier tactile and visual presence that mirrors its sonic character. Each material was chosen not only for its aesthetics but for its longevity and timeless appeal.
Output permalloy transformers
High-grade output transformers built on 100% permalloy cores provide the TP101 A30 with superior clarity, tighter control, and a remarkably natural, open sound.
Robust chassis structure with anti-vibration protection
The chassis support structure is made of 2 mm iron material, which forms a solid foundation for the entire device. The exterior design combines wood with a mirror stainless steel surface, while the anti-vibration material used effectively dampens mechanical vibrations of the transformer housing, thereby contributing to the elimination of unwanted noise.
Voltage Stabilization Circuit
The amplifier is equipped with a voltage stabilization circuit (VSC) that constantly monitors the input voltage and accordingly maintains the operating voltage range of the tubes in optimal conditions.
High-quality signal wiring
The TP101 A30 uses high-quality silver-plated internal signal wiring to preserve even the finest musical details. This premium cabling ensures excellent conductivity, lower signal loss, and cleaner transmission across the entire audio path.
CMT™
The TP101 A30 utilizes our advanced CMT™ (CANOR ® PCB Milling Technology) for optimal performance. The CMT™ allows us to get the dielectric loss factors (loss tangent) of PCB close to the loss factor of air. Thanks to this technology we managed to get repeatedly to the parameter level of the so-called "wire-to-wire connections".
Features

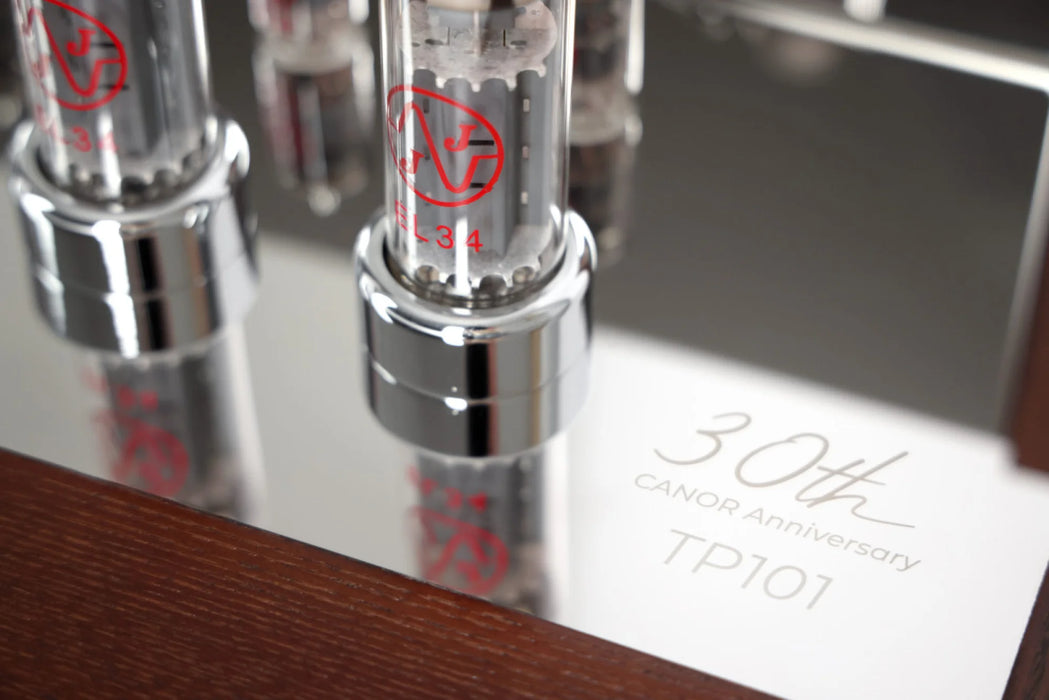

- An integrated tube amplifier based on EL34 tubes operating in class AB, providing an output power of 2 x 35 W.
- High input filtration capacity.
- The product uses premium, high-quality Mundorf coupling capacitors.
- Precise selection and tube pairing meet above-average parameters.
- Premium silver-plated internal signal wiring to preserve even the finest musical details.
- Special output permalloy transformers.
- High-end two-way Alps potentiometer.
- PCBs utilize our premium CMT ™ technology.
- Made in Slovakia
Specifications
| Amplifier Class | AB |
| Stereo Output Power | 2 x 35 W / 4, 8 Ω (1 %) |
| Headphone Output Power | 2 W / 30 Ω (< 1 %) 4 W / 300 Ω (< 1 %) |
| Gain | 30 dB (at 4 Ω) 33 dB (at 8 Ω) |
| Input Sensitivity | 380 mV |
| Frequency Range | 18 – 55 000 Hz -0.3 dB |
| Damping Factor | 6.5 / 4 Ω load 7 / 8 Ω load |
| Input Impedance | 30 kΩ |

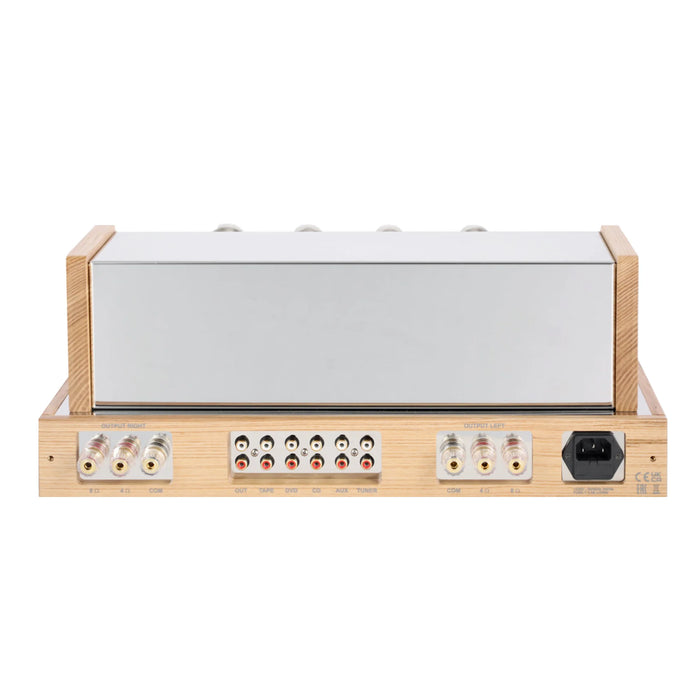

| Analog Inputs | 5 x RCA pair |
| Analog Outputs | 1 x RCA pair (Fix Out) |
| Headphone Output | 1 x 6.3 mm jack |
| Total Harmonic Distortion | < 0.025 % / 8 Ω (1 kHz, 1 W) < 0.1 % / 8 Ω (1 kHz, 5 W) |
| Signal-to-noise ratio | > 96 dB |
| Tube Complement | 4 x ECC81, 4 x EL34 |
| Power | 230 V / 50-60 Hz / 290 VA |
| Dimensions (W x H x D) | 450 x 185 x 390 mm |
| Weight (Net) | 23 kg |
| Weight (Gross) | 35 kg |
| Glass cover weight | 5 kg |
