Canor DAC 2.10 Digital to Analog Convertor - DAC

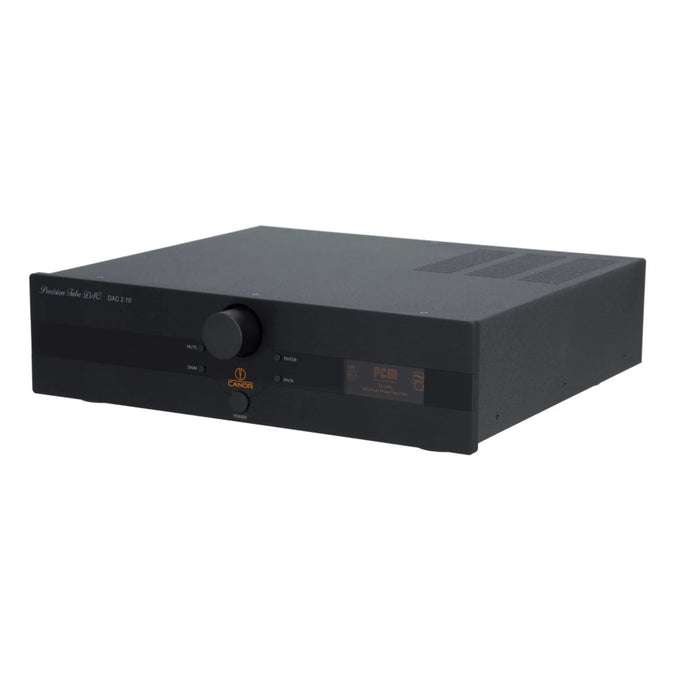

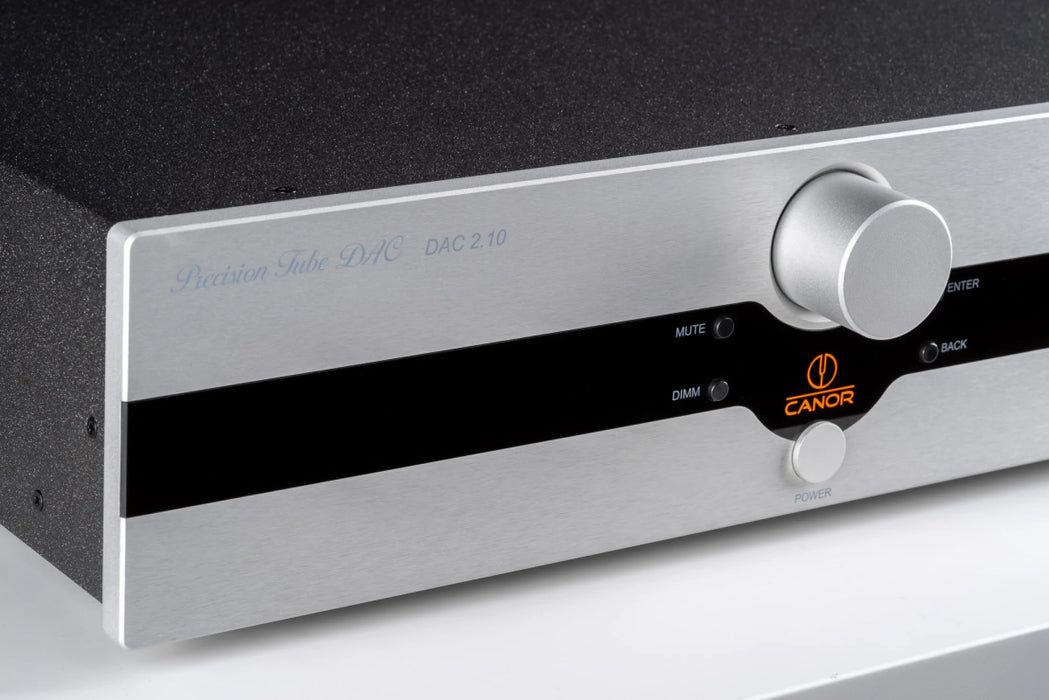

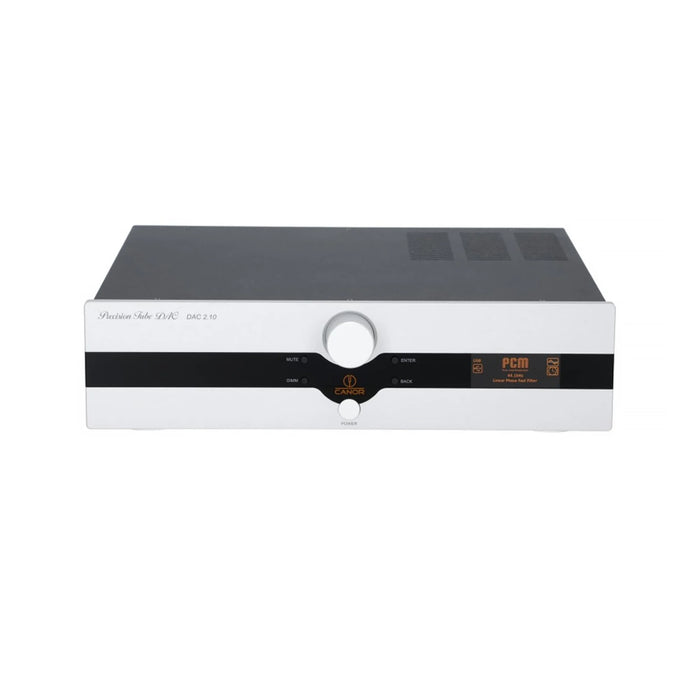

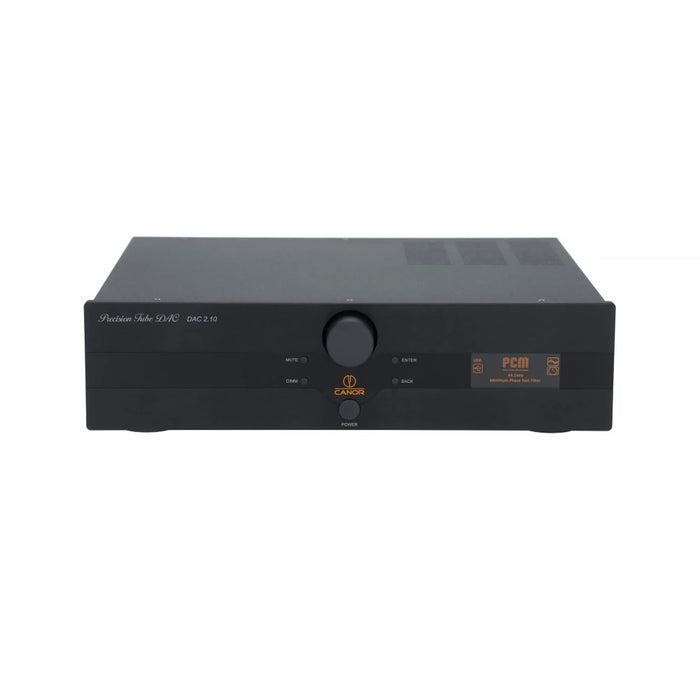

Canor DAC 2.10 Tube Digital to Analog Convertor

by Canor
₹ 450,000 - ₹ 450,000
₹ 450,000
₹ 450,000
₹ 450,000 - ₹ 450,000
₹ 450,000

Taxes & Shipping Included

CANOR DAC 2.10 uses the dual mono configuration of the ES9038Q2M digital-to-analogue converters from ESS Sabre, which ensure high sound quality.

Converter filters

Seven digital converter filters for PCM format and one proprietary for MQA format - so the listeners can adjust the sound exactly to their liking.

Signal processing

The signal from the digital inputs is processed by a powerful multicore XMOS microcontroller with an advanced Multi-Core RISC architecture.

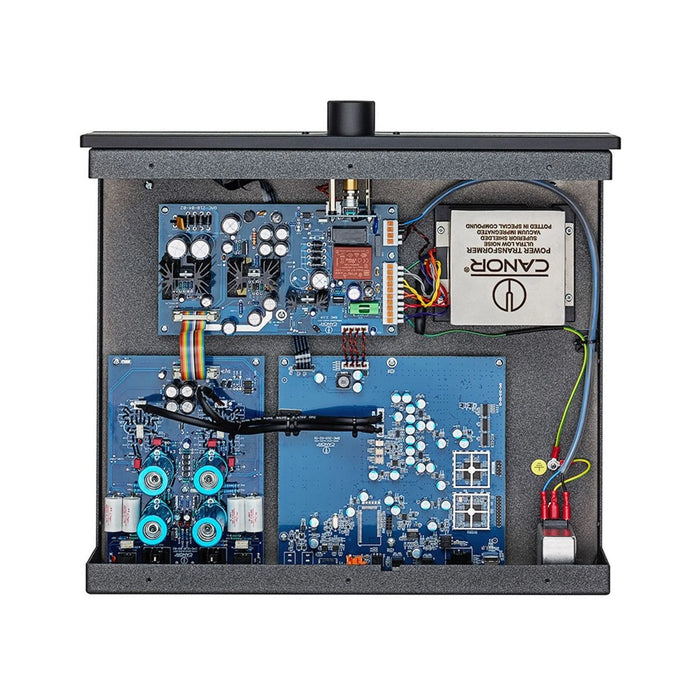

Power transformer

To remove mechanical hum, the transformer core is vacuum impregnated, and the entire transformer is encapsulated in a special anti-vibration compound.

In addition, the massive, welded cover in which the transformer is located creates effective electromagnetic shielding and contributes significantly to the excellent signal-to-hum distance.

Features
  • Thanks to used converters, it is possible to play files in PCM formats up to a sampling frequency of 768 kHz and for DSD format up to Native DSD512 via the USB input, thus covering most digital files that you can normally play, buy or stream.
  • It uses the dual mono configuration of the ES9038Q2M digital-to-analogue converters from ESS Sabre, which ensure high sound quality.
  • The analogue output is a buffer, which is solved by a high-quality electronic connection
  • Dual converter wiring uses separate signal paths for the left and right channels.
  • There are seven digital converter filters for PCM format and one proprietary for MQA format, which is set automatically during MQA playback.
  • The last (eighth) item in the digital filter menu “Oversampling Bypass” can be selected. But it’s not a digital filter, as it’s turning off digital filtering for the ability to compare audio without filtering…
  • The signal from the digital inputs is processed by a powerful multi-core XMOS microcontroller with an advanced Multi-Core RISC architecture.
  • Made in Slovakia
    Specifications
    Frequency Response at Fs=192 kHz +/- 0,03 dB at 20 Hz to 20 kHz
    Output impedance < 200 Ω
    THD+N 1kHz at 0 dBFs > 0,008%
    THD+N 1kHz at -6 dBFs > 0,004%
    XLR output voltage at 0 dBFs 4 V RMS
    XLR: SNR 20 Hz to 20 kHz at 0 dBFs < 108 dB
    RCA output voltage at 0 dBFs 2 V RMS
    RCA: SNR 20 Hz to 20 kHz at 0 dBFs < 95 dB

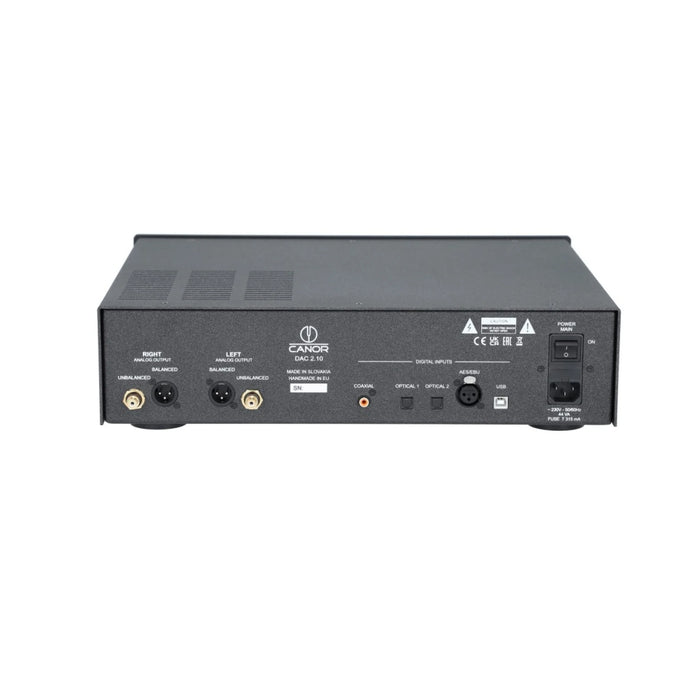

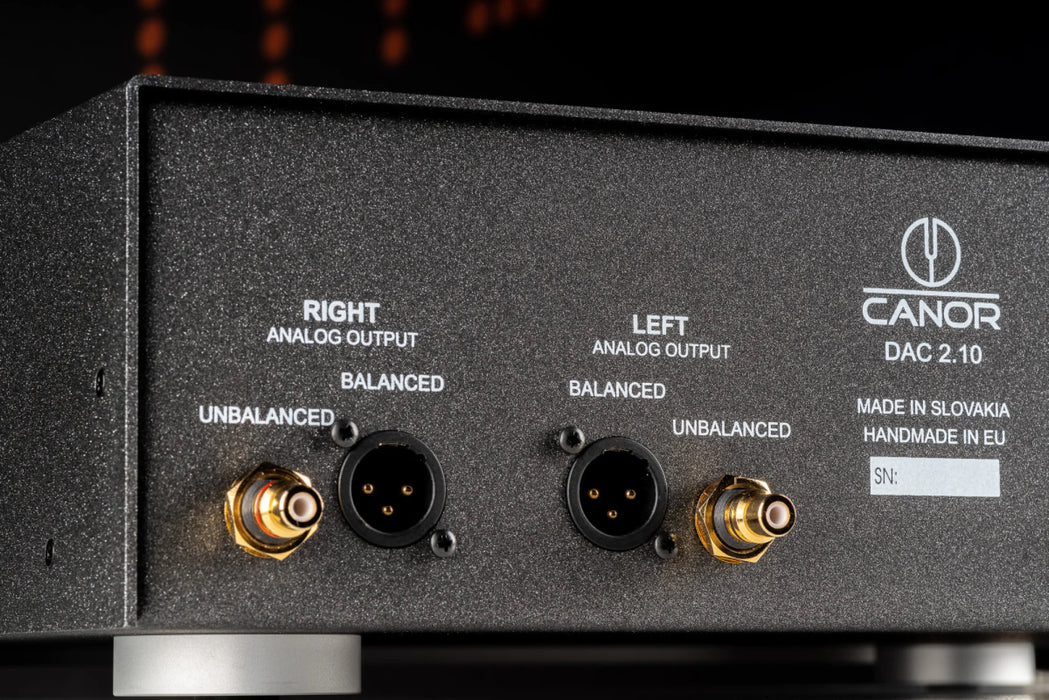

    Analogue outputs 2 x XLR / 2 x RCA
    Supported PCM sampling rates 44,1k / 48k / 88,2k / 96k / 176,4k / 192k / 352,8k / 384k / 705,6k / 768kHz
    DSD over PCM support DoP DSD 64/128/256/512
    DSD Native support Native DSD 64/128/256/512
    MQA support Full MQA decoding by hardware from all digital inputs

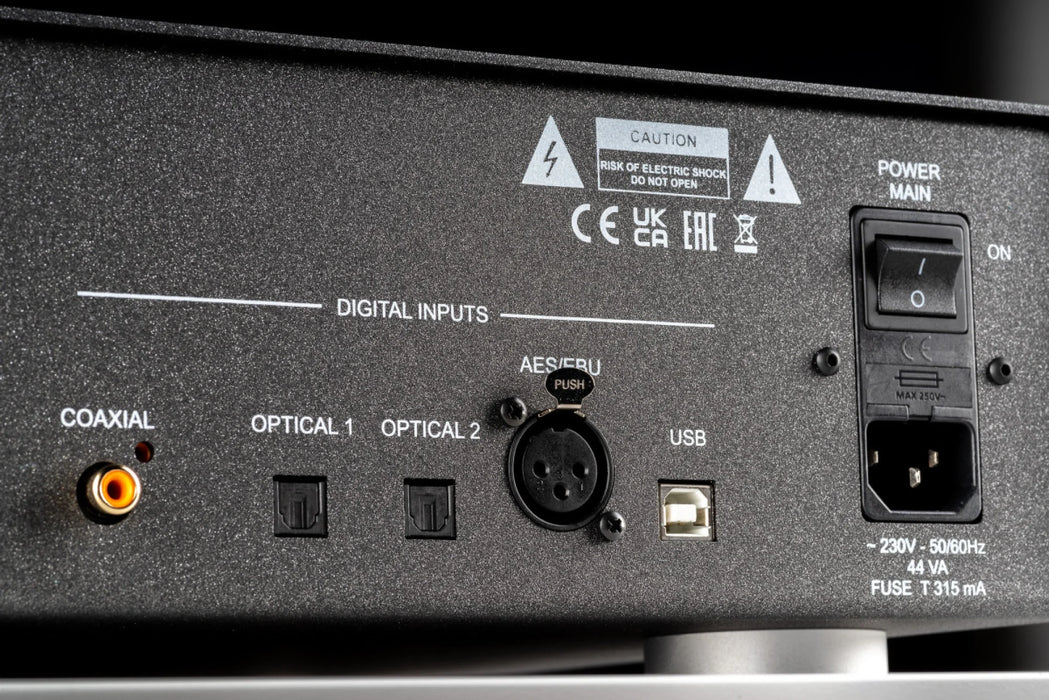

    S/PDIF Optical input 2 x (24bit / 192kHz)
    S/PDIF Coaxial input 1 x (24bit / 192kHz)
    AES/EBU input 1 x (24bit / 192kHz balanced)
    Digital to Analogue converter 2 x ESS9038Q2M (dual mono)
    Filter settings 8 x digital filter

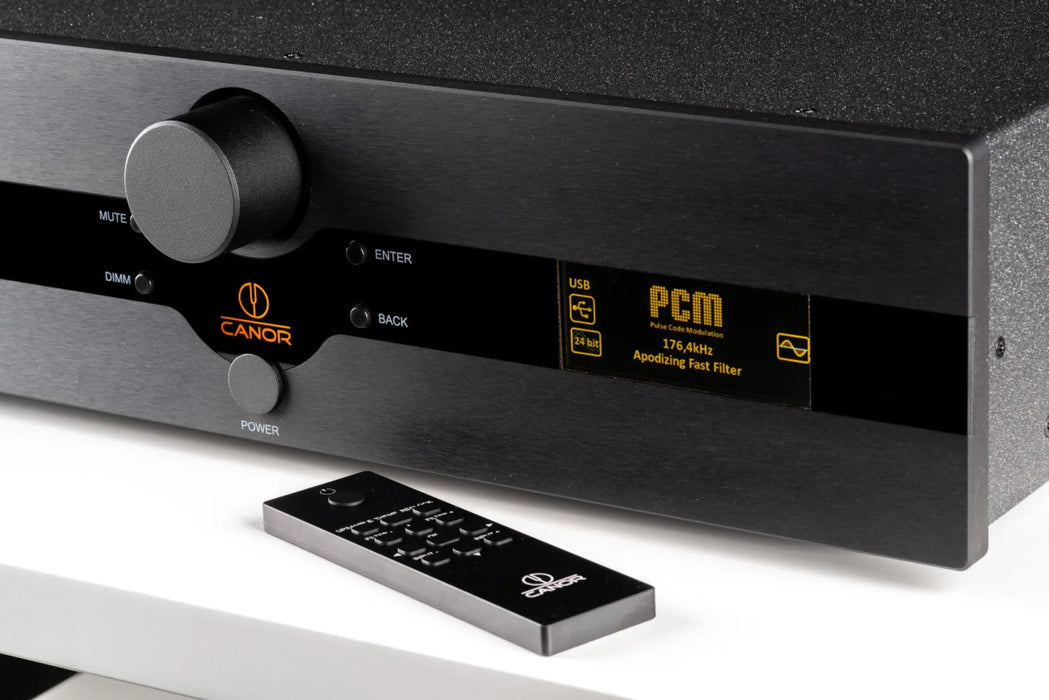

    Display LCD TFT
    Tube complement 4 x 6922
    Power 230 V / 50 Hz / 44 VA
    Dimensions (w x h x d) 435 x 120 x 405 mm
    Weight (net) 12 kg
