Canor AI 2.10 Hybrid Integrated Amplifier - Integrated Amplifier

Canor AI 2.10 Hybrid Integrated Amplifier

by Canor
₹ 450,000 - ₹ 450,000
₹ 450,000
₹ 450,000
₹ 450,000 - ₹ 450,000
₹ 450,000

Taxes & Shipping Included

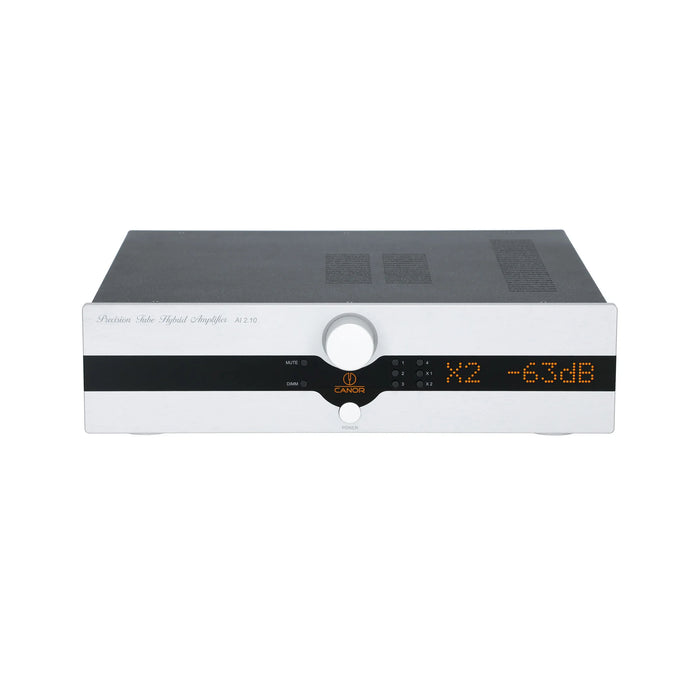

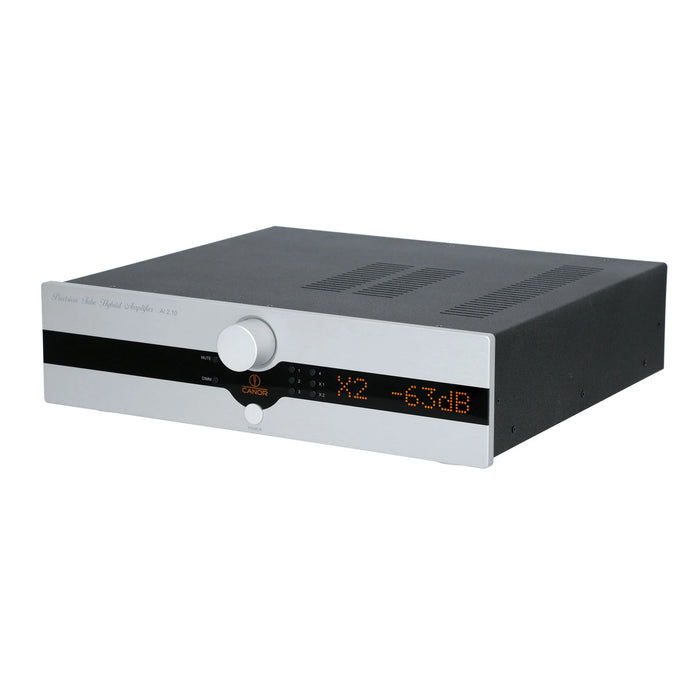

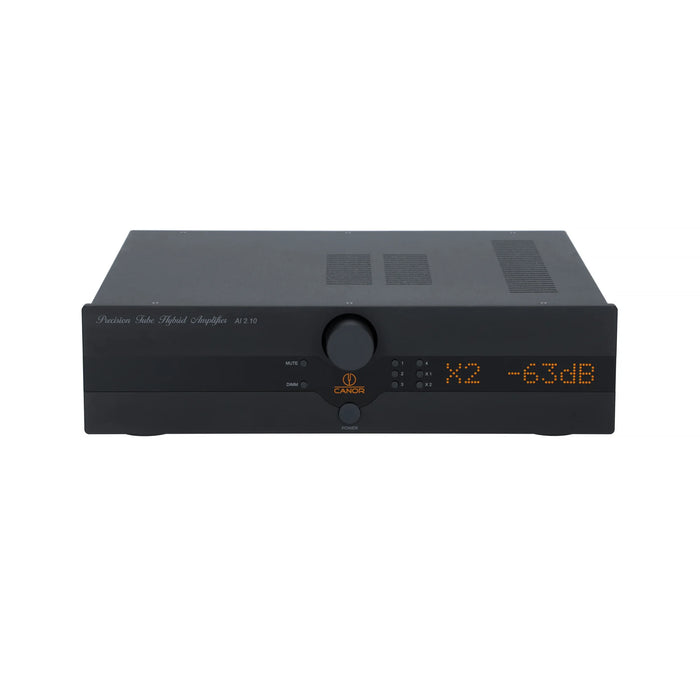

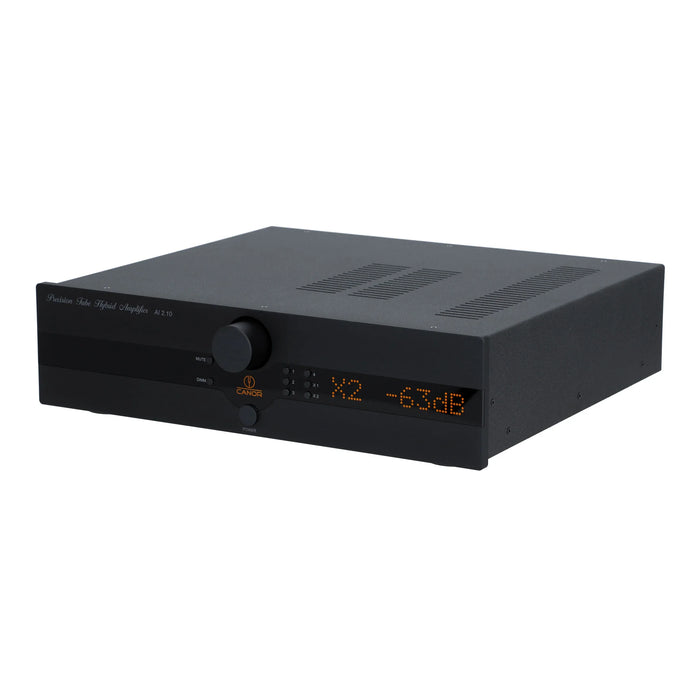

CANOR AI 2.10 is a hybrid integrated amplifier with an output power of 2 x 150 W / 4 Ω.

Linear power supply

A power amplifier in class D is powered by a filtered and tuned linear power supply. There are also benefits of using the additional LC filters, with very low impedance, for the greatest possible suppression of the carrier frequency D class of the amplifier.

The tube preamplifier with a relay attenuator

The tube preamplifier on the input is fitted with a precise relay attenuator.

The input transformer

The input transformer (toroid) is oversized which leads to the low noise

Features
  • A hybrid integrated amplifier with an output power of 2 x 150 W / 4 Ω
  • The preamplifier part of AI 2.10 consists of a pair of precisely selected tubes 6922
  • A tube preamplifier on the input fitted with a precise relay attenuator
  • A power amplifier in class D, powered by a filtered and tuned linear power supply
  • PCB’s utilize our premium CMT ™ technology
  • XLR inputs with a strictly symmetrical signal up to the power amplifier
  • Made in Slovakia
Specifications
Output power 2 x 150 W / 4 Ω
Input sensitivity 400 mV / 150 W / 1 kHz
Frequency range (20 – 20 000) Hz ±0,53dB / 5 W
Input impedance 30 kΩ

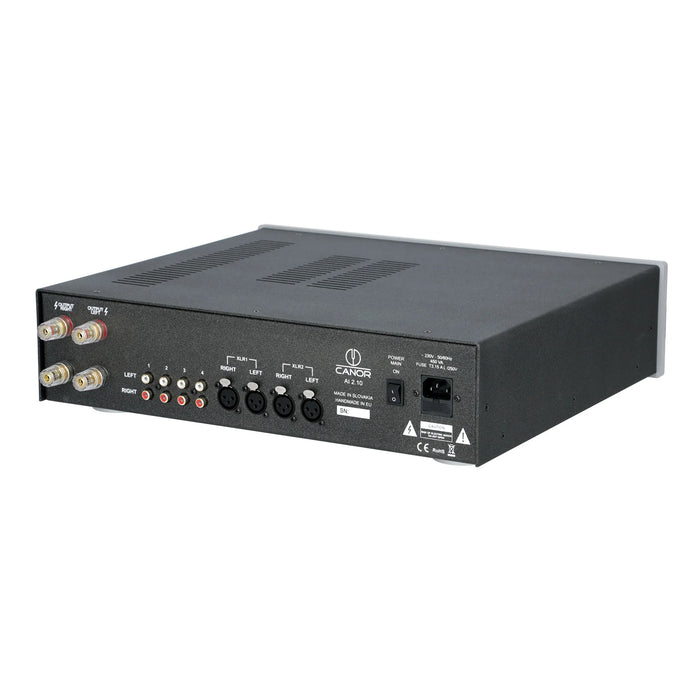

Inputs 4 x RCA, 2 x XLR
Total Harmonic Distortion <0,02% / 1 kHz, 5 W
Signal-to-noise ratio > 95 dB
Tube complement 2 x 6922
Power 230 V / 50 Hz / 450 VA
Dimensions (w x h x d) 435 x 120 x 405 mm
Weight (net) 17 kg
