Bel Canto Phono Preamplifier

by Bel Canto Design
₹ 190,000 - ₹ 190,000
₹ 190,000
₹ 190,000
₹ 190,000 - ₹ 190,000
₹ 190,000

Taxes & Shipping Included

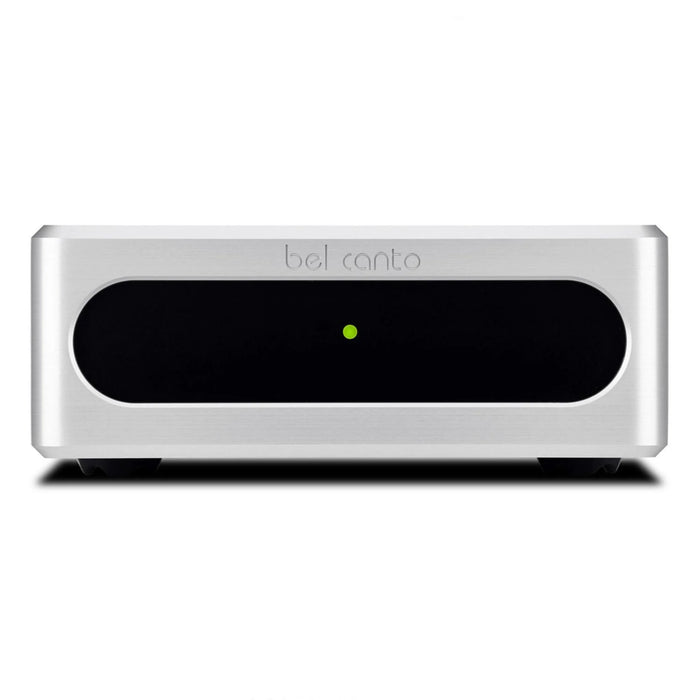

Color: Silver

The Bel Canto Phono preamplifier will unleash tremendous dynamics and resolution to your listening experience.

DSSA, Discreet Single Stage Amplifier
This is a very fast, low noise amplifier with a single-stage folded cascode architecture and over 500mA of peak current output capability. It maintains very low constant distortion levels through the audio band because of its high open-loop bandwidth. The DSSA module brings a further element of dynamic resolution and contrast to the e.One Phono. The vertical modular design permits a tight, efficient Printed Circuit Board (PCB) layout that combines the best of IC based and discrete component design.

Gain and Resistance Customization

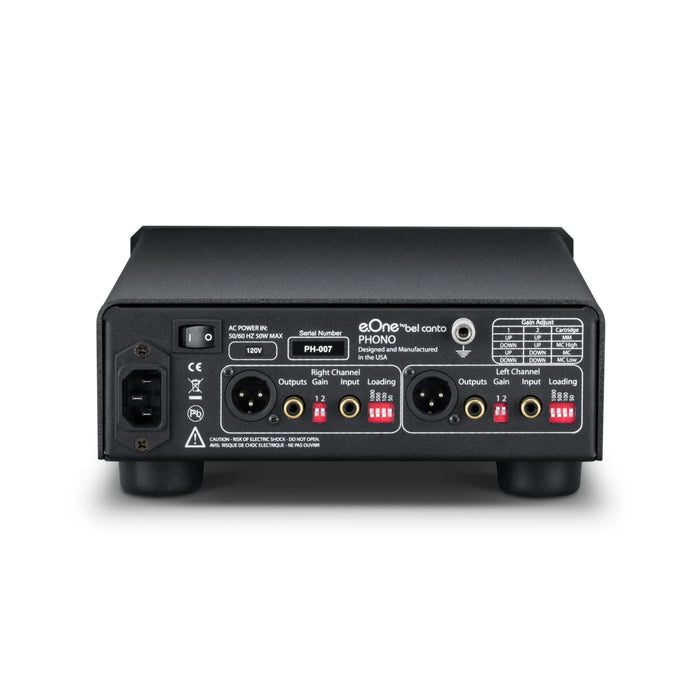

The PHONO can work with a wide variety of cartridges by adjusting the dip switches for gain and resistance on the back of the unit.

Features

  • Optimized two stage architecture
  • Low noise 40dB input stage
  • Custom discrete output stage with adjustable gain
  • Precision RIAA network
  • High drive output buffer
  • Low noise multi-stage channel independent power supply
  • Ground optimized PCB layout

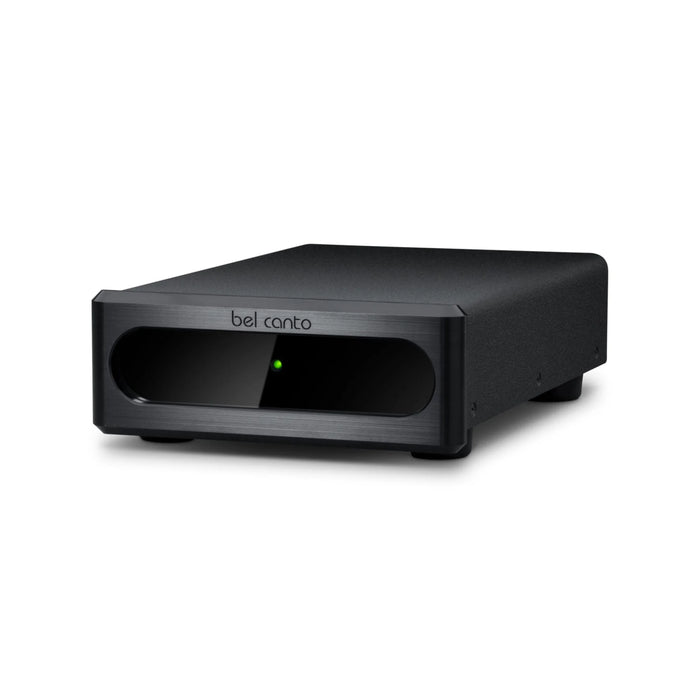

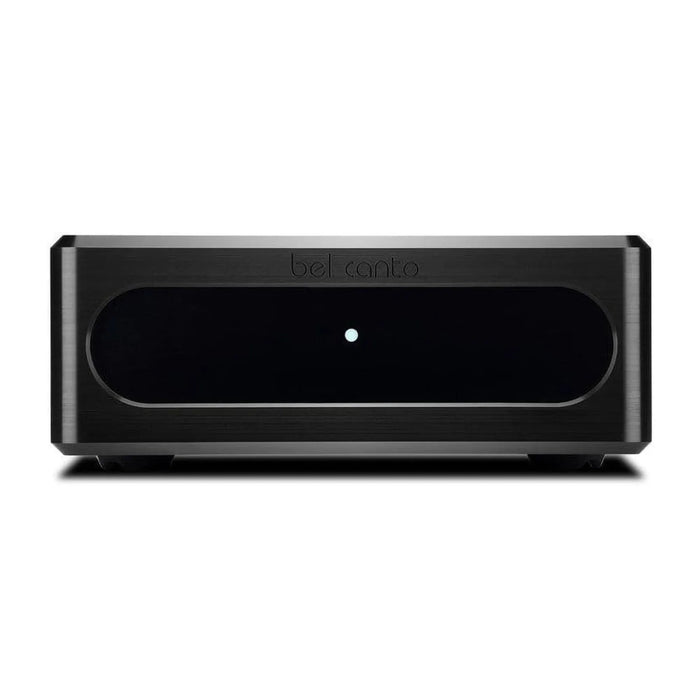

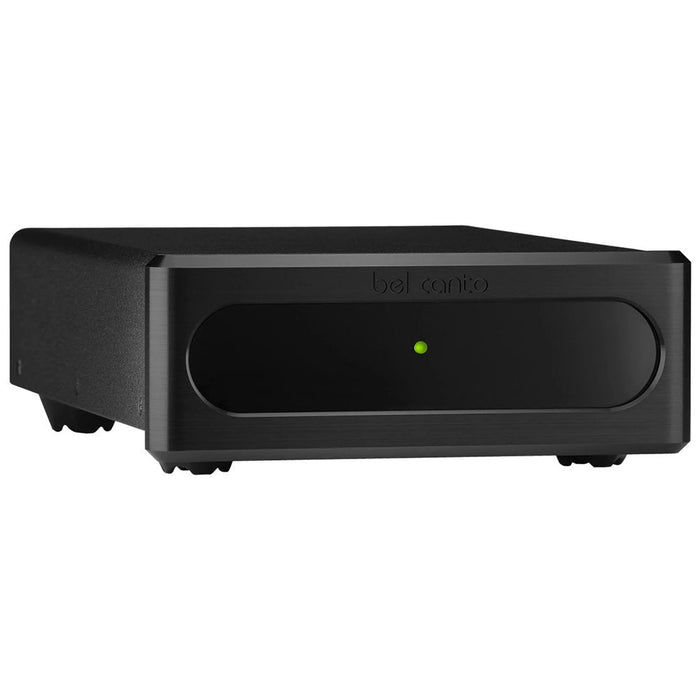

  • Available in Silver or Black Faceplate
Specifications
Bandwidth: 1Hz-50KHz
RIAA Accuracy: 20Hz-20KHz +/- 0.2 dB
Signal to Noise Ratio 40 dB gain: >80 dB A weighted, re 5mV RMS in
Distortion @ 2 Volt RMS/1KHz: <0.01%
Input Impedance: Adjustable 31 to 47k
Gain Level Options: Adjustable 38dB to 60dB

General:
Power On usage: 10W
Power Off usage: 0.0W
Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
Size: 8.5 x 3.5 x 12?, 216 x 88 x 305mm (W x H x D)
Weight: 10lbs, 4.5Kg
