Bel Canto C6i DAC Integrated Amplifier
Taxes & Shipping Included
The Bel Canto C6i is more than just an upgrade to the former C5i, this is a new piece with serious improvements across the board. It has plenty of power to drive a wide variety of speakers, but has seen a significant upgrade in the quality of power with Bel Canto’s custom NCore implementation. On top of that, the DAC section has jumped to another league. You’ll be very hard pressed to find another integrated amplifier at this price point with a DAC that approaches what is in the C6i. As a final note, the volume control, line-in and phono stage are now all within the analog domain. The sound is hallmark Bel Canto which is well-balanced, detailed and highly musical due to its smooth delivery.
High-Dynamic Resolution Core
HDR Core is the result of 20+ years of engineering to refine the digital to analog process, comprised of 4 major components: Ultra Low Noise Master Clocks, Asynchronous Interfaces, Advance Segment PCM1792 DAC and Dual Mode Low-Noise High Efficiency Power Supplies. HDR Core technology is fundamental to every premier Bel Canto product, creating the most realistic, open, and defined musical experience possible.
Built In Headphone Output
This low-impedance, high-output headphone amp circuit has been designed to drive any pair of high quality headphones with pristine clarity. You'll be amazed at the musical depth they bring to your headset.

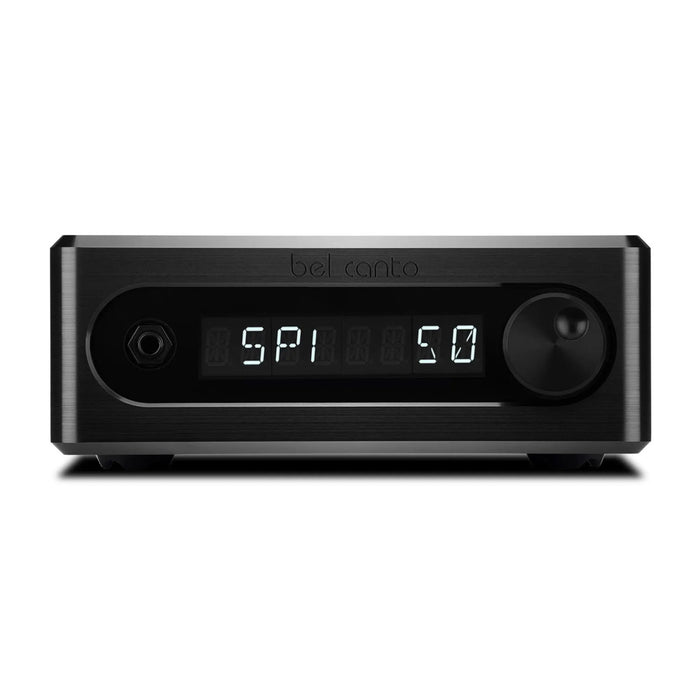

Simple, Elegant Interface

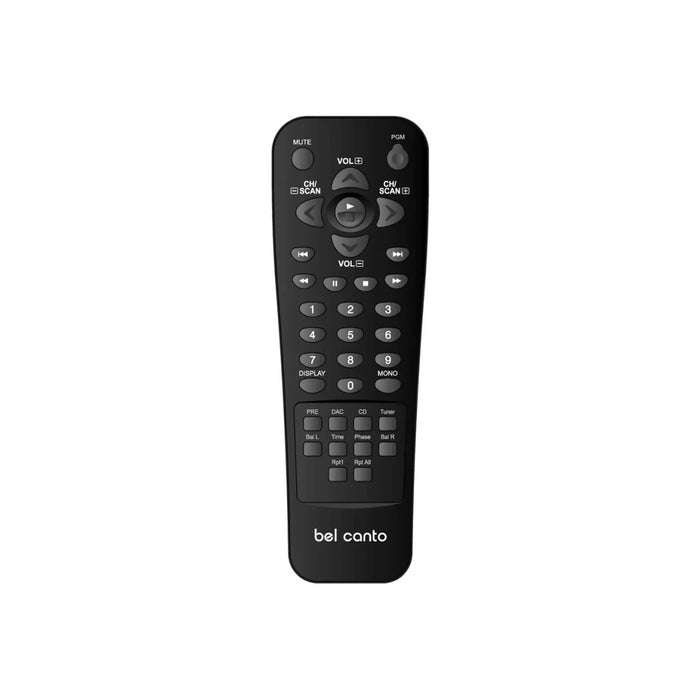

Designed to be functional and simple, the dual-functioning one knob interface is a joy to use. The programmable 8 character display works with it seamlessly to access all basic functions in a few clicks. The included 36 button infrared remote allows instant command functions and display editing.
Features
- Latest Gen USB 2.0 24/192 and DSD128
- Analogue preamp and volume control
- Line-In and Phono inputs are true analogue signal path
- Analogue RIAA phono stage (suitable for MM and some high-output MC cartridges)
- High-dynamic range 24/192 DAC
- Ultra-low noise master clock
- Digital inputs include: 1 S/PDIF coaxial, 2 toslink and 1 USB
- WBT Next-gen binding posts
- Advanced dedicated headphone amplifier
- Ultra-low noise custom NCore amplifier with 126W power
Amplifier Section: |
|
| Power Output 1% THD: | 126W 4 ohms, 60W 8 ohms per channel |
| Minimum Load: | 2 ohms per channel |
| Peak Output Current: | 12.5 amperes |
| Frequency Response: | +/-3 dB 1.5Hz-50KHz |
| THD+N: | 0.003% 1W, 1KHz, 4 ohms |
| IMD (CCIF): | 0.0003%, 1W, 14:15KHz, 4 ohms |
| Output Noise: | <30uVRMS A-weighted 10Hz-20KHz |
| Damping factor: | >400 |
| Output Impedance at 100Hz: | <20 milliohms |
| Dynamic Range: | 120dB |
Digital Inputs: |
|
| Maximum Data Input Rate | |
| 24bit Data at 192KS/s: | SPDIF RCA x1, TOSLINK x2 |
| 24bit Data at 96KS/s and DSD128: | USB |
Analog Inputs: |
|
| Line in impedance: | 47 Kohms |
| Phono in impedance: | 47 Kohms//150pF |
| Phono accuracy: | +/-0.25dB, 50Hz-15kHz |
General: |
|

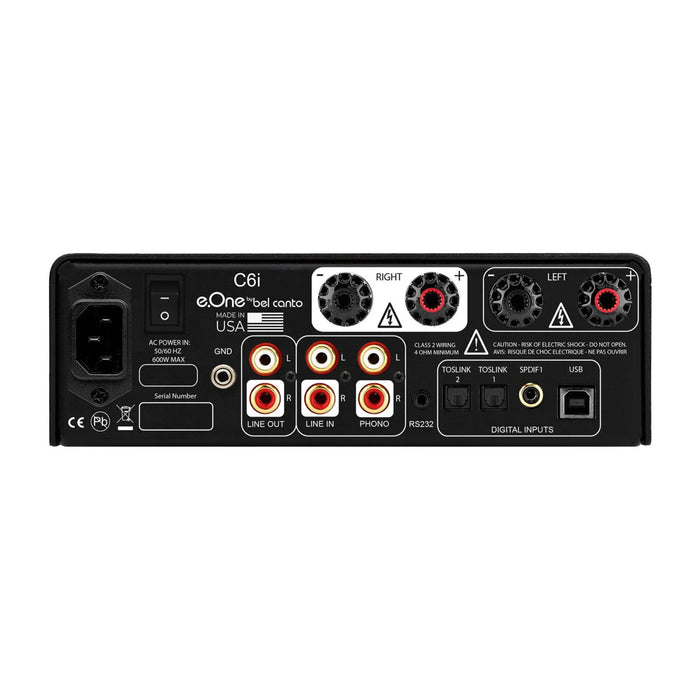

| Output connections: | 2-sets of WBT NextGen Binding Posts, RCA Line Out, Headphone Output |
| Headphone Output Current and Voltage Level: | 100mA peak |
| Power On usage: | 14W |
| Power Off usage: | 0.0W |
| Internally Set Operating Voltages: | 100-120VAC or 230-240VAC 50/60 Hz |
| Size: | 8.5 x 3.5 x 12?, 216 x 88 x 305mm (W x H x D) |
| Weight: | 13lbs, 6.5Kg |
