Bel Canto C5i DAC Integrated Amplifier
Taxes & Shipping Included
The Bel Canto C5i Integrated Amplifier is simplicity and musicality in one compact chassis that controls all of your sources, is versatile, and easy to use.
High-Dynamic Resolution Core
HDR Core is the result of 20+ years of engineering to refine the digital to analog process, comprised of 4 major components: Ultra Low Noise Master Clocks, Asynchronous Interfaces, Advance Segment PCM1792 DAC and Dual Mode Low-Noise High Efficiency Power Supplies. HDR Core technology is fundamental to every premier Bel Canto product, creating the most realistic, open, and defined musical experience possible.
Built In Headphone Output
This low-impedance, high-output headphone amp circuit has been designed to drive any pair of high quality headphones with pristine clarity. You'll be amazed at the musical depth they bring to your headset.
Simple, Elegant Interface

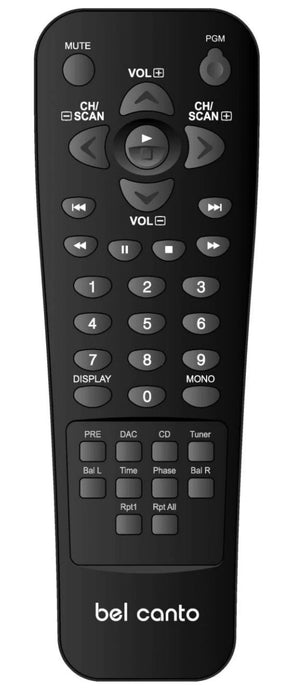

Designed to be functional and simple, the dual-functioning one knob interface is a joy to use. The programmable 8 character display works with it seamlessly to access all basic functions in a few clicks. The included 36 button infrared remote allows instant command functions and display editing.
Features
- 5 Digital Inputs
- Analog In/Line Out
- MM Phono Stage
- Quality Headphone Ouput
- 24/96 USB1.1 Input
- 24 Bit Volume Control
- Remote Control
- Available in Silver or Black Faceplate
Amplifier Section: |
|
| Power Output 1% THD: | 120W 4 ohms, 60W 8 ohms per channel |
| Minimum Load: | 3 ohms per channel |
| Peak Output Current: | 30 amperes |
| Frequency Response: | +/-3 dB 1.5Hz-90KHz, 4 ohm load |
| THD+N: | 0.003% 1W, 1KHz, 4 ohms |
| IMD (CCIF): | 0.0003%, 1W, 14:15KHz, 4 ohms |
| Output Noise: | <50uVRMS A-weighted 10Hz-20KHz |
| Damping factor: | >1000 |
| Output Impedance at 100Hz: | <8 milliohms |
| Dynamic Range: | 115dB |
Digital Inputs: |
|
| Maximum Data Input Rate | |
| 24bit Data at 192KS/s: | SPDIF RCA x2, TOSLINK x2 |
| 24bit Data at 96KS/s: | USB |
Analog Inputs: |
|
| Line in impedance: | 11 Kohms |
| Phono in impedance: | 47 Kohms//150pF |
| Phono accuracy: | +/-0.5dB, 50Hz-15kHz |
General: |
|

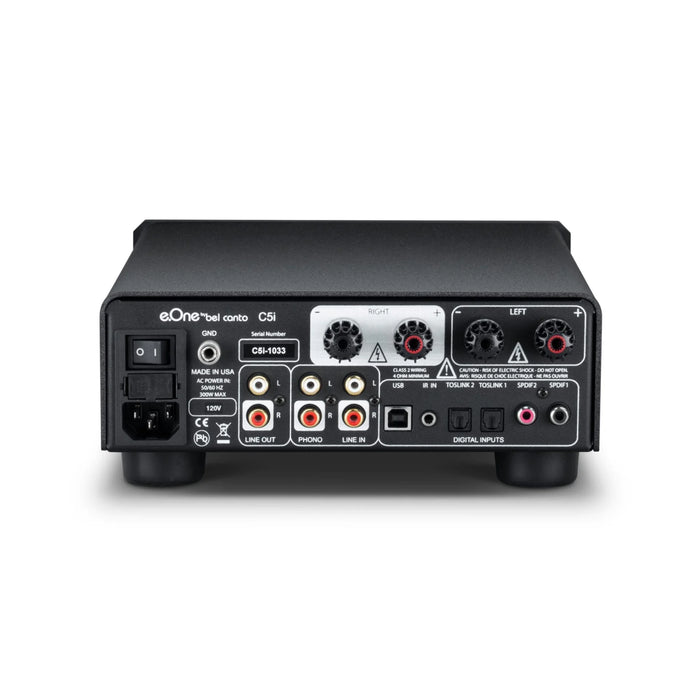

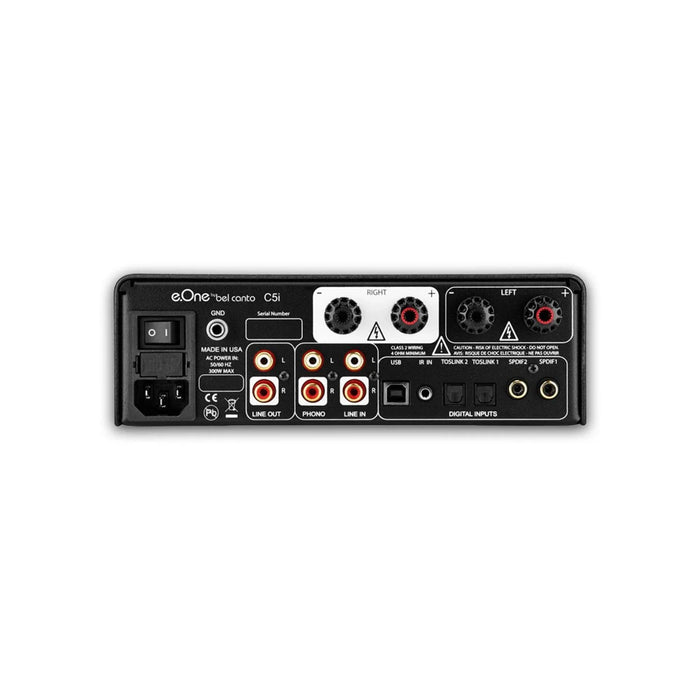

| Output connections: | 2-sets of WBT NextGen Binding Posts, RCA Line Out, Headphone Output |
| Headphone Output Current and Voltage Level: | 300mA peak at 4Vrms |
| Power On usage: | 14W |
| Power Off usage: | 0.0W |
| Internally Set Operating Voltages: | 100-120VAC or 230-240VAC 50/60 Hz |
| Size: | 8.5 x 3.5 x 12?, 216 x 88 x 305mm (W x H x D) |
| Weight: | 13lbs, 6.5Kg |
