Ayre AX-5 Twenty Integrated Amplifier - Preamplifier

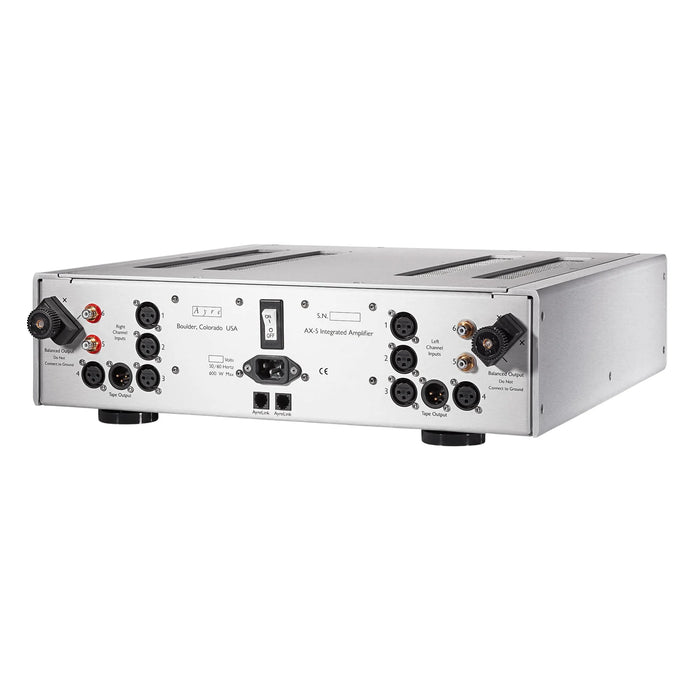

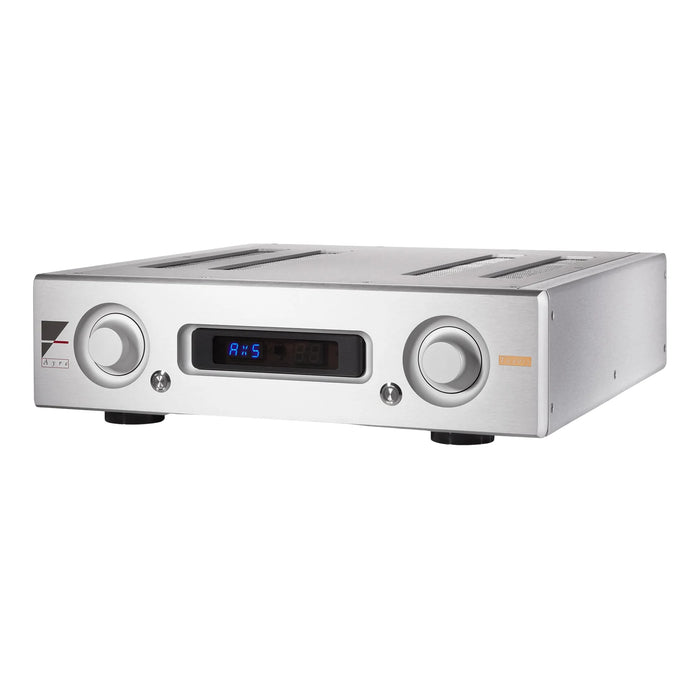

Ayre AX-5 Twenty Integrated Amplifier

by Ayre
₹ 2,070,000 - ₹ 2,070,000
₹ 2,070,000
₹ 2,070,000
₹ 2,070,000 - ₹ 2,070,000
₹ 2,070,000

Taxes & Shipping Included

Featuring Ayre’s Double Diamond output stage, our exclusive EquiLock circuitry, and a Shallco solid-silver contact switch for gain control, this fully-discrete, fully-balanced, zero-feedback integrated amplifier provides a complete solution for your modern music system.
The key to perfecting the AX-5 was to incorporate the Variable Gain Technology (VGT) of the award-winning Ayre KX-R preamplifier into the power amplifier section. The addition of ultra-transparent FET input selector switches completed the transformation of a basic power amplifier into a compact one-box solution which will become the heart of your high-performance audio system.


Features
  • Variable Gain Transimpedance (VGT) volume circuit
  • 46 step volume control, each of 1.5 dB
  • Ayre’s new Diamond output stage
  • Ayre’s exclusive Equilock circuit
  • Linear analog power supply
  • zero-feedback and fully-balanced discrete circuitry
  • High-speed circuit board material
  • Custom developed audio-grade resistors
  • Ayre Conditioner power line RFI filter
  • AyreLink communication system
  • Made in USA
Specifications

    Power Output
    125 watts per channel continuous into 8 ohms
    250 watts per channel continuous into 4 ohms

    Gain
    26 dB

    Input Impedance
    1 MΩ unbalanced inputs
    2 MΩ balanced inputs (1 MΩ per phase)

    Frequency Response
    DC – 250 kHz

    Power Consumption
    48 watts in low-current consumption mode
    230 watts in operating mode, no signal

    Dimensions
    17.25″ W x 18.75″ D x 4.875″ H
    (44cm x 48cm x 12cm)

    Weight
    48 pounds (22 kg)
