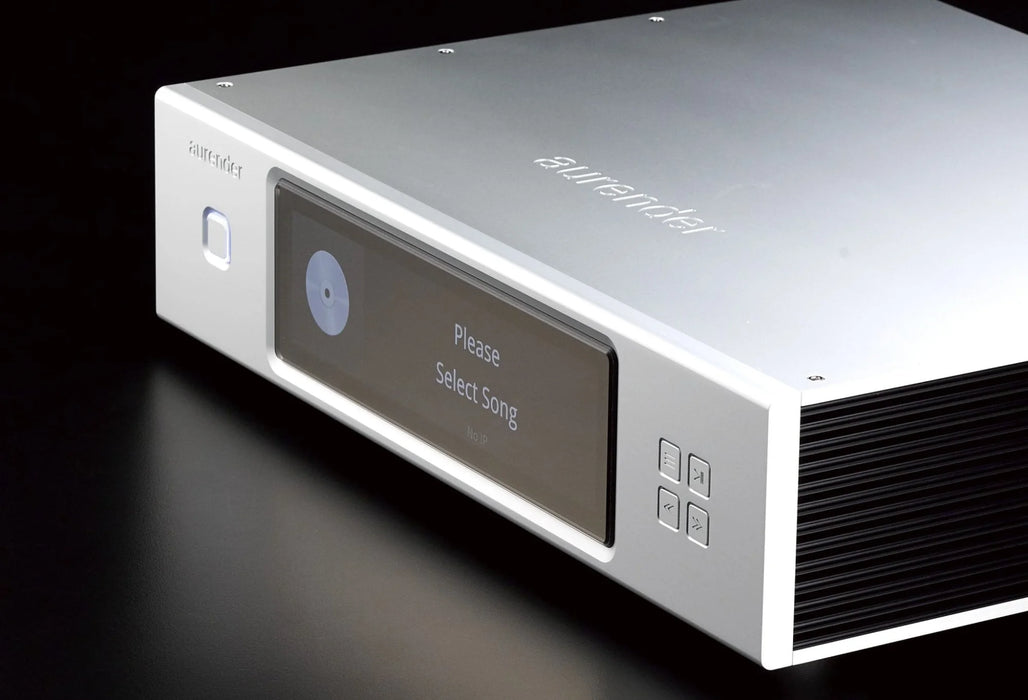

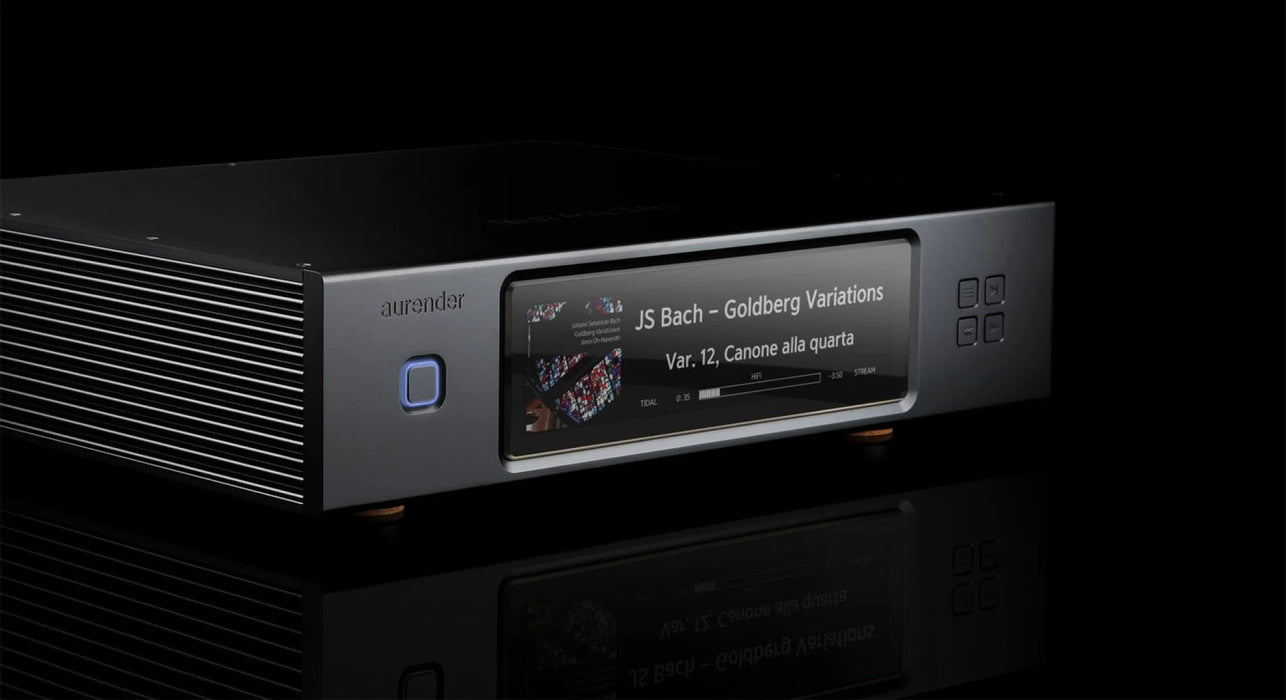

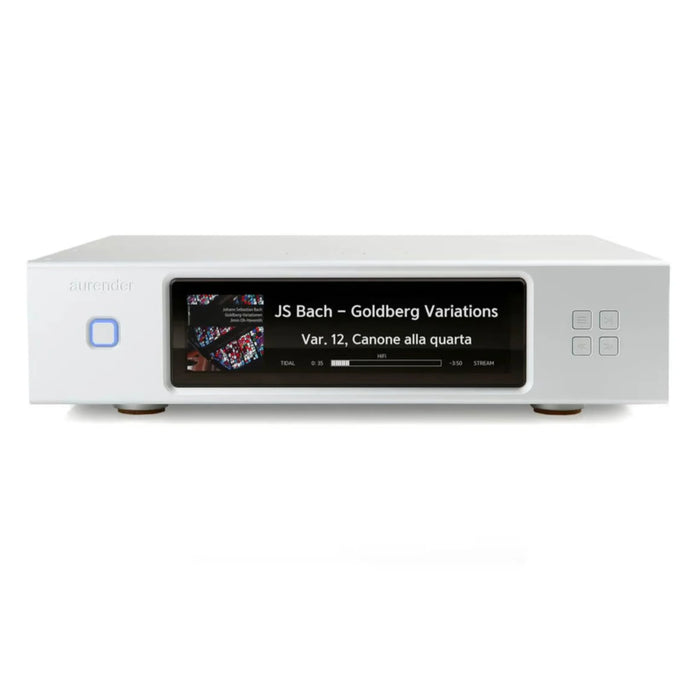

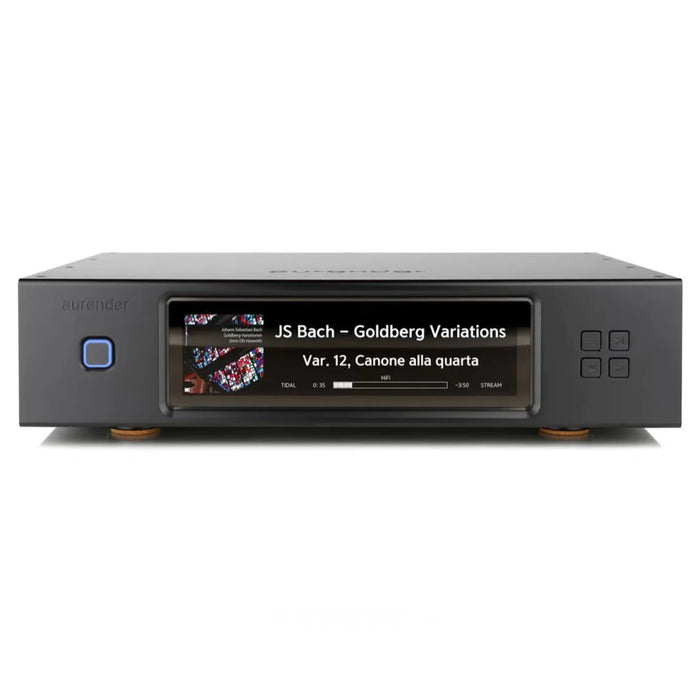

Aurender N20 High-Performance Caching Music Server Streamer

Ultra-High-Quality SPDIF and AES/EBU Digital Audio Outputs

The N20’s AES/EBU, BNC, Coaxial, and Optical outputs provide a superior musical presentation with some DACs due to the superior clock and oscillator. As opposed to asynchronous USB connections, where the DAC pulls packets of information from the player, N20’s SPDIF audio outputs push the signal out to the DAC at intervals defined by the on-board precision OCXO clock. With a clock this precise, once heard, you’ll want to use it.

Oven-Controlled Crystal Oscillator (OCXO) for Long-Term Jitter Reduction

OCXOs are among the most accurate and stable clocks in use today, and are orders of magnitude more accurate and stable than commonly used ordinary crystal oscillators usually found in computers. Temperature changes cause crystal oscillations to fluctuate, which can lead to jitter in the digital audio signal. Moreover, ordinary crystals are much less stable and lose accuracy over time. In OCXO clocks, a very stable, high-grade crystal oscillator is enclosed in a compartment and kept at a constant temperature to maintain an absolutely stable flow of information.

Precision DSD-to-PCM Conversion by FPGA

Many DACs support DSD decoding only on their USB inputs, but not on SPDIF. Additionally, some excellent DACs still in use are non-DSD compliant altogether. That’s why the Aurender N20 (and W20SE and N10) all feature this extremely high quality method of DSD-to-PCM conversion on-the-fly by FPGA. The resulting sampling frequency output is user selectable between 88.2kHz and 176.4kHz, gain is adjustable 1-6dB and a low-pass filter accommodates 24Hz, 30Hz, 40Hz and 50Hz settings.

FPGA-Based All-Digital Phase-Locked Loop System

An All-Digital Phase-Locked Loop system (ADPLL) incorporating Field-Programmable Gate Arrays (FPGA) with OCXO clocks precisely times digital audio data transmissions and minimizes jitter to below negligible levels. The results are sonically audible with better image focus, a wider, deeper, taller soundstage presentation and an uncanny analog-like organic quality.

Dedicated USB Audio Class 2.0 Output with Ultra-Low Noise Power Circuitry

The N20’s dedicated USB Audio Class 2.0 output is designed to deliver an exceptionally transparent audio signal free of noise and jitter, and it is shielded from outside electronic interference. The improved module-type design is chassis mounted for strength and durability.

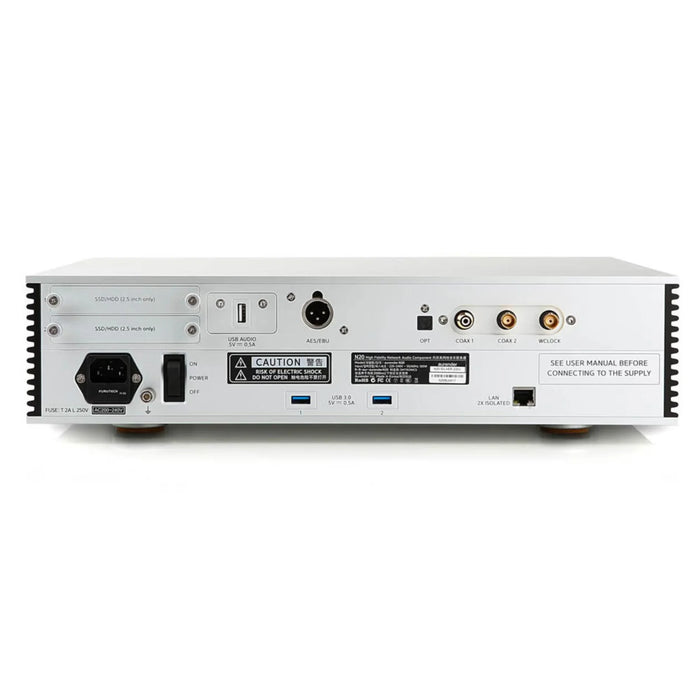

Dedicated Word Clock Input

The N20 offers support for an external word clock which can, in some cases, improve upon the SPDIF audio performance in terms of musical rhythm, pace, timing, and phase coherance. If the user wants to use a separate master clock and SPDIF interconnects, a music server with master clock input is needed as well as a DAC with master clock input. The external word clock can then be used to synchronize timing between both digital devices ensuring jitter-free and time-perfect data transmission. N20 can accept word clocks with the following frequencies: Master clock: 10MHz, 12.8MHz, Word clock: 44.1KHz and 48KHz in multiples from 1 to 512. N20 supports both word clock (dCS, DACs or similar) or Master Clock (MSB DACs or similar) inputs.

Uninterrupted Power Supply (UPS)

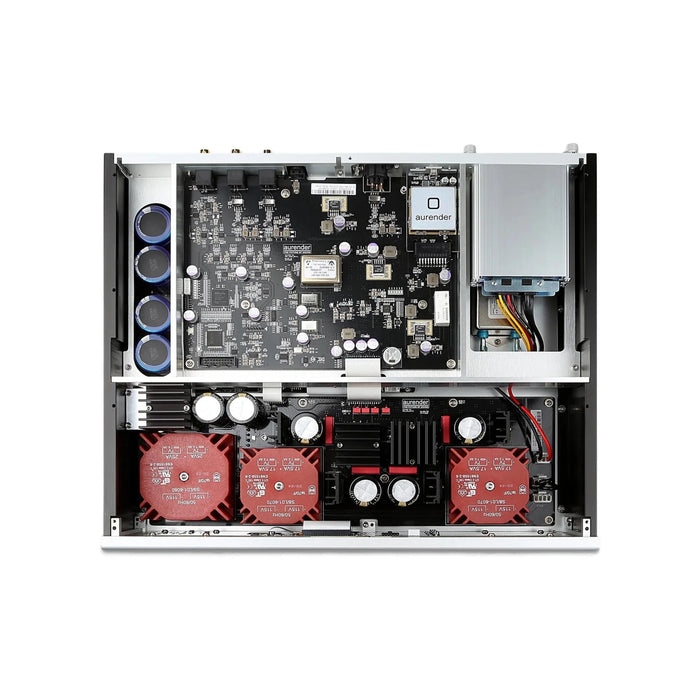

At the heart of any music server is, essentially, a computer. Like any desktop computer, it doesn’t like when its electrical connection is abruptly terminated. In the case of an AC power outage or momentary “brownout”, the N20 is protected by a clever super capacitor-based power supply which allows the unit to stay powered on long enough to automatically power down. This prevents the system and hard drives from being corrupted by the loss of AC power.

User-Installable Hard Drive Storage with Solid-State Caching Drive for Playback

The N20 provides unparalleled flexibility in terms of the type and capacity of drive that can be fitted. Each of the two trays on the rear panel can be fitted with a 1TB/2TB/4TB or 5TB HDD or a 1TB/2TB/4TB or 8TB SSD. You can choose to install one or both to accommodate your current capacity and/or future expansion of your digital files. If installed, these internal hard drives provide storage for your music library and an internal 500GB solid-state drive is used to cache music for playback. If a selected song or album is already cached to the solid-state drive, the storage drive remains idle. This minimizes the system’s overhead resources in se, and wear and tear on the hard drive. Additionally, by caching songs to the solid-state drive for playback, electrical and acoustic noise resulting from spinning disks, moving heads and motors is completely eliminated.

USB HDD and NAS (Network-Attached Storage) Support

The most streamlined use case occurs when music is stored on the Aurender’s internal storage. However, the Aurender platform is also capable of seamlessly integrating content stored on a NAS, external USB HDD or thumb drive. Two USB 2.0 ports on the rear panel are used to import content or playback from the attached storage device. If importing content, Aurender’s SmartCopy feature can be used for bulk transfer or to selectively copy specific content onto the internal hard drives.

Upsampling and Critical Listening Mode

N20 offers the user the ability to upsample any lower resolution content to a user determined sampling rate. Three selections are available to choose from: 44.1/48kHz, 88.2/96kHz and 176.4/192kHz. Since results vary from server-to-DAC combinations, experimentation is in order to determine the sonic results. Upsampling effects only the system’s SPDIF digital outputs, not USB. Critical Listening Mode is a feature that allows the user to defeat any background tasks and circuitry that are non-essential to playing music. By defeating the display illumination and disabling other background functions, system resources are reduced for the best possible sound quality.

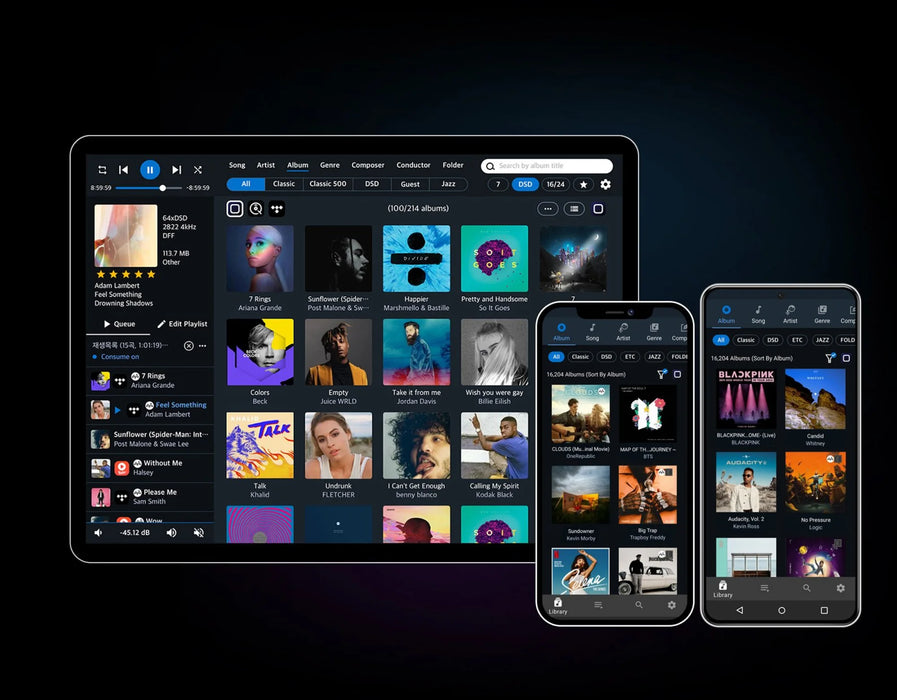

Aurender Conductor App Packed with Convenient Features for Full-Function Control

The Aurender Conductor App turns the iPad, iPhone, Android phones and tablets into a versatile user interface for all Aurender music servers. All settings and functions of the Aurender server can be easily accessed through the Settings menu, and Conductor comes with extensive features to make browsing and playing high resolution music collections a breeze. Two streaming services, Qobuz and Tidal (subscription required) are embedded within the Conductor App allowing easy access to millions of high-resolution albums. Content found on streaming services can be easily integrated into your main file library, making it easy to combine and compile content in one location.

MQA Core Decoder (optional in-app purchase)

Aurender’s MQA Core Decoder upgrade enables MQA Core or first unfold allowing playback of MQA files at up to 88.2kHz or 96kHz. This is beneficial if using a non-MQA DAC as Core Decoding will deliver some of the MQA benefit from MQA encoded content. Additionally, MQA Core Decoder will work with DACs that perform MQA rendering which is the second stage of MQA decoding. Together, they provides full MQA decoding.

Remote Internet Technical Support

Sending a Remote Support Request through the Aurender App allows engineers to quickly diagnose and correct problems over the Internet. This service can correct for file, software or firmware issues and is a service provided free of charge.
