Audio Technica AT-VM95C/H Headshell/Cartridge Combo Kit - Phono Cartridge

Audio Technica AT-VM95C/H Headshell/Cartridge Combo Kit

by Audio Technica
Sold out
₹ 7,130 - ₹ 7,130
₹ 7,130
₹ 7,130
₹ 7,130 - ₹ 7,130
₹ 7,130

Taxes & Shipping Included

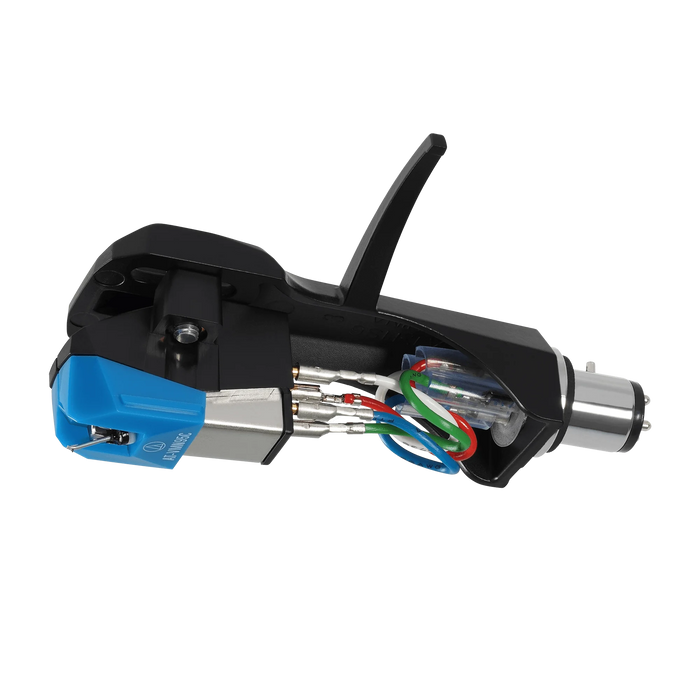

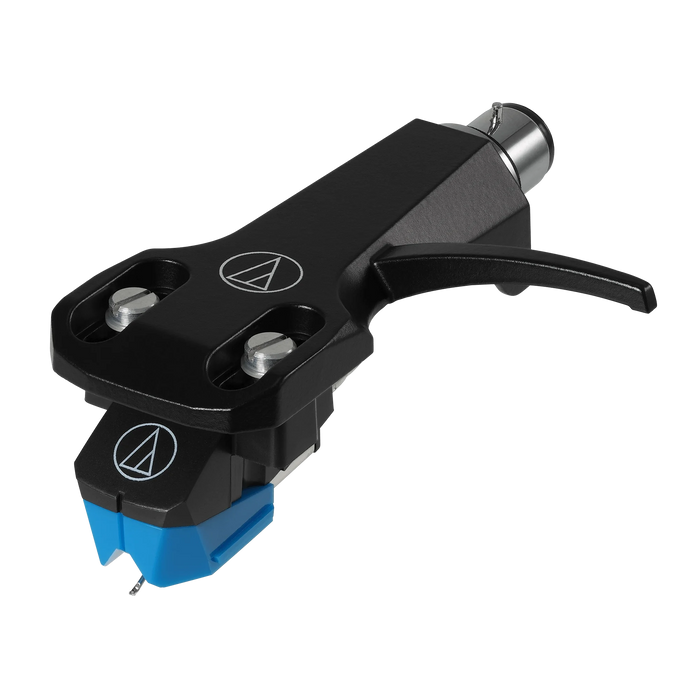

The AT-VM95C/H combo kit includes the AT-VM95C dual moving magnet cartridge premounted on the AT-HS6BK headshell.



Specifications
Frequency Response 20 - 20,000 Hz
Channel Separation 18 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000 Ω
Coil Impedance 3.3 kΩ (1 kHz)
DC Resistance 485 Ω
Coil Inductance 550 mH (1 kHz)
Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 2.5 dB (1 kHz)
Stylus Shape Conical
Cantilever Aluminium Pipe
Static Compliance 17 x 10 – 6 cm / dyne
Dynamic Compliance 6.5 x 10 – 6 cm / dyne (100 Hz)
Mounting 1/2” centres
Dimensions 21.2 × 21.4 × 62.4 ( H x W x D mm)
Model AT-VM95C/H
Recommended Load Capacitance 100-200 pF
Replacement Stylus AT-VMN95C
Stylus Size 0.6 mil
Type VM Stereo Dual Magnet
Weight 15.5 g
Wire Used for Coil T.P. Copper
