Audio Technica AT-VM750SH Dual Moving Magnet Cartridge
Sold out
Original price
₹ 41,700
-
Original price
₹ 41,700
Original price
₹ 41,700
₹ 41,700
₹ 41,700
-
₹ 41,700
Current price
₹ 41,700
Taxes & Shipping Included

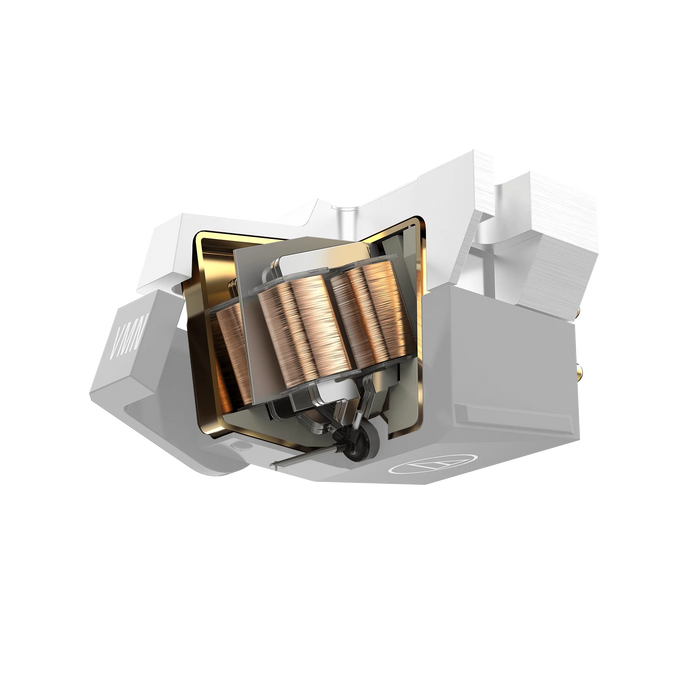

The VM750SH Shibata stylus cartridge is a premier 700 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM750SH is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s Shibata stylus provides greater surface contact with the record groove than an elliptical stylus does, resulting in the pickup of ultra-high frequencies with less groove stress and distortion. Includes mounting hardware.
Specifications
| Frequency Response | 20 - 27,000Hz |
|---|---|
| Channel Separation | 30dB (1kHz) |
| Vertical Tracking Angle | 23˚ |
| Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
| Stylus Construction | Nude Square Shank |
| Recommended Load Impedance | 47,000Ω |
| Coil Impedance | 2,700Ω (1kHz) |
| Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
| Output Channel Balance | 1.0dB (1kHz) |
| Stylus Shape | Shibata |
| Cantilever | Aluminium Tapered Pipe |
| Static Compliance | 40 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100Hz) |
| Mounting | 1/2” centres |
| Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
| Accessories Included | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1 |
| Recommended Load Capacitance | 100 – 200pF |
| Replacement Stylus | VMN50SH |
| Stylus Size | 0.26 x 2.7 mil |
| Type | VM Type |
| Weight | 8.0g |
