Audio Technica AT-OC9XSL Dual Moving Coil Cartridge

Sold out
Original price ₹ 70,330 - Original price ₹ 70,330
Original price ₹ 70,330
₹ 70,330
₹ 70,330 - ₹ 70,330
Current price ₹ 70,330

Taxes & Shipping Included

The AT-OC9XSL Dual Moving Coil cartridge with special line contact stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that dramatically increase the magnetic energy, and the nude special line contact stylus on a boron cantilever that tracks the record groove with ultimate accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.



Specifications
Frequency Response 20 - 50,000 Hz
Channel Separation 28 dB (1 kHz)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction Nude rectangular shank
Recommended Load Impedance Min 100 Ohms
Coil Impedance 12 Ohms (1 kHz)
DC Resistance 12 Ohms
Coil Inductance 25 μH (1 kHz)
Output Voltage 0.4 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 0.5 dB (1 kHz)
Stylus Shape Special Line Contact
Cantilever 0.28 mm Ø nude boron
Static Compliance 22 x 10 – 6 cm / dyne
Dynamic Compliance 18 x 10 – 6 cm / dyne (100 Hz)
Mounting 1/2” centers / Threaded inserts
Cartridge Weight 7.6 g
Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm

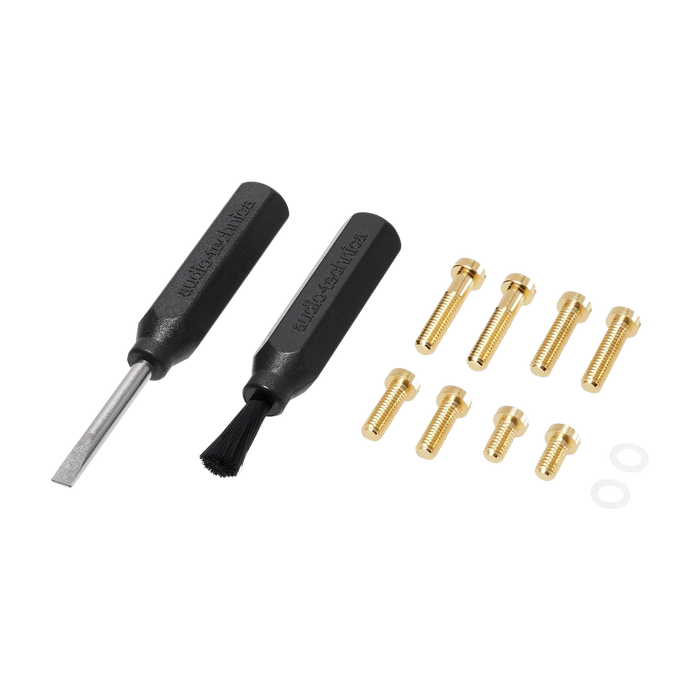

Accessories Included 1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
Body Material Aluminium
Model AT-OC9XSL
Stylus Size 1.5 x 0.28 mil
Terminal Pins Brass
Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
    Description

    The AT-OC9XSL Dual Moving Coil cartridge with special line contact stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that dramatically increase the magnetic energy, and the nude special line contact stylus on a boron cantilever that tracks the record groove with ultimate accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.



    Specifications
    Frequency Response 20 - 50,000 Hz
    Channel Separation 28 dB (1 kHz)
    Vertical Tracking Angle 20 degrees
    Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
    Stylus Construction Nude rectangular shank
    Recommended Load Impedance Min 100 Ohms
    Coil Impedance 12 Ohms (1 kHz)
    DC Resistance 12 Ohms
    Coil Inductance 25 μH (1 kHz)
    Output Voltage 0.4 mV (@ 1 kHz, 5 cm/sec)
    Output Channel Balance 0.5 dB (1 kHz)
    Stylus Shape Special Line Contact
    Cantilever 0.28 mm Ø nude boron
    Static Compliance 22 x 10 – 6 cm / dyne
    Dynamic Compliance 18 x 10 – 6 cm / dyne (100 Hz)
    Mounting 1/2” centers / Threaded inserts
    Cartridge Weight 7.6 g
    Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
    Accessories Included 1 non magnetic screw driver
    1 brush
    2 washers
    4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
    1 plastic protector
    Body Material Aluminium
    Model AT-OC9XSL
    Stylus Size 1.5 x 0.28 mil
    Terminal Pins Brass
    Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
