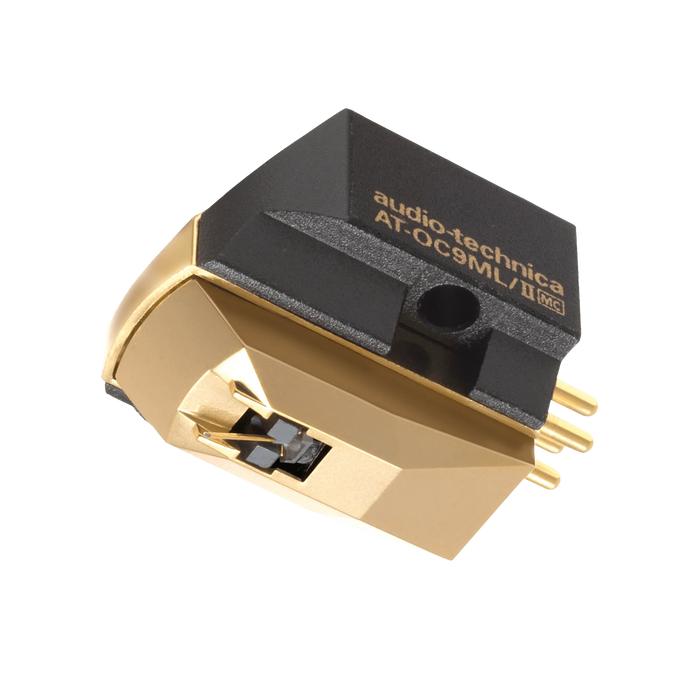

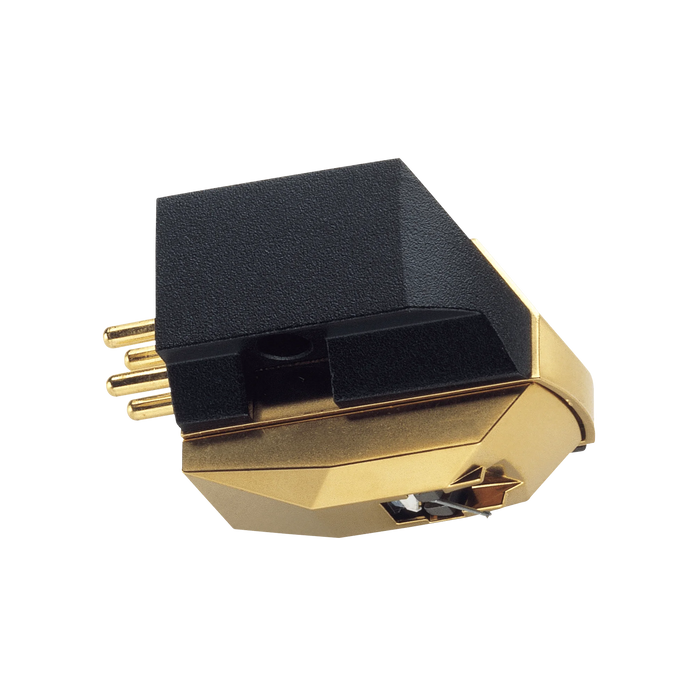

Audio Technica AT-OC9ML/II Dual Moving MicroCoil™ Cartridge
Sold out
Original price
₹ 49,150
-
Original price
₹ 49,150
Original price
₹ 49,150
₹ 49,150
₹ 49,150
-
₹ 49,150
Current price
₹ 49,150
Taxes & Shipping Included
Moving coil cartridge with MicroLine® diamond tip, for the best in clarity, transparency, precise stereo imaging, lower distortion and even wear for extended vinyl and stylus life. A-T Vector-Aligned design, with two moving coils mounted at 90 degrees in place of the two moving magnets.
Specifications
| Frequency Response | 15-50,000 Hz |
|---|---|
| Channel Separation | 31/21 (dB at 1 kHz/10 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.25-1.75 grams |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | 100 ohms |
| Coil Impedance | 12Ω (1kHz) |
| DC Resistance | 12Ω |
| Coil Inductance | 25µH (1kHz) |
| Output Voltage | 0.4 (mV at 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.0 dB |
| Stylus Shape | MicroLine® |
| Cantilever | Gold-plated boron |
| Static Compliance | 35×10-6cm/dyne |
| Dynamic Compliance | 9×10-6cm/dyne (100Hz) |
| Mounting | Half-inch |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |
| Accessories Included | 1 non magnetic screw driver; 1 brush; 2 washers; 2 x 13.5 mm mounting screws; 2 x 18 mm mounting screws; 1 plastic protector; |
| Body Material | Aluminium |
| Mounting Feature | Half-inch mount |
| Stylus Curvature Radius | MicroLinear™ |
| Type | Dual Moving Coil |
| Weight | 8.0g |
| Notes | Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. |
