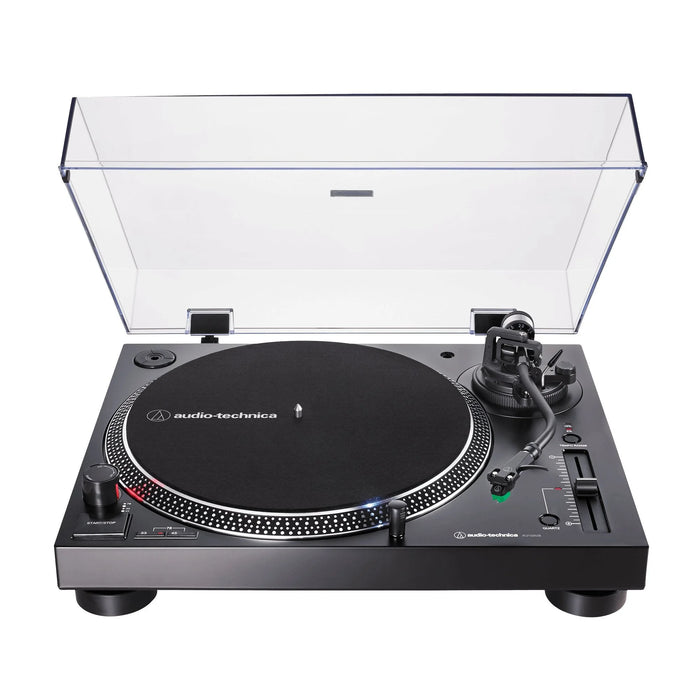

Audio Technica AT-LP120XUSB Direct-Drive Turntable (Analog & USB)
An update of the critically acclaimed AT-LP120-USB, this turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Whether using with your home stereo system or your computer, the AT-LP120XUSB’s professional controls give you the power to shape your high-fidelity listening experience.
Features
- Experience your vinyl’s high-fidelity audio directly or convert it to digital
- Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
- Anti-resonance, die-cast aluminum platter
- Redesigned tonearm base and headshell for improved tracking and reduced resonance
- Integral Dual Magnet™ phono cartridge with replaceable diamond stylus (ATN3600L)
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Built-in switchable phono pre-amplifier for phono- or line-level output
- Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)
- Includes: detachable RCA output cable (3.5 mm male to dual RCA male), 45 RPM adapter, and removable hinged dust cover
Specifications
Type | fully automatic |
---|---|
Motor | DC servo-controlled |
Drive Method | Belt-drive |
Speeds | 33-1/3 RPM, 45 RPM |
Turntable Platter | Aluminium |
Wow and Flutter | Less than 0.25% (WTD) @ 3 kHz (JIS) |
Signal-to-Noise Ratio | >50 dB (DIN-B) |
Output Level | Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 150 mV nominal at 1 kHz, 5 cm/sec |
Phono Pre-Amp Gain | 36 dB nominal, RIAA equalized |
USB Function | PC or Mac with an available USB port (USB1.1 or higher) Windows 7 or above, or Mac OS X or above |
Power Supply Requirements | 115/230V AC, 60/50 Hz |
Dimensions | 359.5 mm x 97.5 mm x 373.3 mm |
Weight | 2.6 kg |
Accessories Included | 3.5 mm (1/8") mini-plug (male) to dual RCA (male) output cable 45 RPM adapter Removable hinged dust cover |
