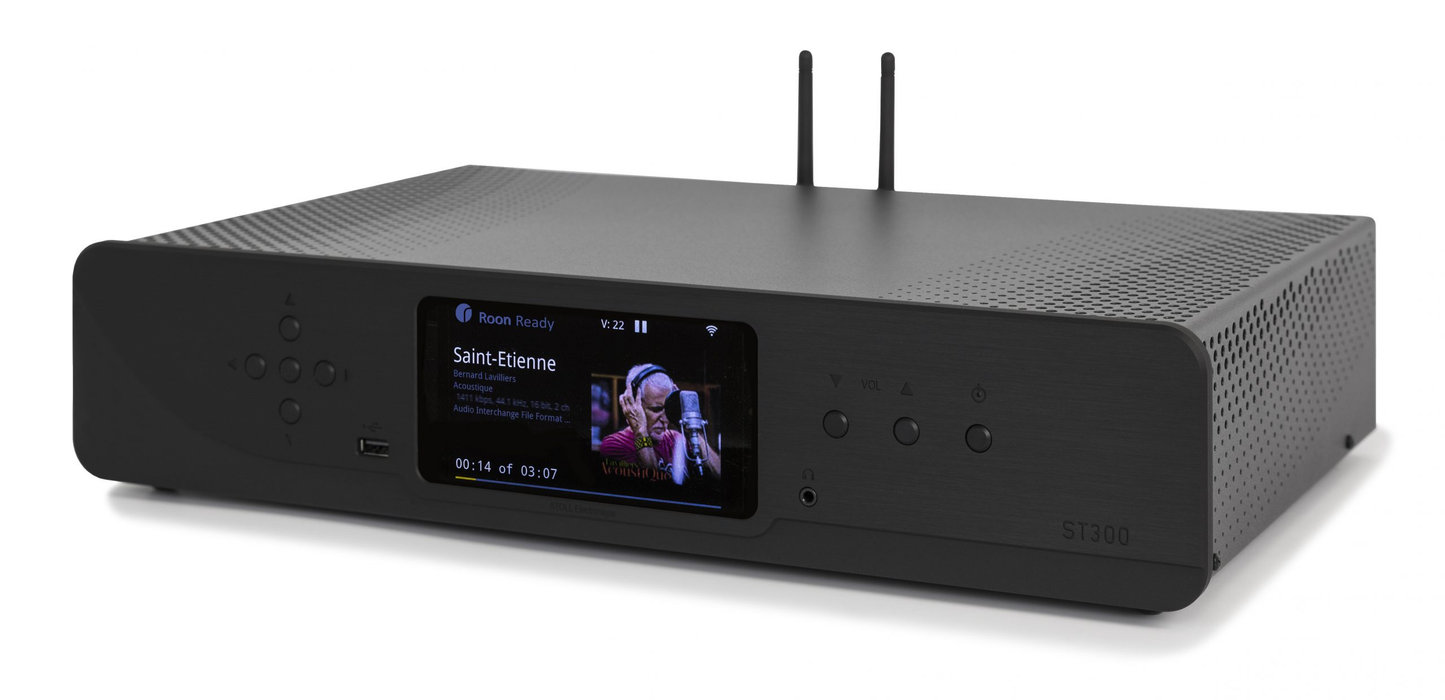

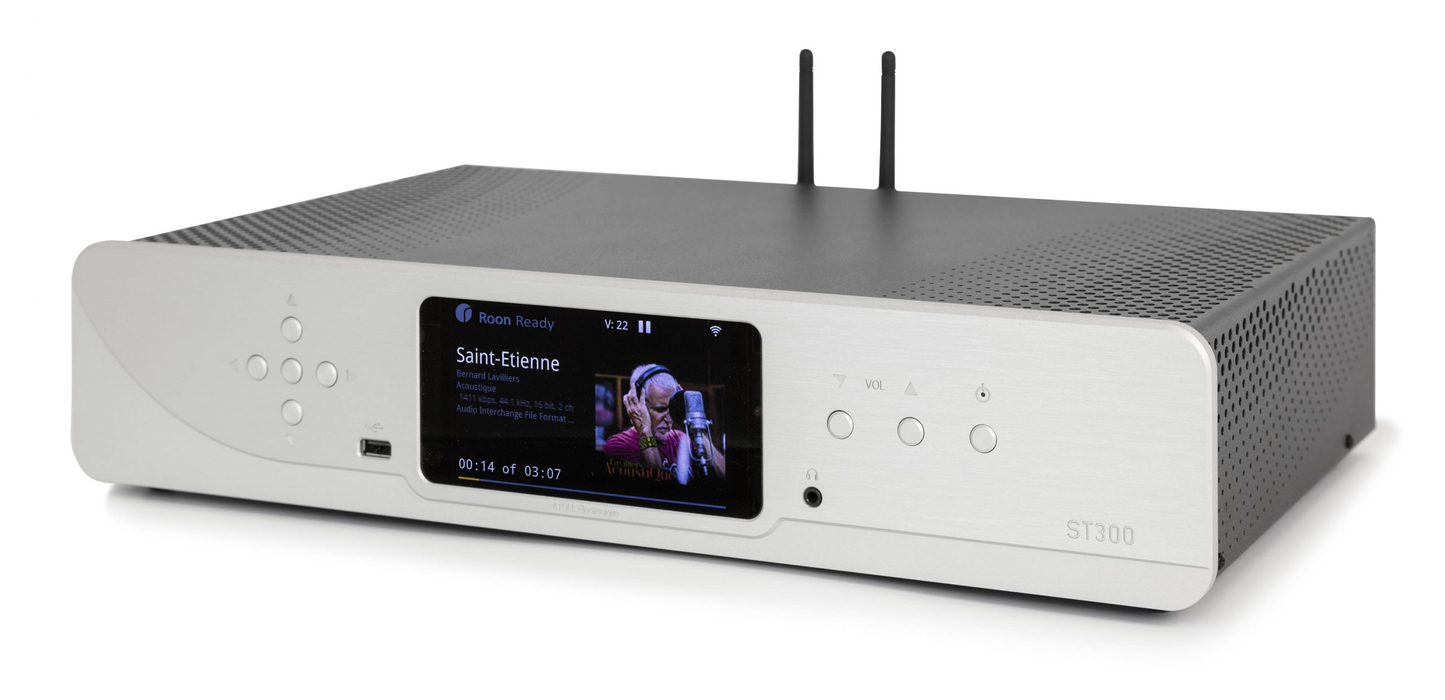

Atoll ST300 Signature Music Streamer

Atoll ST300 Signature Music Streamer

by Atoll
₹ 440,000 - ₹ 440,000
₹ 440,000
₹ 440,000
₹ 440,000 - ₹ 440,000
₹ 440,000

Taxes & Shipping Included

Color: Black

Whether it’s listening to high-definition streaming music, locally from your network, from a USB key, a hard drive, via Bluetooth®, or via your favourite internet radios, our network player ST300 Signature is totally adapted to the current needs related to the reading of dematerialized music files. It embeds a high-performance converter and can be used as a pure source or as a preamplifier.

Features
  • 8 mm brushed aluminium front.
  • 1×30 VA linear transformer + 2×10 VA low-noise toroidal transformers (audio).
  • Total of capacitors: 69 000 µF.
  • ESA series CLARITY CAP audio MKP link capacitors.
  • Double converter BURR-BROWN PCM1792A:
    • Dynamic: 132 dB.
    • Signal/Noise ratio: 132 dB.
  • 5″ TFT LED colour graphic display (800*480).
  • Discrete component audio stages without negative feedback in pure Class A.
  • Analogue volume management (switched resistors) that can be bypassed.
  • Specific power supply dedicated to the audio stages.
  • Specific power supply dedicated to the analog-digital audio converter.
  • Resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128.
  • Playback of audio files is supported on the network (DLNA and UPnP compatible) via wired RJ45 or WiFi connections.
  • Display of names, tags, resolutions, and album covers.
  • “Gapless” system (no cut between pieces).
  • Ability to create playlists.
  • USB-A file systems: FAT32, NTFS, EXT2/3/4.

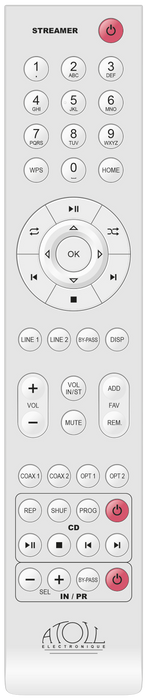

  • ATOLL “streamer” remote control supplied as standard.
  • “ATOLL Signature 2” App (Android and IOS).
  • Made in France
      Specifications

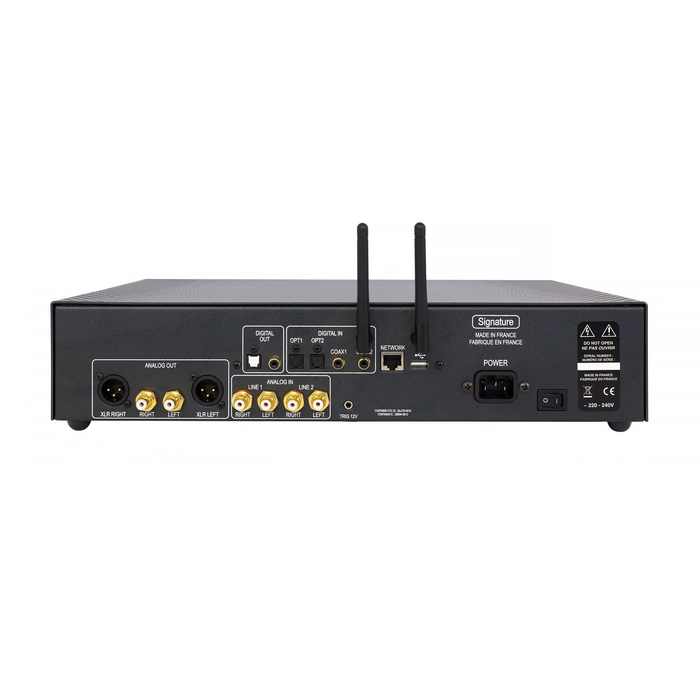

      • Audio inputs
        • 2 Stereo line inputs
        • 4 Digital inputs: 2 Coaxial, 2 Optical Toslink
        • 1 Bluetooth®
        • 2 USB-A inputs:1 front, 1 rear
      • Audio outputs
        • 1 Stereo line RCA output
        • 1 Stereo line XLR output
        • 2 Digital outputs: 1 Coaxial, 1 Optical Toslink
      • Various
        • 1 RJ45 input (network)
        • 1 Trigger output (12V)
        • 1 WIFI antenna
        • 1 Bluetooth® antenna
      • Power supply: 30 VA + 2×10 VA (audio)
      • Total of capacitors: 69 000 µF
      • Output stages: 4 discrete component stages biased in class A with no feedback
      • Dynamic: 132 dB
      • Signal/Noise ratio: 132 dB
      • Output impedance: 5,6 Ω
      • Maximum input level: 3,5 Vrms
      • Output level: 2,0 Vrms
      • Distortion at 1 kHz: 0,0004 %
      • Bandwidth: 5 Hz – 20 kHz
      • Rising time: 1,5 µs
      • Digital/analogue converter: 2×BURR-BROWN 24 bits/192 kHz
      • Dimensions: 440×284×95 mm
      • Weight: 7 Kg
