Atoll CD100 Signature CD Player - CD Player

Atoll CD100 Signature CD Player

by Atoll
₹ 163,500 - ₹ 163,500
₹ 163,500
₹ 163,500
₹ 163,500 - ₹ 163,500
₹ 163,500

Taxes & Shipping Included

The Atoll Signature Series CD players have benefited from many innovations in power supplies or audio and conversion stages. In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.

Features
  • 4 mm brushed aluminium front.
  • 8 regulated power supplies including a specific low-noise one for the converter.
  • Separate 10 VA transformers for the audio stages.
  • Current-voltage conversion stages designed by Atoll using bipolar transistors.
  • BURR-BROWN PCM1796 converter:
                – 24 bits/192 kHz.
                – Dynamic: 124 dB.
                – Signal/Noise ratio: 124 dB.
  • Original TEAC central CD mechanics.
  • Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.
  • Linear power supply for digital stages with a specific 30 VA transformer.
  • Separate linear power supply for the audio stages.
  • Double-sided circuit boards with nickel/gold finish.
  • Low consumption OLED display.
  • Reading the CD-Text.
  • Class A biased discrete component differential audio output stages.
  • Optional 24 bits/192kHz digital board for all signature series CD players.

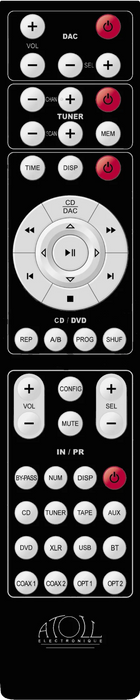

  • ATOLL global remote control.
  • Made in France
Specifications
  • Power supply: 30+10 VA
  • Total of capacitors: 13 032 µF
  • Output level: 2,10 Vrms
  • Output impedance: 5,6 Ω
  • Converter (D/A): PCM1796
  • Digital Output: Coaxial & Optical
  • Digital input: 24 bits/192 kHz
  • USB input: 24 bits/192 kHz
  • Signal/Noise ratio: 123 dB
  • Distortion at 1 kHz: 0,0005%
  • Bandwidth: 5 Hz – 20 kHz
  • Rising time: 2,0 µs
  • Dimensions (mm): 440×280×95
  • Weight: 6 Kg
Support

The Atoll Signature Series CD players have benefited from many innovations in power supplies or audio and conversion stages. In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.

  • 4 mm brushed aluminium front.
  • 8 regulated power supplies including a specific low-noise one for the converter.
  • Separate 10 VA transformers for the audio stages.
  • Current-voltage conversion stages designed by Atoll using bipolar transistors.
  • BURR-BROWN PCM1796 converter:
                – 24 bits/192 kHz.
                – Dynamic: 124 dB.
                – Signal/Noise ratio: 124 dB.
  • Original TEAC central CD mechanics.
  • Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.
  • Linear power supply for digital stages with a specific 30 VA transformer.
  • Separate linear power supply for the audio stages.
  • Double-sided circuit boards with nickel/gold finish.
  • Low consumption OLED display.
  • Reading the CD-Text.
  • Class A biased discrete component differential audio output stages.
  • Optional 24 bits/192kHz digital board for all signature series CD players.
  • ATOLL global remote control.
  • Made in France
  • Power supply: 30+10 VA
  • Total of capacitors: 13 032 µF
  • Output level: 2,10 Vrms
  • Output impedance: 5,6 Ω
  • Converter (D/A): PCM1796
  • Digital Output: Coaxial & Optical
  • Digital input: 24 bits/192 kHz
  • USB input: 24 bits/192 kHz
  • Signal/Noise ratio: 123 dB
  • Distortion at 1 kHz: 0,0005%
  • Bandwidth: 5 Hz – 20 kHz
  • Rising time: 2,0 µs
  • Dimensions (mm): 440×280×95
  • Weight: 6 Kg
