ATC SCM40A Active Floorstanding Speaker [Pair]

ATC SCM40A Active Floorstanding Speaker [Pair]

by ATC
₹ 1,310,000 - ₹ 1,310,000
₹ 1,310,000
₹ 1,310,000
₹ 1,310,000 - ₹ 1,310,000
₹ 1,310,000

Taxes & Shipping Included

Finish: Cherry

There is a distinct moment in an audiophile’s journey when the pursuit of "warmth" or "character" gives way to a hunger for absolute, unvarnished truth. It is exactly this high-stakes arena that the ATC SCM40A active floorstanding loudspeakers occupy, acting less like traditional home speakers and more like a direct, sonic conduit to the recording studio master tape. By housing bespoke, hand-wound drive units within a heavy, sealed enclosure—and pairing them with precisely tailored internal tri-amplification—ATC bypasses the endless, expensive guesswork of matching external amplifiers and speaker cables. The result is a system of uncompromising authority and microscopic detail, built specifically for the listener who demands to hear their music exactly as the artist intended, flaws and all.

Features
  • New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.
  • ATC Soft Dome mid-range driver.
  • ATC 164mm short coil bass driver.
  • All drive units incorporate massive optimised motor assemblies.
  • On-board grounded source 242 watt Class A/B Tri-amplifier.
  • Active crossover filters and overload protection.

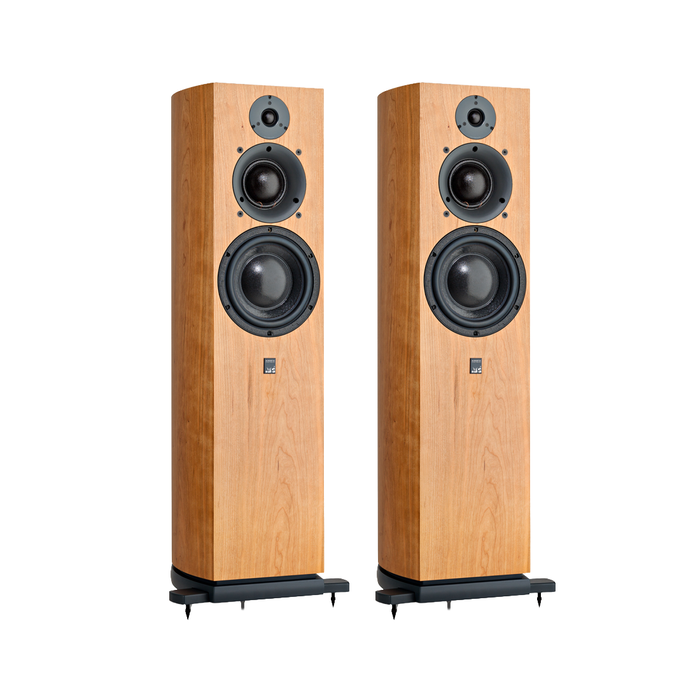

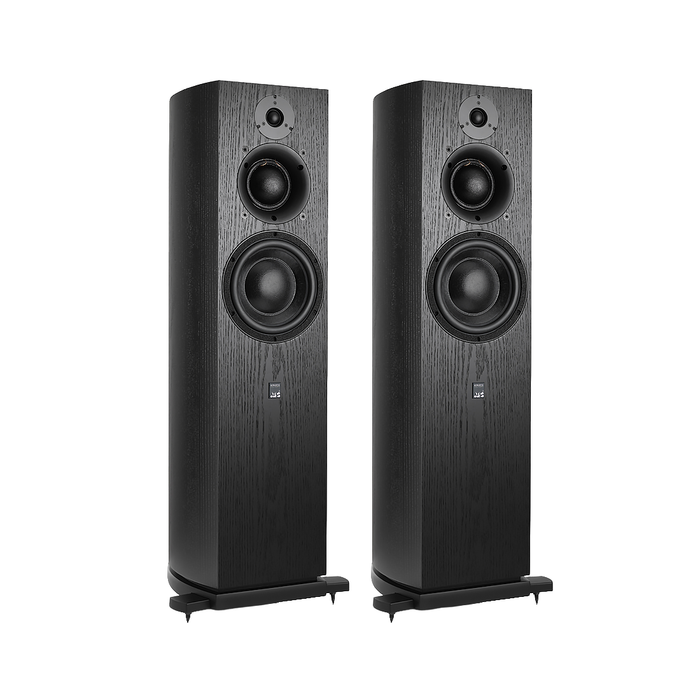

  • Veneered Finish Options – Cherry, Black Ash.

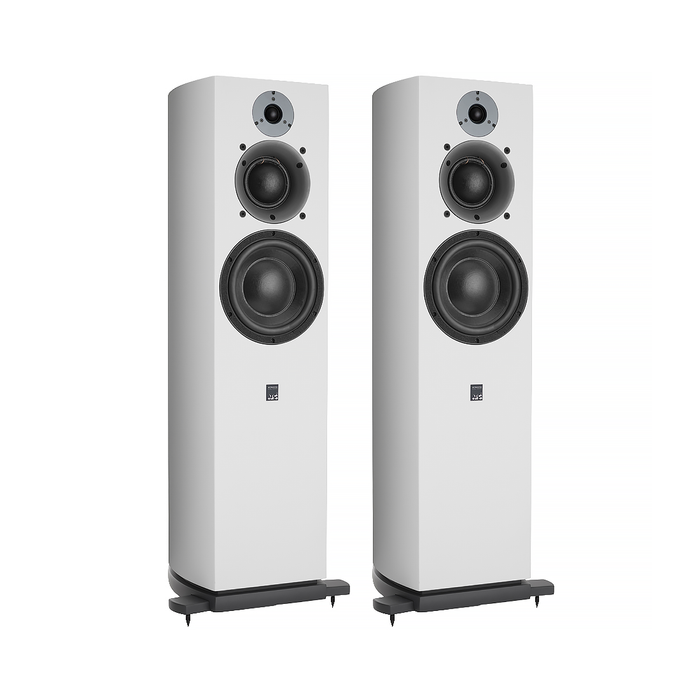

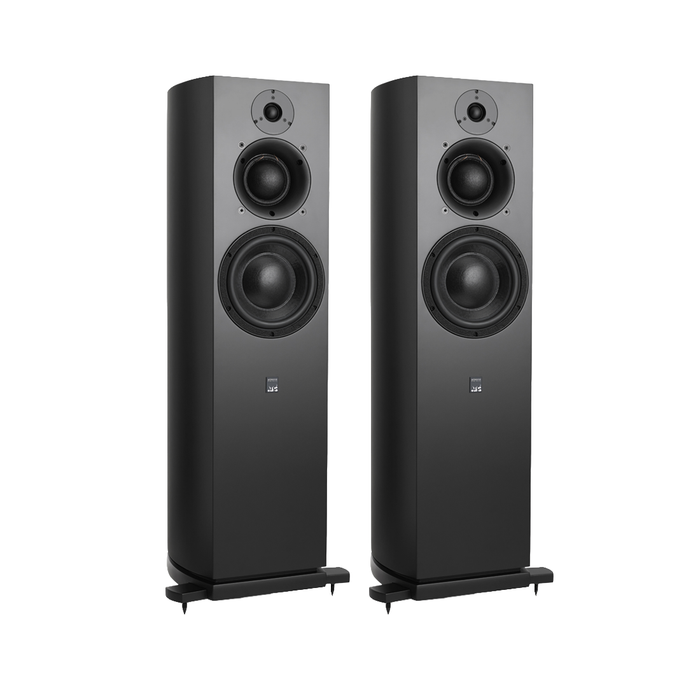

  • Painted Finish Options – Satin Black, Satin White.
  • 6 year warranty.
Specifications
  • Drivers: HF ATC 25mm dual suspension Tweeter, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
  • Matched Response: ±0.5dB
  • Frequency Response (-6dB): 48Hz-22kHz
  • Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
  • Max SPL: 112dB
  • Crossover Frequencies: 380Hz & 3.5kHz
  • Input Connector: Female XLR
  • Input sensitivity : 1V
  • Filters : 4th Order critically damped with phase compensation.
  • Overload Protection : Active FET momentary gain reduction.
  • Fault Protection : DC fault protection and thermal trip. Fault indication on rear panel mounted LED.
  • Amplifier Output: 150W LF, 60W MF, 32W HF
  • Cabinet Dimensions (HxWxD): 980 x 370 x 344mm / 38.58 x 14.56 x 13.54″ (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)
  • Weight: 36kg
  • Spikes: 4 per cabinet, M8 x 1.25mm

Support

Reviews

Description

There is a distinct moment in an audiophile’s journey when the pursuit of "warmth" or "character" gives way to a hunger for absolute, unvarnished truth. It is exactly this high-stakes arena that the ATC SCM40A active floorstanding loudspeakers occupy, acting less like traditional home speakers and more like a direct, sonic conduit to the recording studio master tape. By housing bespoke, hand-wound drive units within a heavy, sealed enclosure—and pairing them with precisely tailored internal tri-amplification—ATC bypasses the endless, expensive guesswork of matching external amplifiers and speaker cables. The result is a system of uncompromising authority and microscopic detail, built specifically for the listener who demands to hear their music exactly as the artist intended, flaws and all.
Features
  • New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.
  • ATC Soft Dome mid-range driver.
  • ATC 164mm short coil bass driver.
  • All drive units incorporate massive optimised motor assemblies.
  • On-board grounded source 242 watt Class A/B Tri-amplifier.
  • Active crossover filters and overload protection.
  • Veneered Finish Options – Cherry, Black Ash.
  • Painted Finish Options – Satin Black, Satin White.
  • 6 year warranty.
Specifications
  • Drivers: HF ATC 25mm dual suspension Tweeter, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
  • Matched Response: ±0.5dB
  • Frequency Response (-6dB): 48Hz-22kHz
  • Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
  • Max SPL: 112dB
  • Crossover Frequencies: 380Hz & 3.5kHz
  • Input Connector: Female XLR
  • Input sensitivity : 1V
  • Filters : 4th Order critically damped with phase compensation.
  • Overload Protection : Active FET momentary gain reduction.
  • Fault Protection : DC fault protection and thermal trip. Fault indication on rear panel mounted LED.
  • Amplifier Output: 150W LF, 60W MF, 32W HF
  • Cabinet Dimensions (HxWxD): 980 x 370 x 344mm / 38.58 x 14.56 x 13.54″ (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)
  • Weight: 36kg
  • Spikes: 4 per cabinet, M8 x 1.25mm
