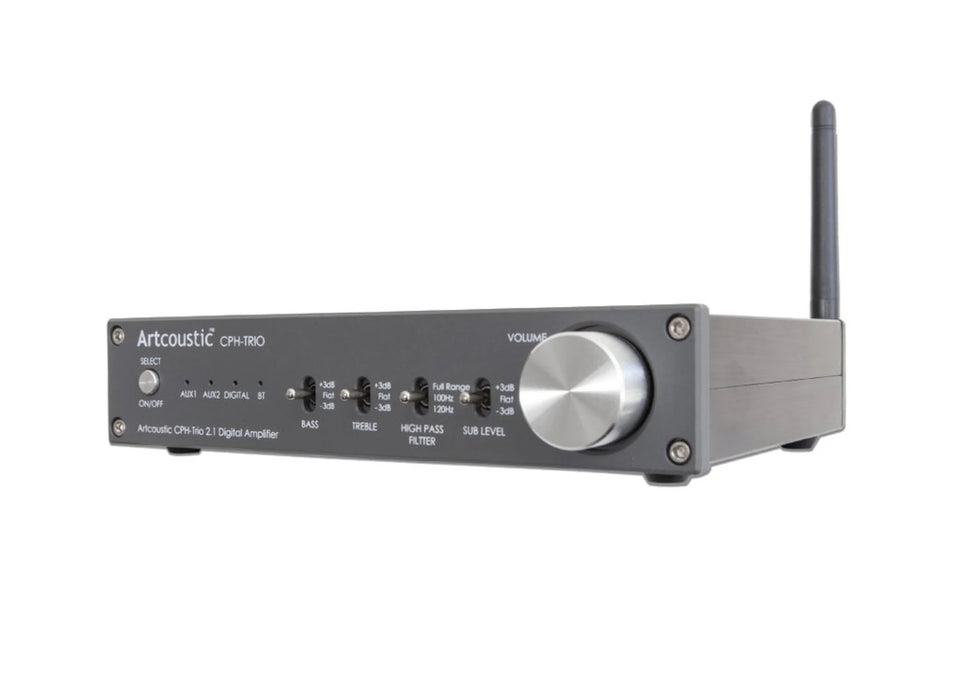

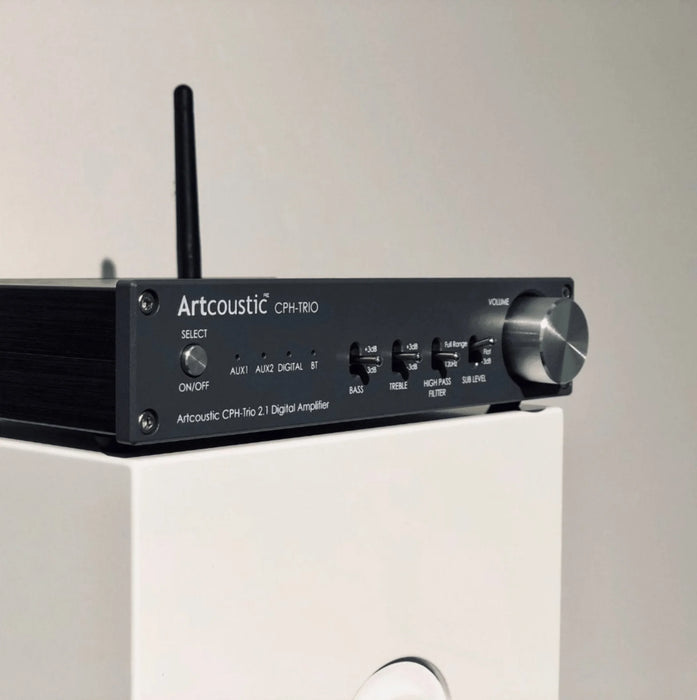

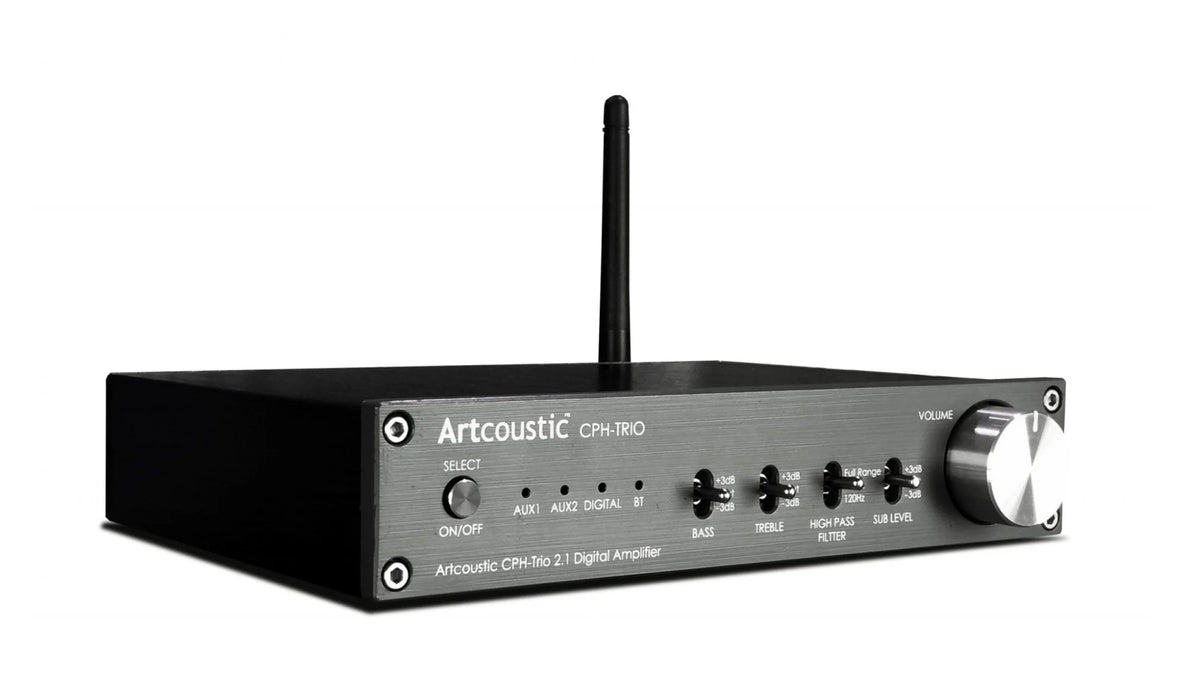

Artcoustic CPH Trio - 2.1 Installation Amplifier

The compact CPH-Trio amplifier comes with an impressive selection of features. This 2.1 digital amplifier features digital and analogue inputs to connect with virtually any device.

For loss-less audio, connect to your digital devices through the Trio Coaxial or Optical Digital input or wirelessly through the latest Hi-Fi grade, Bluetooth technology.

The CPH-Trio Amp is equipped with some simple but very handy filters such as the Artcoustic ASOF sub frequency EQ filter and a flat shelf treble filter, combined with easy-to-use volume and gain controls. It comes with an efficient and easy-to-use digital crossover, ensuring perfect acoustic integration.

• Input sensitivity control
• Power and channel select indicator

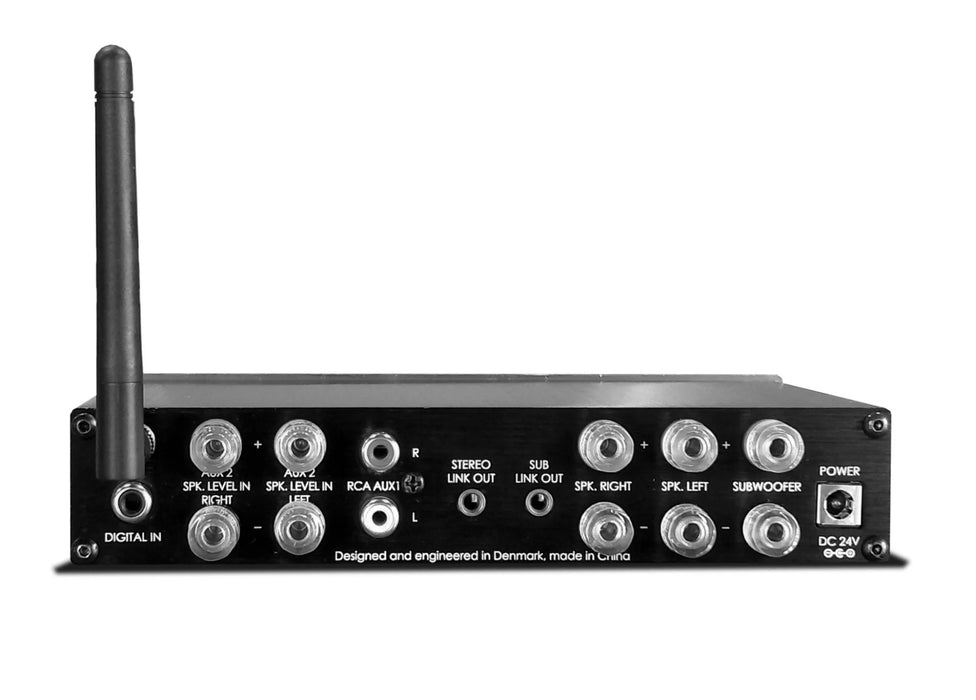

• RCA inputs
• Speaker level inputs
• Bluetooth wireless connectivity
• Stereo and subwoofer link out
• Stable performance down to 4 ohms
• Auto turn on, turn off signal sensing
• Crossover, low-pass, full range and 80 Hz 12 dB per octave
• Crossover, high-pass, full range, 80 Hz and 100 Hz 12 dB per octave
• ASOF (Artcoustic Subwoofer Optimized Filter)
• Extended protection circuit

Specifications

• Stereo: 2 x 30 watt 8 ohm
• Sub: 1 x 50 watt 8 ohm
• Full range: 20 Hz - 20 kHz ± 1 dB
• Sub Low-pass filter:  80 Hz 24 dB / oct (fixed)
• Hi-pass filter: 100 Hz & 120 Hz 24 dB/ oct
• Output terminals: Speaker level binding posts
• Connectivity: Bluetooth wireless
• Weight: 0.8 kg
• Dimensions: H: 180 W: 127 D: 48 mm
