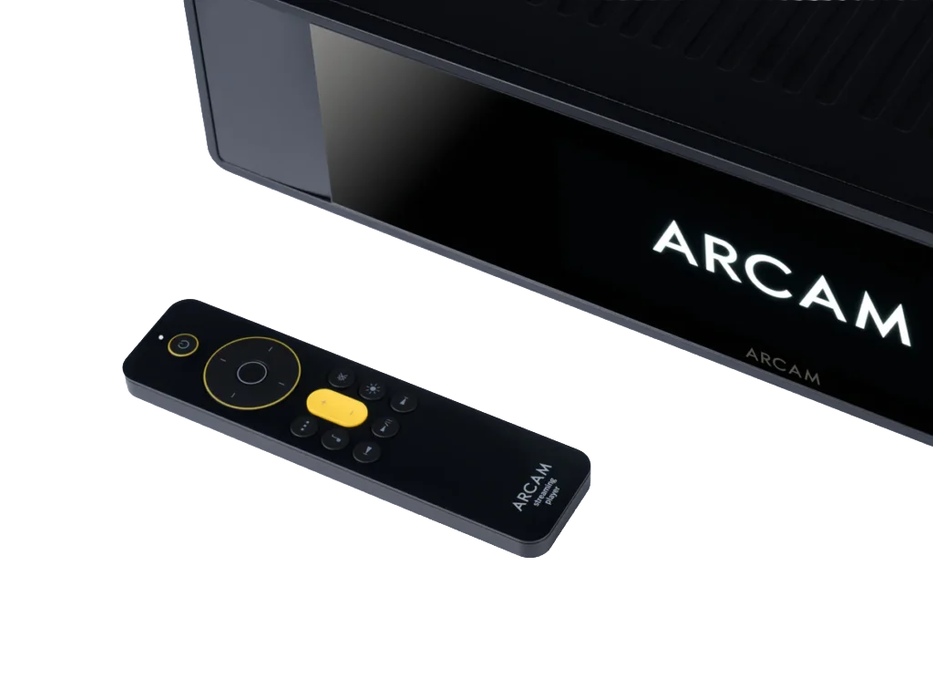

Arcam ST25 Streamer
Taxes & Shipping Included
The Arcam ST25 is an all-new digital audio player expertly designed in Cambridge, UK, with an all-new digital audio and streaming platform, new linear toroidal power supply design, new user interface and new app.

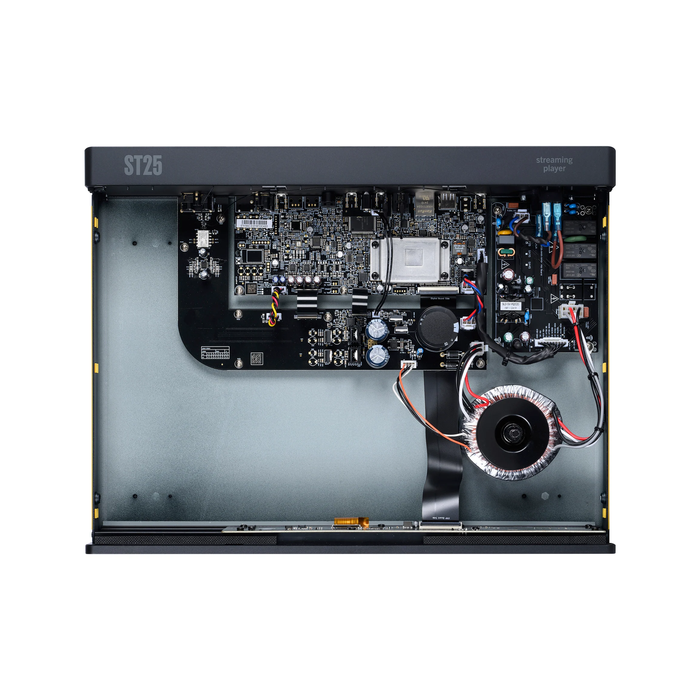

Exquisite sound quality has been achieved through thoughtful engineering of a new 6-layer digital audio and streaming platform which includes a ground plane through the entire board to keep noise and interference away from the sensitive audio components. These components include the latest Hyperstream iV DAC topology from ESS, in a balanced configuration with advanced Jitter elimination. Sound quality is enhanced further with a new linear toroidal transformer power supply design that drives the entirety of the internal operation with lower noise, and a switching supply that only operates for peak efficiency when in standby.

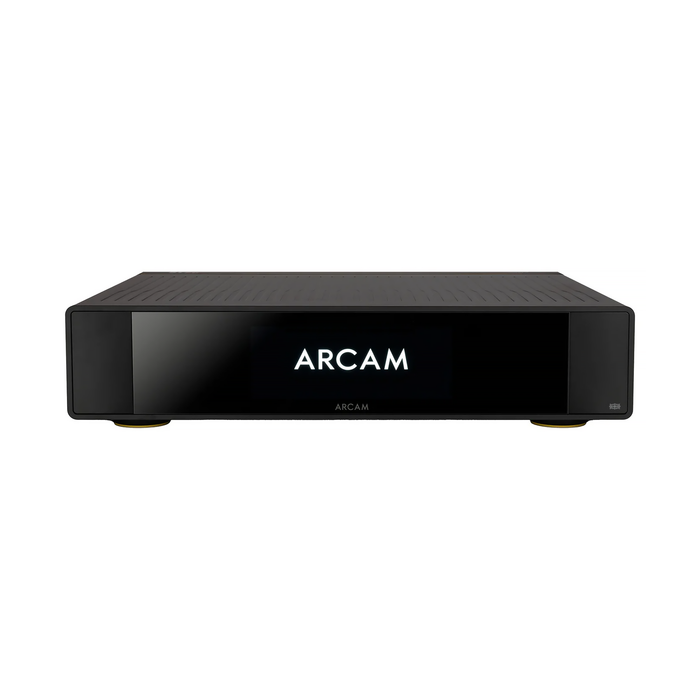

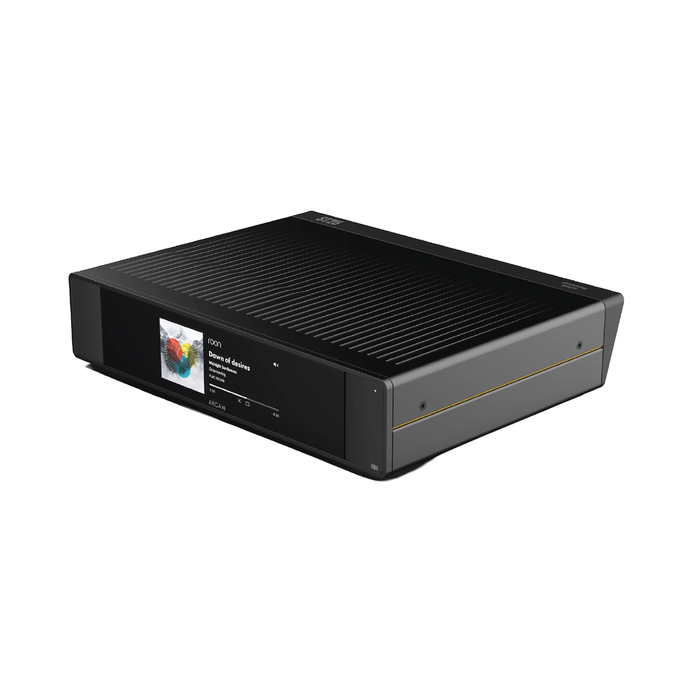

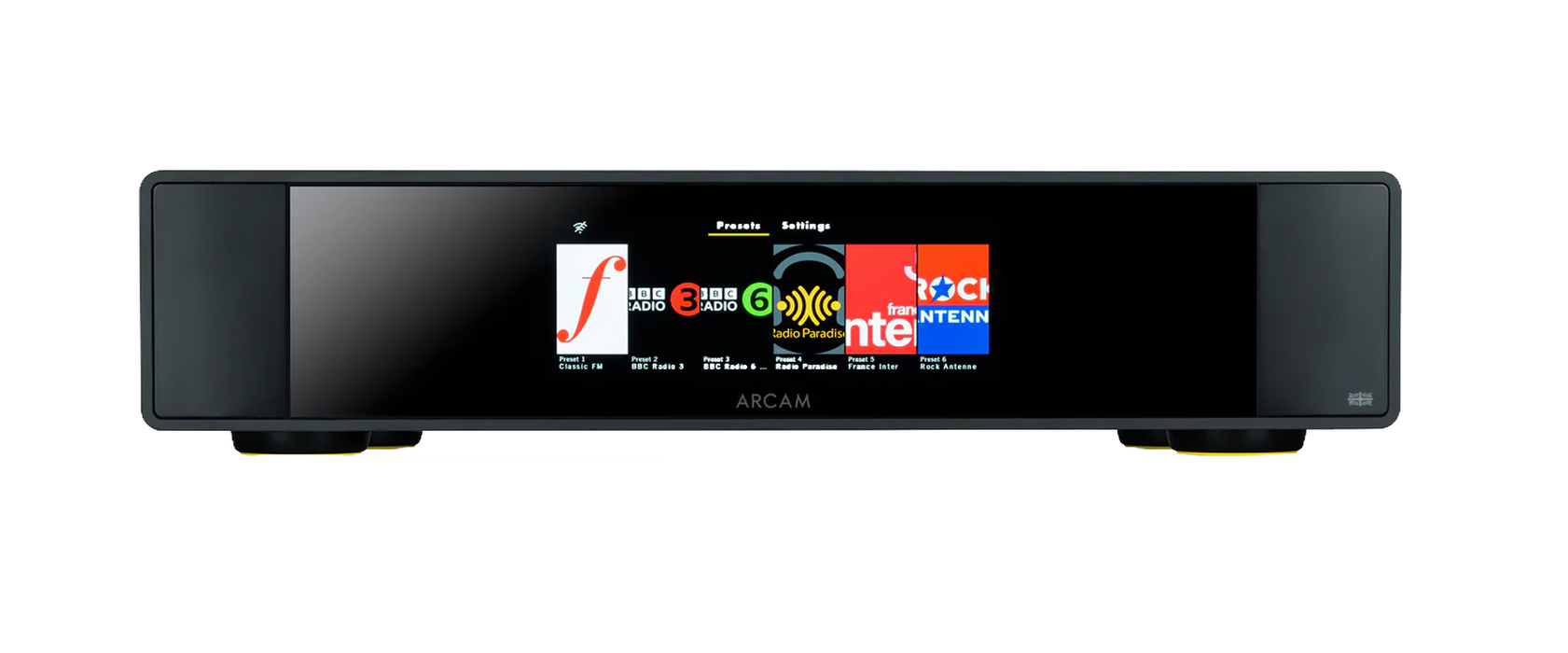

Up front, the ST25 features a new, bonded 6.5" high-resolution display to show album artwork and metadata which is clearly legible from the comfort of your preferred armchair. For playback, an inclusive feature set supports most smart phones and tablets, as well as popular streaming services. Connecting the ST25 to your home network with Wi-Fi is quick and straightforward with our ARCAM Radia App. Once connected, enjoy instant playback using Apple Airplay, Google Cast, Spotify Connect, Tidal Connect, Qobuz Connect, and Roon.

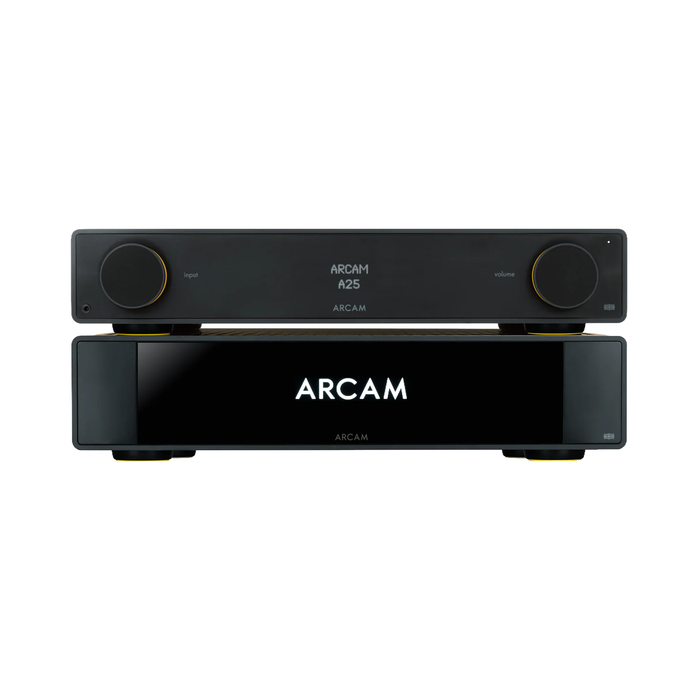

The ARCAM ST25 is the ultimate high resolution audio upgrade for any Hi-Fi system, especially the ARCAM Radia A25. It includes a control link for ARCAM Radia amplifiers, allowing the 2 components to act as one from your device. Sonically, this combination offers pure audio paradise, thanks to the benefits of isolated components with individual power supplies.
Features
- Ultra-high-resolution streaming platform for pristine sound
- Linear power supply for reduced noise and maximum clarity
- High-resolution display for album artwork and metadata
- Designed to pair seamlessly with the ARCAM A25 integrated amplifier
- Streaming support: Apple Airplay, Chromecast, Spotify Connect, and Tidal Connect
- ARCAM Radia App: Manage presets, podcasts, and internet radio
- Roon Ready
- Delivered in plastic-free packaging
Specifications
Services
Works with (apps):
- ARCAM Radia
- Spotify (Connect)
- Tidal (Connect)
- Qobuz (Connect)
- Roon Ready
Works with (services):
- Apple Airplay
- Google Cast
ARCAM Radia supported services (Global):
- Internet Radio
- Podcasts
- UPnP
- USB Media (using USB-A mass storage input)
Audio Section
- Supported media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 256), MP3, MP4, OGG, WMA
- Supported Bit depth: 16, 24, 32
- Supported sample rates (kHz): Up to 384 kHz
- Gapless Playback: Yes

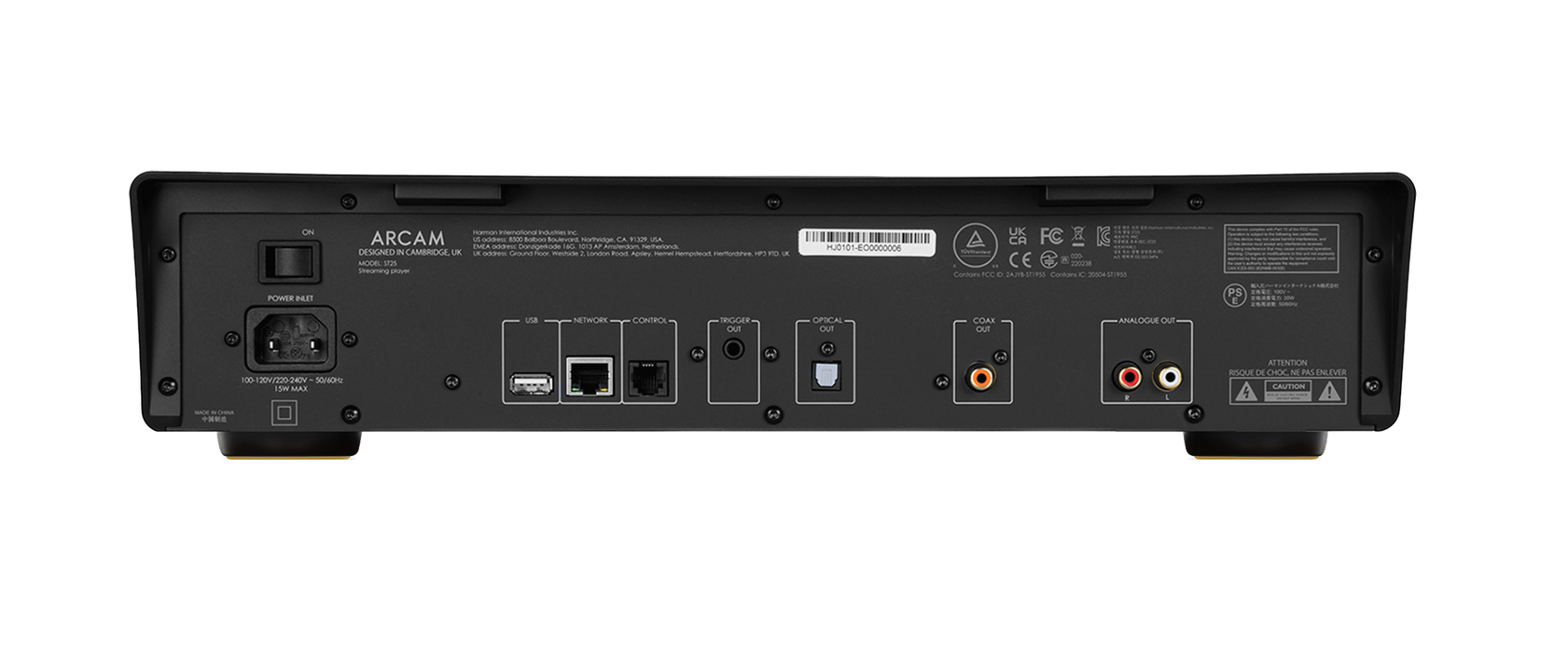

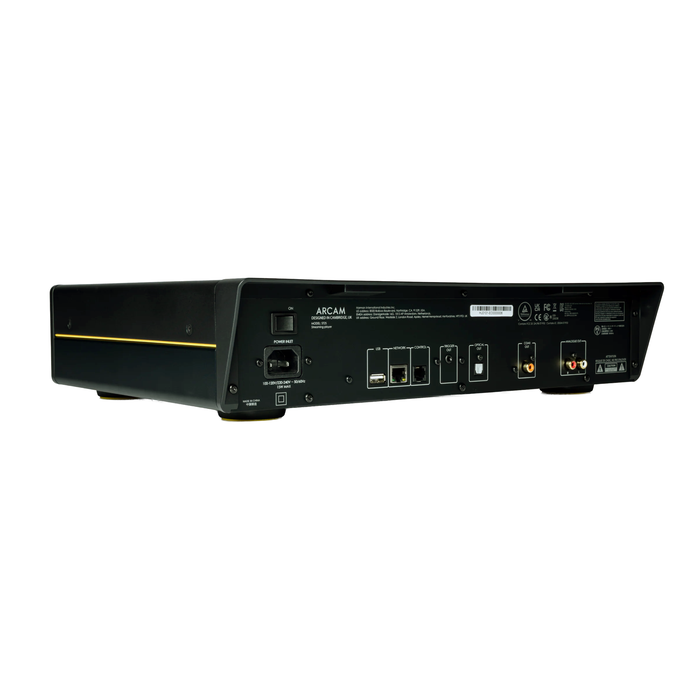

- Digital Audio Outputs 1x Coaxial (RCA), 1x Optical (Toslink)
- Analogue Audio Outputs 1x Stereo (RCA) pair
Wireless Specification
- Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi Transmitter Frequency Range and Power:
- 2400-2483.5 MHz (USA 11 Channels, Europe and Others 13 Channels):
- <20dBm
- 5G Wi-Fi Transmitter Frequency Range and Power:
- 5150-5250 MHz <23dBm
- 5250-5350 MHz <20dBm
- 5470-5725 MHz <20dBm (Not used in China)
- 5725-5850 MHz <14dBm for EU, <33dBm for other regions.
General
- Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
- Power consumption: 15W
- Power consumption (Eco standby): <0.5W
- Dimensions W x D x H (including feet):
- 432 x 329 x 99mm
- Weight (net): 5 kg
- Weight (packed): 7 kg
Supplied accessories:
- Mains lead(s)

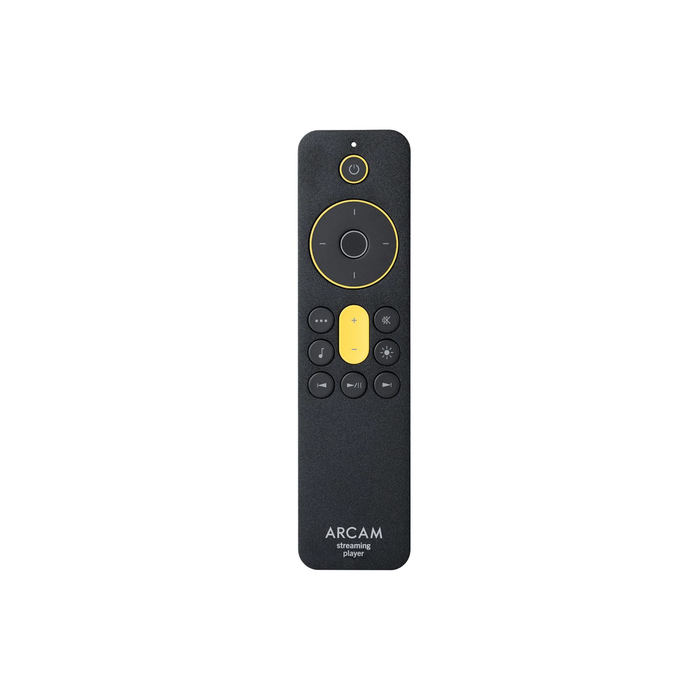

- Remote control with 2 x AAA batteries
- Control Cable
- Quick Start Guide
- Important Safety Instructions
