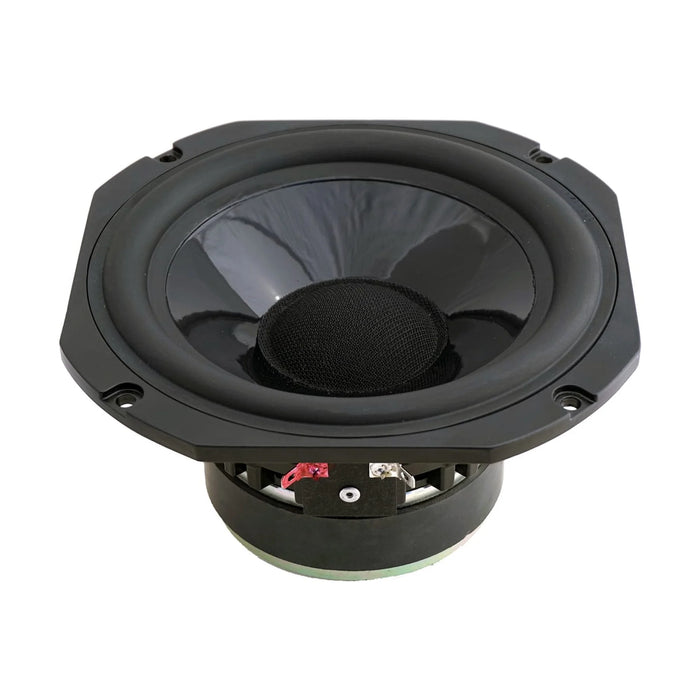

Volt BM165.1 6.5inch MidWoofer
The Volt BM165.1 (6.5") is a critically doped plastic HIPS cone drive unit, developed for bass/mid applications that require minimal colouration and low distortion over a wide frequency range.
It uses a symmetrical field magnet system with an extended pole piece for large linear excursion capability, along with mirrored double rear suspensions that guarantee transient stability at high drive levels.
The Thiele-Small parameters are optimised for relatively small enclosures to give a bass performance that complements the extended midband enabling excellent 2-way systems. The die-cast aluminium chassis is vented below the suspensions to increase cooling airflow to the voice coil.
Features
- Coated Plastic Cone with double low-loss mirrored rear suspensions and die-cast aluminium vented chassis
- Low distortion
- Wide frequency range
- 100 Watt (AES)
- 88dB sensitivity
- Made in UK
Specifications
- Model Number: BM165.1
- Nominal Diameter (mm): 165
- Power Capacity (Watt AES): 100
- Sensitivity (dB/watt/m): 88
- Frequency Range (Hz): 50-3000
- Impedance (Ohms): 8
- Voice Coil Diameter (mm): 38
- Voice Coil Material: Copper
- Suspension: Mirrored Double
- Cone Material: Coated Black HIPS
- Surround: Low Loss Rubber
- Maximum Excursion (mm): 24 (before damage)
- Magnet: Ferrite
- Magnet Assembly Weight (Kg): 1.55
- Volume Displaced (litres): 0.7
- Connection: 5mm Solder Terminals
- Chassis: Diecast Aluminium Vented
Support
Note
- Price is per unit
About Volt Loudspeakers
Since 1979, Volt Loudspeakers have built an international reputation for professionalism and excellence in the best traditions of the British audio industry. Volt’s patented Radial Technology is the brain child of the company’s founder, David Lyth. From PMC, Quested, ProAc, Graham Audio and Kerr Acoustic to Funktion-One, the list of audio brands that use Volt drivers in their high end loudspeakers is an enviable list of Tier A high quality manufacturers who use nothing but the best parts available for their top tier products.
