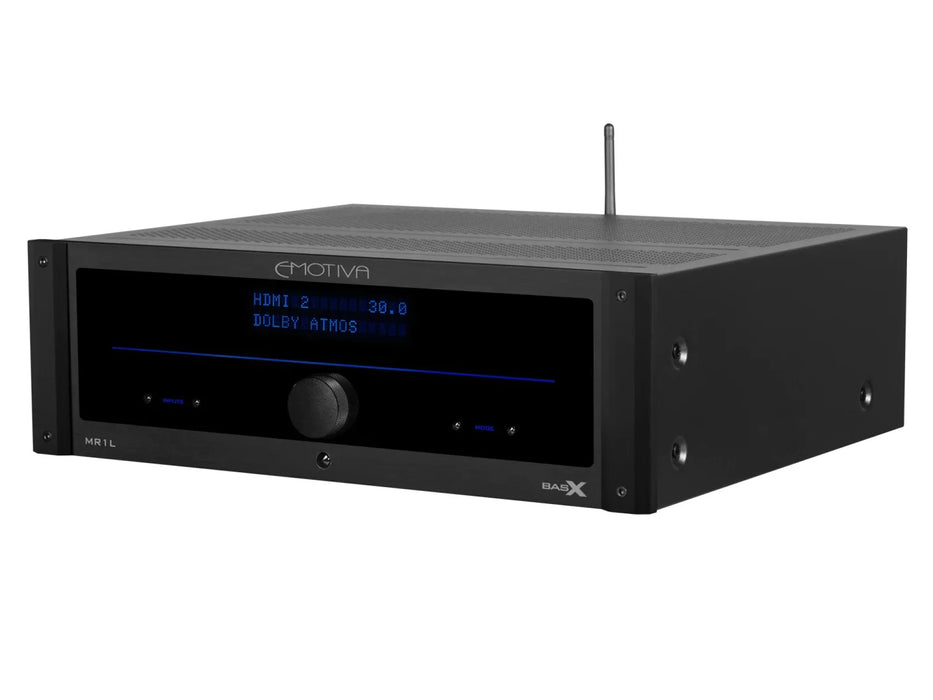

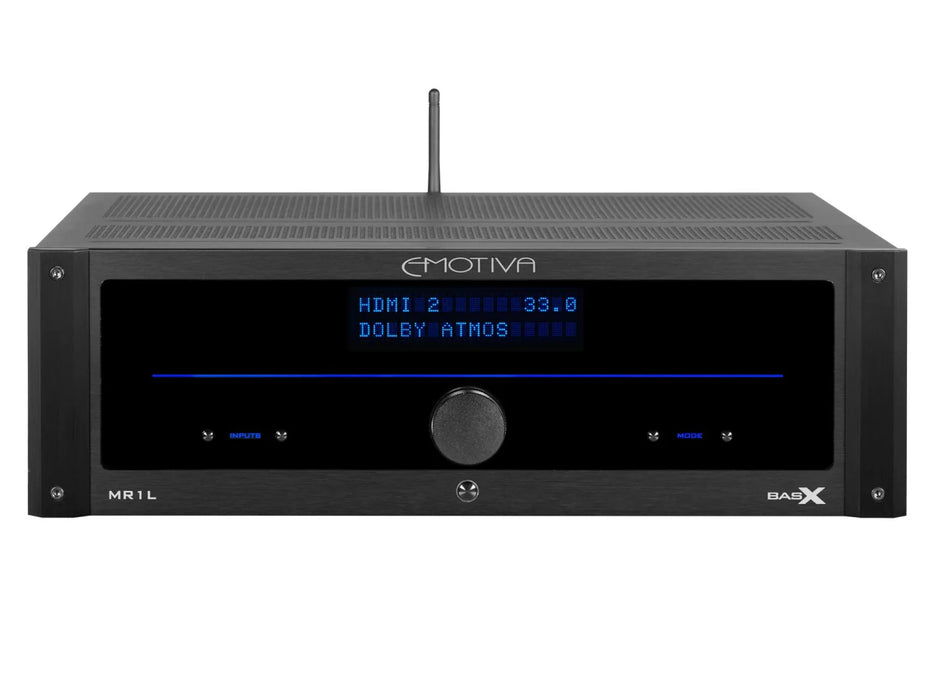

Emotiva BasX MR1L 9.2 Channel AV Receiver

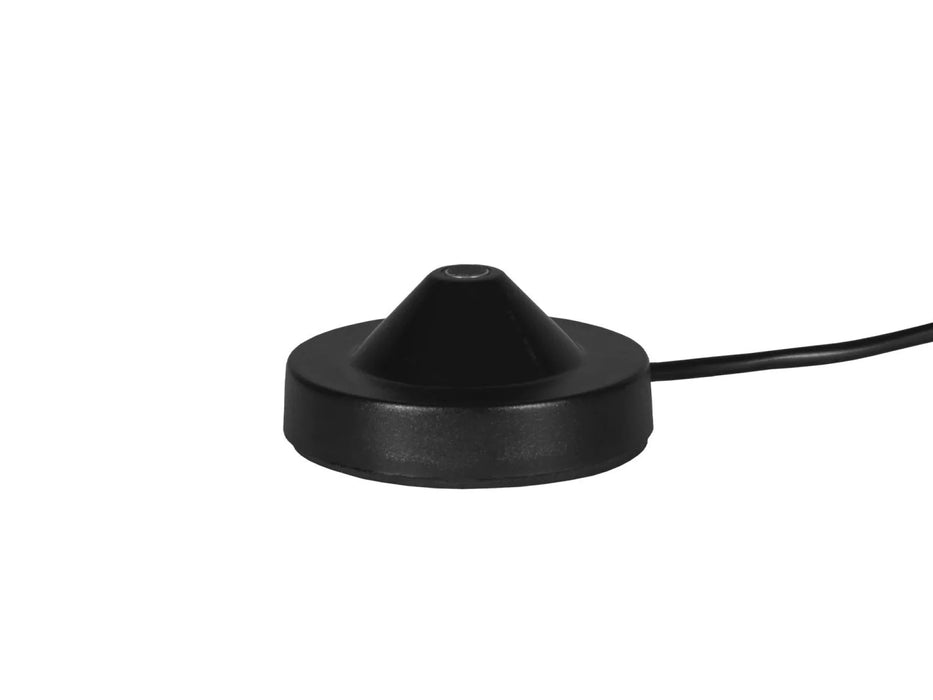

How long have you been waiting for a receiver that can actually deliver the superb uncompromising performance of separate components? The BasX MR1L cinema receiver combines a high performance 13.2 channel immersive surround sound processor, and an audiophile quality 9 channel amplifier, in a single chassis. The processor section of the MR1L supports 4k UHD video, including HDR and Dolby Vision, enhanced ARC (eARC), and the latest Dolby Atmos® and DTS:X™ immersive surround sound formats. The MR1L features six HDMI 2.0b video inputs, all of which support 4k UHD HDR video, and includes support for enhanced ARC (eARC). Included with the MR1L is a measurement microphone and the latest version of EmoQ, our well-regarded automatic room correction system. The MR1L also offers multiple analog and digital audio inputs, and an integrated Bluetooth receiver with aptX.

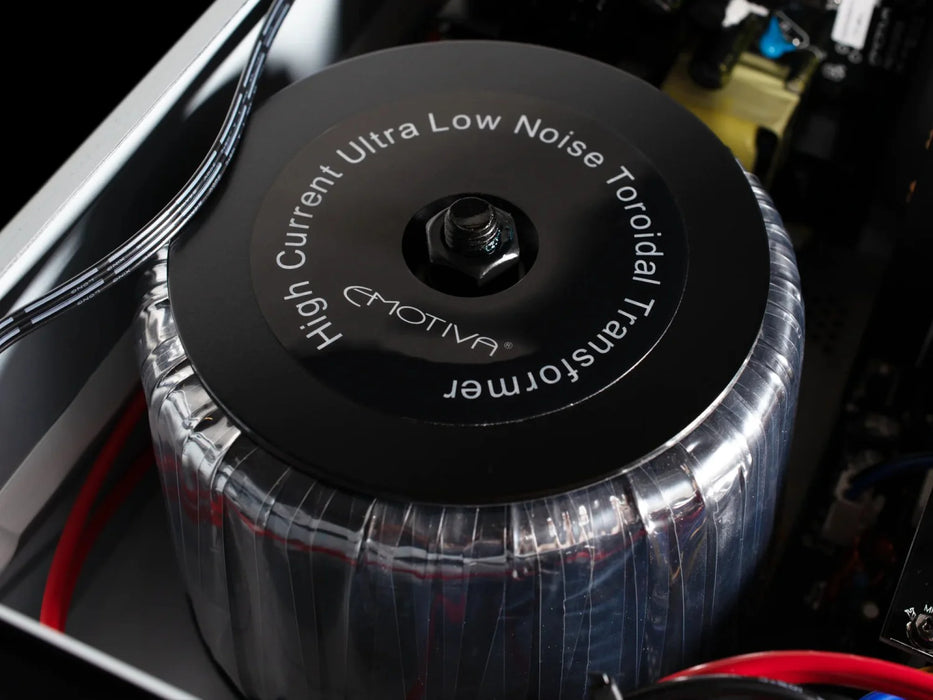

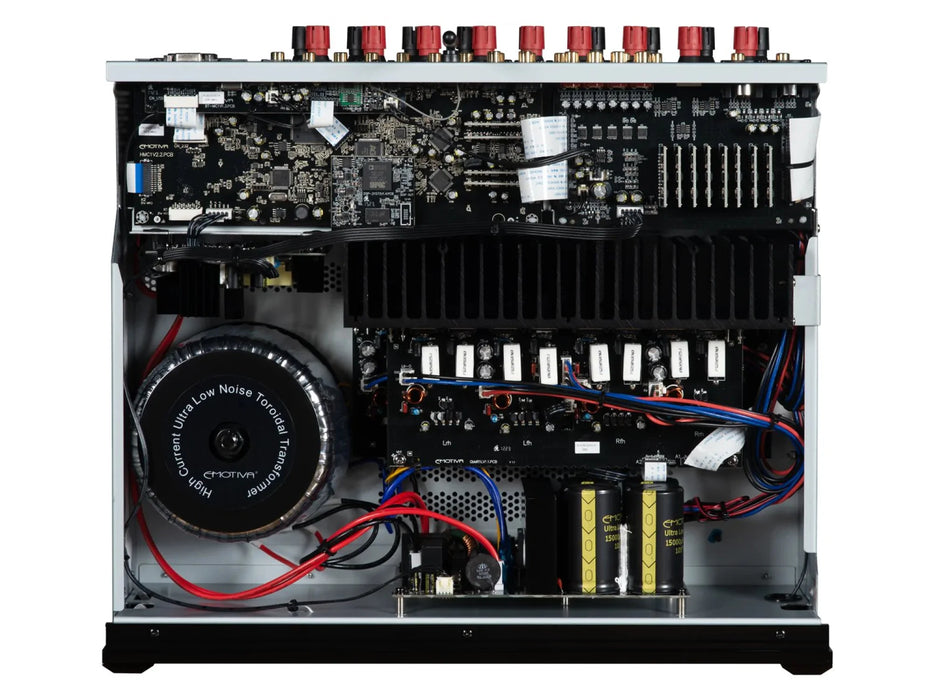

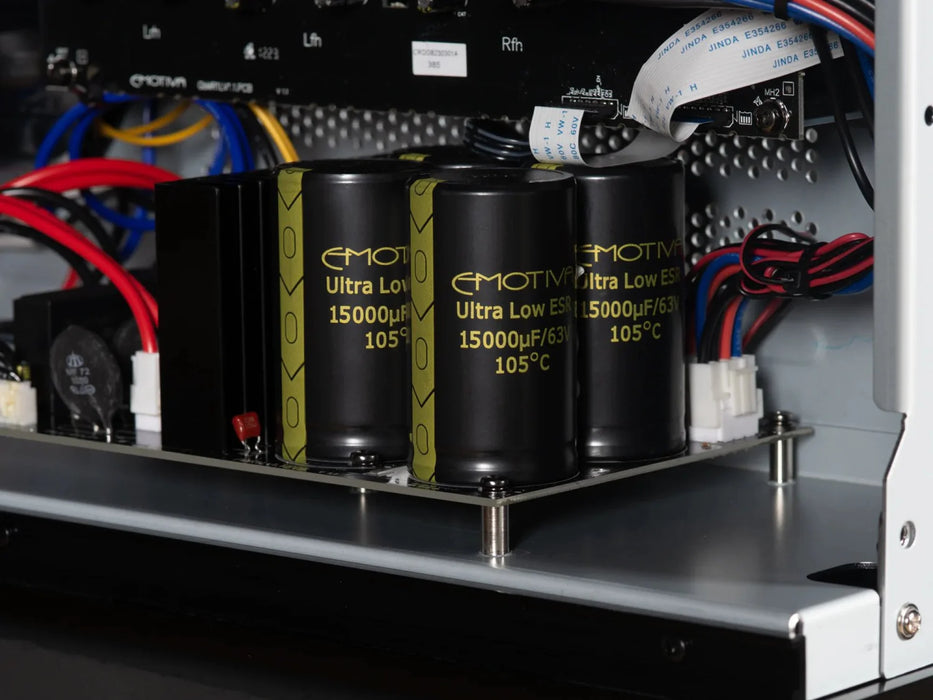

The amplifier section of the BasX MR1L features 9 channels of audiophile-grade Class A/B amplification, powered by a massive 660 VA toroidal transformer, to deliver superb sound quality and cool reliable operation. The MR1L exhibits complete control over difficult loads and low impedance speakers, leaving less capable receivers gasping for air. The MR1L also includes a full set of line level 13.2 channel preamp outputs, and of course, the amplifier section can be totally disabled if you wish to use the MR1L as a dedicated surround sound processor.
The BasX MR1L is a true audiophile component, designed and built by professionals to deliver the outstanding performance that both audiophiles and casual listeners can appreciate. The MR1L also features precision high- speed video switches that route video directly from the selected input to the output without any extraneous processing, ensuring that you’ll continue to get the absolute best possible picture quality from your HD and 4k UHD video sources along with support for both ARC and Enhanced eARC. The BasX MR1L delivers a truly stellar video and listening experience with incredible power, build quality, and ease of use.
Features
- Enhanced Arc Support The MRIL provides full support for standard ARC (Audio Return Channel) for devices that don't have eARC support. For devices that support the new eARC (Enhanced ARC) standard the MR1 will detect this and enable eARC support. Note: Only HDMI Output #1 on the MR1 supports ARC and eARC. Note: On most TV sets only one HDMI Input supports eARC, so be sure and connect the MRl to that input. In addition to this, on many TV sets, eARC must specifically be enabled, so be sure that eARC is enabled in your TV's configuration menu.
-
Active HDMI Output Switching As defined in the HDMI standard, if you have two devices with different video capabilities connected to the two outputs on the MRIL, and both are on, your video source will negotiate a video format supported by both, and the MRIL will send that same video signal to both devices. So, for example, if you have a 4k TV, and a 1080p TV, and only the 4k TV is turned on, it will receive a 4k signal; however, if both TVs are turned on, then both will receive a 1080p video signal (because that is the highest resolution format that both TVs support). The same requirement is also true for some other features - like HDR. Unfortunately, many modern TVs and projectors do not report their status correctly to the processor and source device. As a result of this, for example, you may find that you don't get 4k video on your 4k TV set unless the 1080p TV set is physically disconnected (unplugged). The MRIL has a special feature that enables you to avoid this sort of problem. On the MRIL you have the option to temporarily disable each HDMI Output individually. So, in the example above, by disabling the HDMI Output connected to the 1080p TV set when that set isn't in use, you can prevent it from limiting the 4k video signal being sent to your 4k set.
-

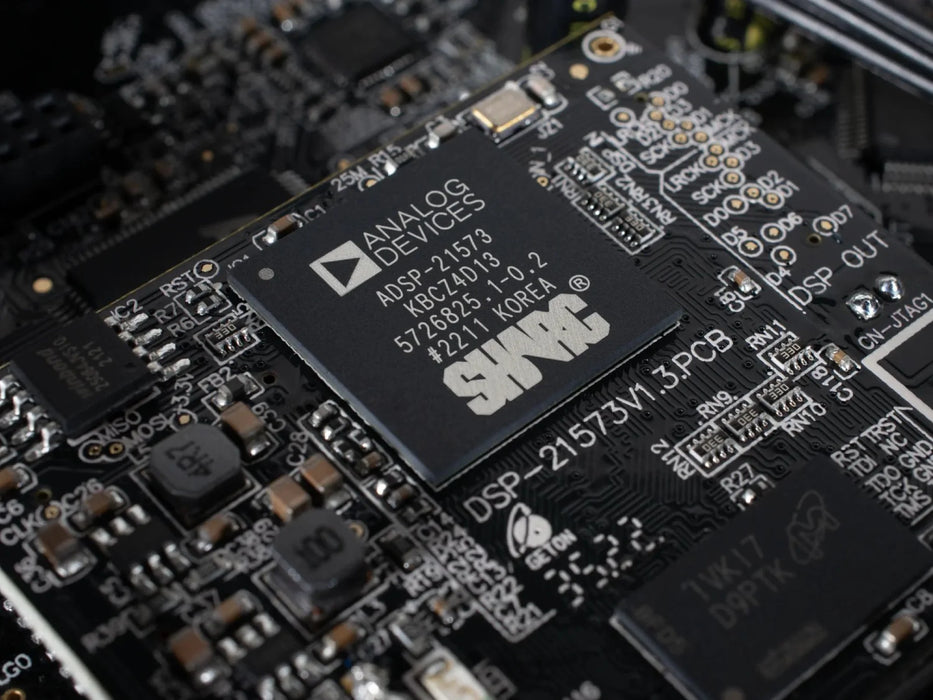

Incredibly Detailed Surround Sound and Video Performance The MRIL features 6 HDMI 2.0b video inputs, all of which support 4K UHD HDR video formats including eARC. Powerful Analog Devices SHARC DSP supports the latest Dolby Atmos, Dolby Surround, DTS, DTS:X. DTS Neural X, and other popular modes.
-
Advanced EMO-Q° Automatic Room Correction The MR1L includes the latest and most advanced version of our EMO-Q Automatic Room Correction System. EMO-Q° now displays a visual interface which includes graphs of both the measured and corrected room response. Channels can now also be tested, and the results adjusted, individually.
-
Audiophile Quality Class A/B Amplifiers The MRIL includes both audiophile quality Class A/B amplifiers, which feature advanced power supply topology for optimum efficiency, and line level analog preamp outputs. This enables the MRIL to be used with a combination of passive loudspeakers and external amplifiers, The BasX MRIL Is a true audiophile component, designed and built by professionals to deliver the outstanding performance that both audiophiles and casual listeners can appreciate

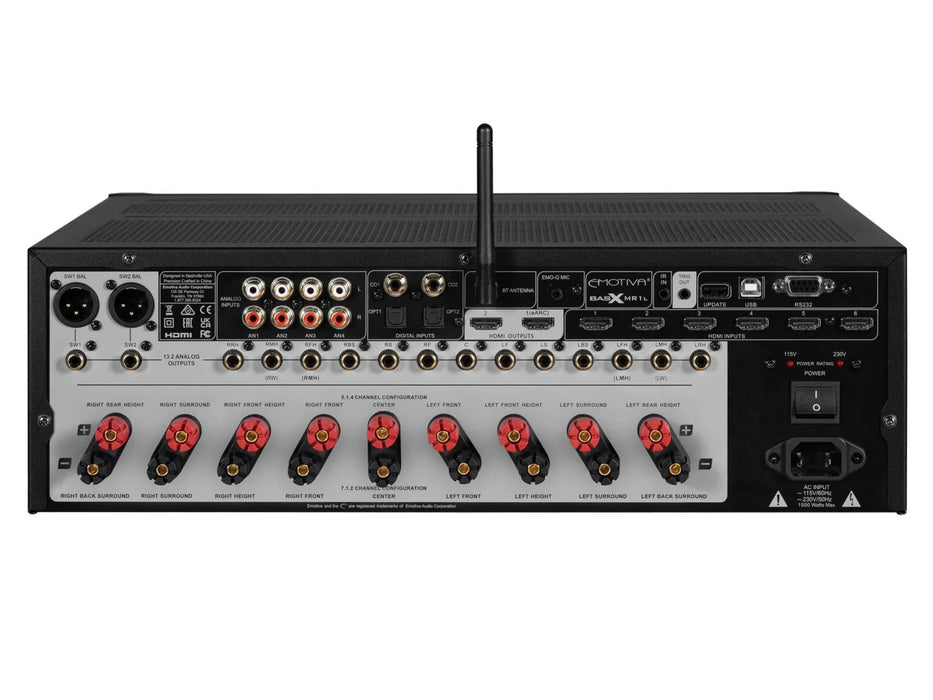

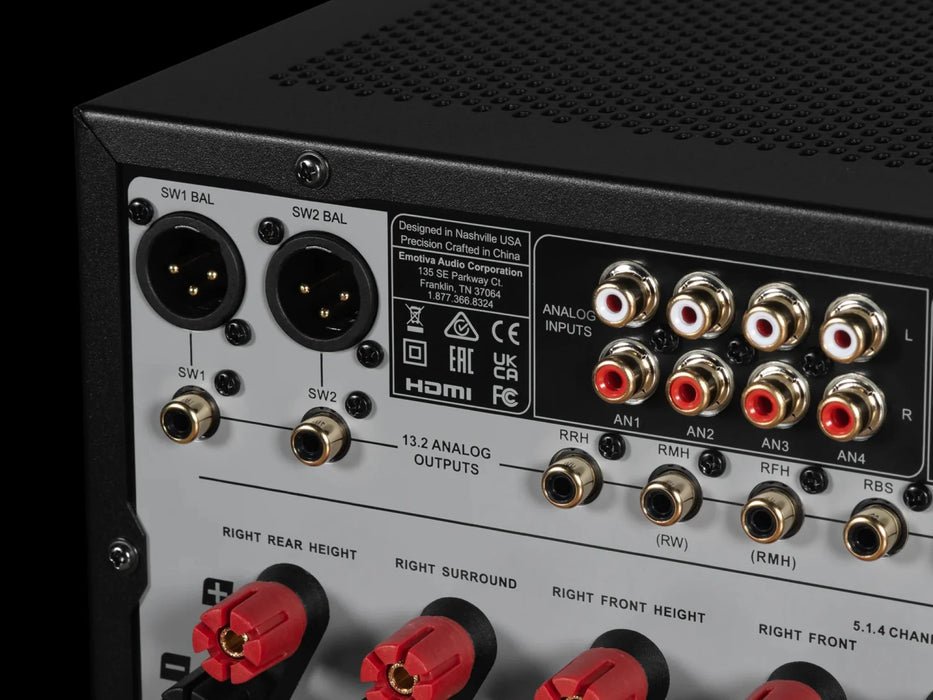

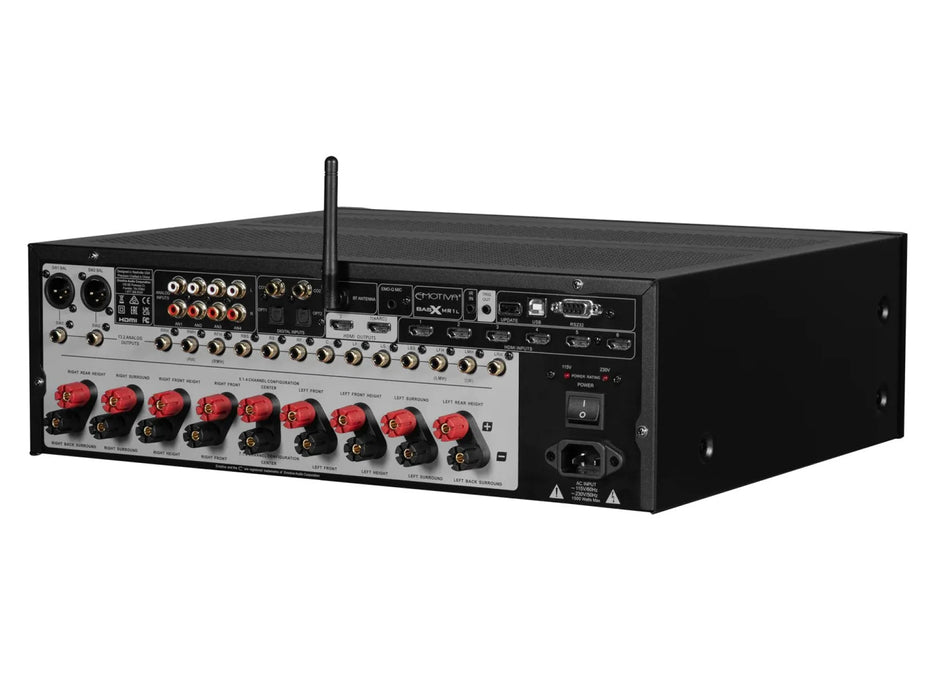

Connectivity
Video Inputs and Outputs:
- (6) HDMI 2.0b compliant HDMI video inputs (all with full support for 4k UHD video, HDCP 2.2, HDR10, HDR10+, and Dolby Vision).
- (2) HDMI 2.0b compliant HDMI video outputs (primary output supports both ARC and eARC).
Audio Inputs:
- (4) stereo unbalanced analog audio inputs.
- (2) S/PDIF coaxial digital audio inputs.
- (2) Toslink (optical) digital audio inputs.
- (1) USB Audio (DAC) input.
- (1) Bluetooth audio input (internal with rear panel antenna).
Audio Outputs:
- (1) set of 13.2 channel unbalanced audio main outputs.
- (1) set of 9 channel speaker outputs
- (2) balanced subwoofer outputs (in parallel with main sub outputs).
Other Inputs and Outputs:

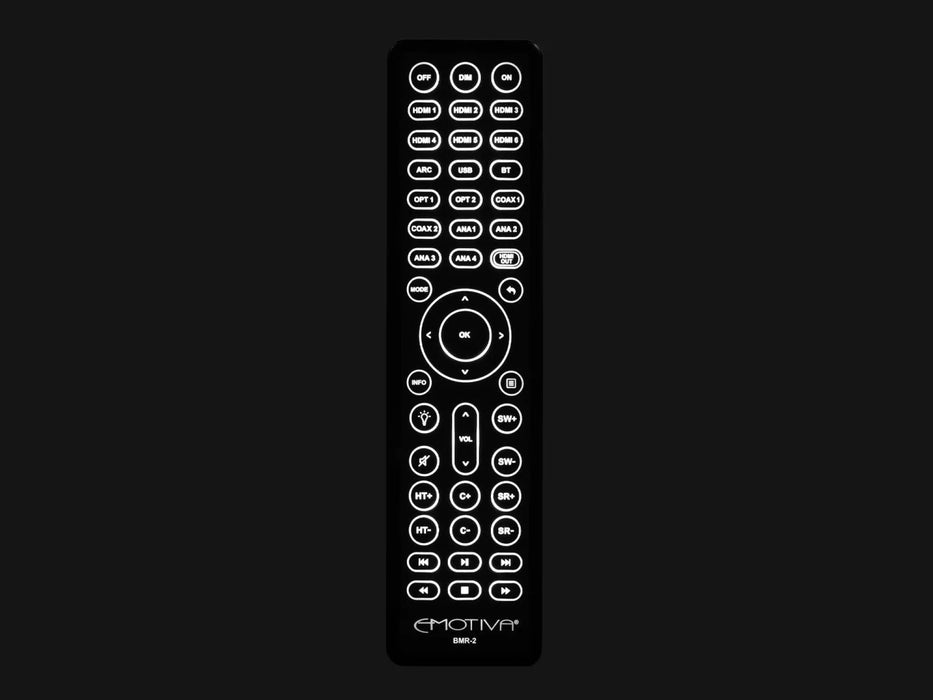

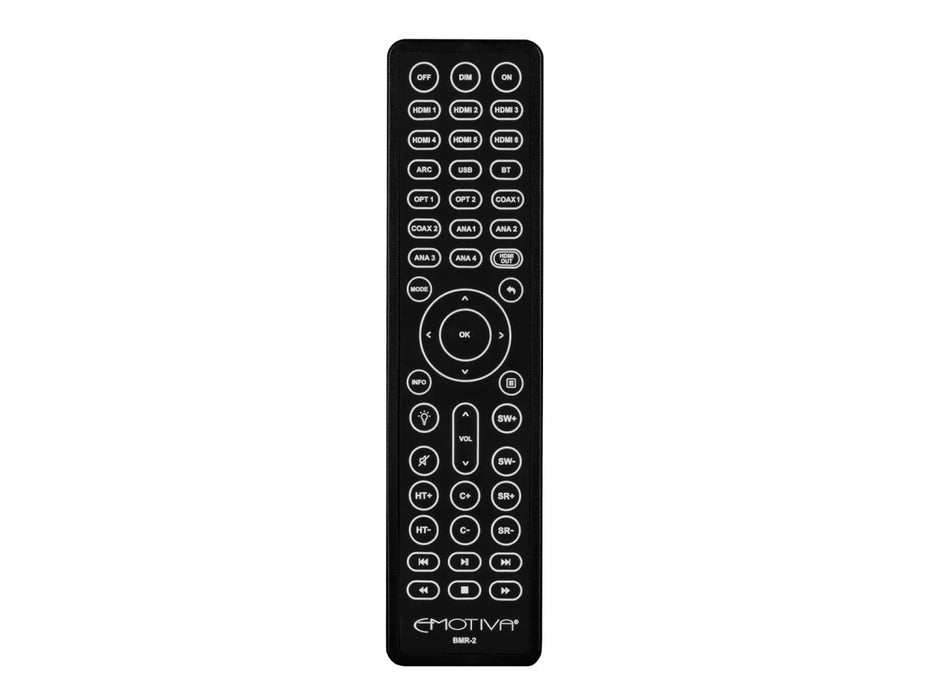

- (1) IR remote control signal input.
- (1) RS-232 serial remote-control port
- (1) Trigger output (programmable).
- (1) USB data input (reserved for firmware updates).
Audio Formats and Modes Supported
Surround Sound Audio Formats:
- Dolby Atmos
- Dolby TrueHD
- Dolby Surround
- DTS:X
- DTS HD Master Audio
- DTS
Surround Sound Upmixers:
- Dolby Surround Upmixer (DSU)
- DTS Neural:X
Sound Field and Processing Options:
- Pure
- Direct
- Stereo
- Multi-Channel
- Dolby Upmix
- DTS Neural:X
Room Correction
Automatic Room Correction
- EmoQ Second Generation Automatic Room Correction (with graphical interface)
Manual Room Correction (EQ): Three Separate Manual Speaker Presets - Each Of Which Offers...
- 11 Bands of Full Parametric EQ: Left Front and Right Front
- 11 Bands of Full Parametric EQ: Center Channel
- 7 Bands of Full Parametric EQ: Surround Channels
- 7 Bands of Full Parametric EQ: Top Channels
- 5 Bands of Full Parametric EQ: Subwoofers
Specifications
- Line Level Analog Outputs (Preamp Outputs)
- Rated Output Voltage: +6 dBV (2 VRMS)
- Frequency Response: 20 Hz to 20 kHz +/- 0.05 dB
- Total Harmonic Distortion: < 0.0025% @ 1 kHz < 0.05% from 20 Hz to 20 kHz
- Signal to Noise Ratio: > 100 dB @ 1 kHZ
- Crosstalk: < 85 dB @ 10 kHZ
- Speaker Outputs (Amplifier Section)
- Power Output Per Channel; ONE channel driven: 150 watts RMS / channel @ 8 Ohms; 220 watts RMS / channel @ 4 Ohms; < 0.1% THD
- Power Output Per Channel; TWO channels driven: 140 watts RMS / channel @ 8 Ohms; 200 watts RMS / channel @ 4 Ohms; < 0.1% THD
- Power Output Per Channel; FIVE channels driven: 110 watts RMS / channel @ 8 Ohms; 140 watts RMS / channel @ 4 Ohms; < 0.1% THD
- Power Output Per Channel; NINE channels driven: 85 watts RMS / channel @ 8 Ohms; 100 watts RMS / channel @ 4 Ohms; < 0.1% THD
- Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ 0 / - 0.15 dB) or better
- Broad Band Frequency Response: 5 Hz to 80 kHz (+ 0 / - 3 dB)
- THD + Noise: < 0.02% (A-weighted); at rated power; 1 kHz; 8 Ohms
- Signal To Noise Ratio (8 Ohm Load): > 105 dB or better; referenced to rated power (A-weighted)
- Minimum Load Impedance: 4 Ohms (one 4 Ohm speaker or two paralleled 8 Ohm speakers)
- Damping Factor: > 400
- Power Requirements: 115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected)
- Dimensions: 17” wide x 5+1/2” high x 14” deep (without connectors), 20" wide x 10" high x 22" deep
- Weight: 33 lbs. (unboxed), 42 lbs. (boxed)
